Specifications
Brand Name :
YEAWEY
Model Number :
CQD20A-30
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
2Ton small load electric reach truck
Load capacity :
2000 kgs
Lift height :
3000mm
Mast type :
Duplex 2 stage
Battery :
24V/210Ah
Service weight :
2150 kgs
Description

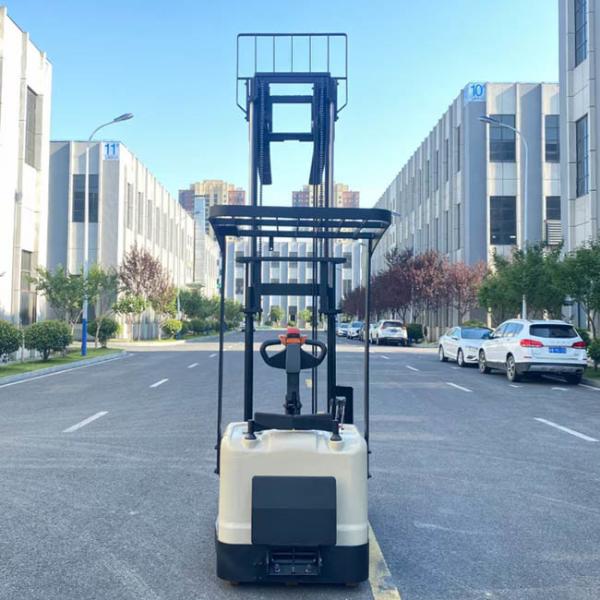

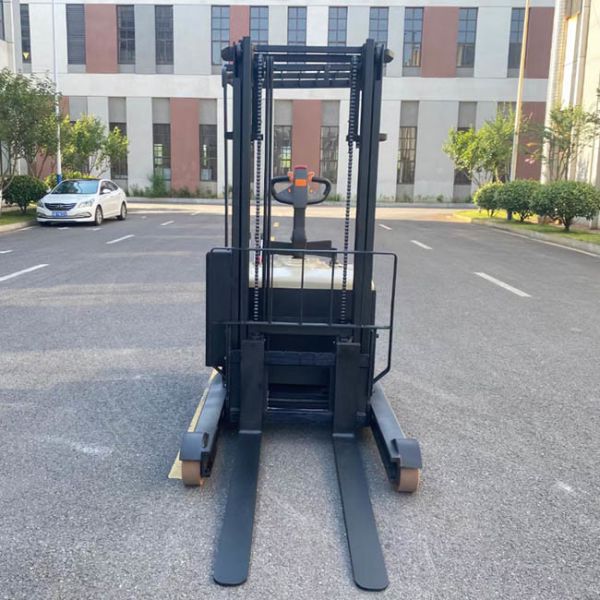

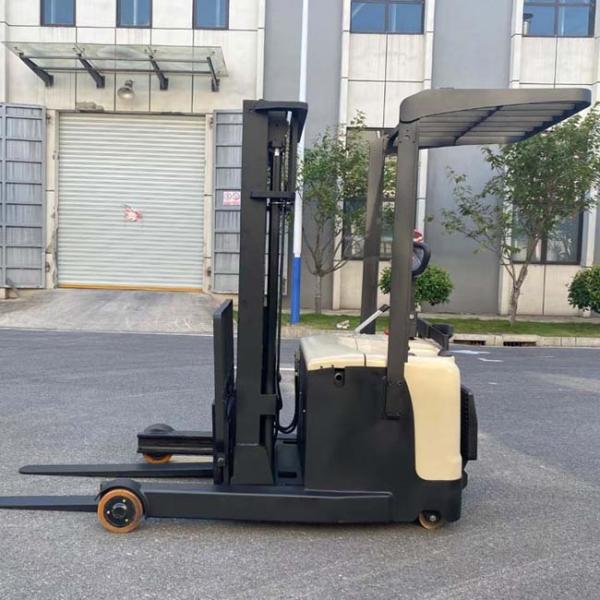

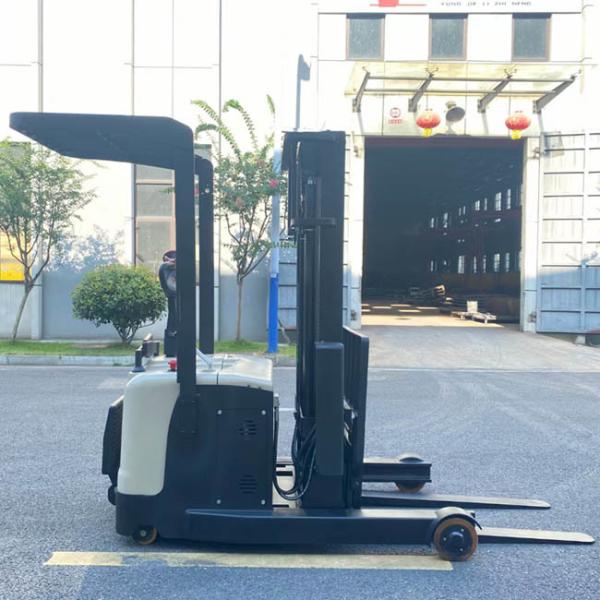

2000kg CQD20A-35 2T small load electric reach truck warehouse use standing type

Main information:

Load capacity: 2000kg

Standing type

With overhead guard

AC controller, AC motors
24/210Ah lead acid battery
Mast type: Duplex mast
Lift height: 3000mm

Item Model CQD20A
1 Power type Battery
2 Driving mode Stand-on type
3 Rated load kg 2000
4 Load center distance mm 500
5 Front overhang distance mm 145
6 Wheelbase mm 1500
7 Vehicle weight kg 2150
8 Tire type Polyurethane
9 Bearing wheel mm 210*85
10 Drive wheel mm 230*75
11 Auxiliary wheel mm 130*55
12 Track width, drive side mm 684
13 Track width, bearing side mm 990
14 Height of mast closed mm 1830
16 Fork tilt forward and backward ° 3/5
17 Lifting height mm 3000
18 Max. height of mast open mm 3485
19 Panel height mm 195
20 Leg height mm 235
21 Overall length (pedal deployment) mm 2445/2950
22 Overall width mm 900/1084
23 Fork size mm 1070/122/40
24 Shelf width mm 1000
25 Outside width of fork mm 240-700
26 Inner spacing of the legs mm 802
27 Forward position mm 550
28 Mast clearance mm 70
29 Turning radius mm 1785/2200
30 Driving speed(full load/ no load) km/h 4.0/5.5
31 Lifting speed(full load/ no load) mm/s 75/150
32 Descent speed(full load/ no load) mm/s 240/105
33 Max. climbing capacity(full load/ no load) % 5/10
34 Braking mode Electromagnetic type
35 Drive motor power kw 2.2
36 Lifting motor power kw 3
37 Battery, voltage/ rated capacity v/ah 24/210AH
38 Battery weight kg 200
39 Steering system Electronic steering
40 Braking system Electromagnetic braking
