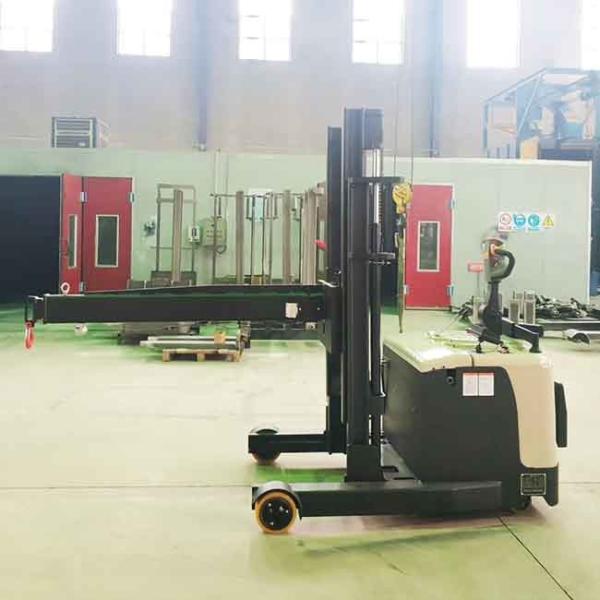

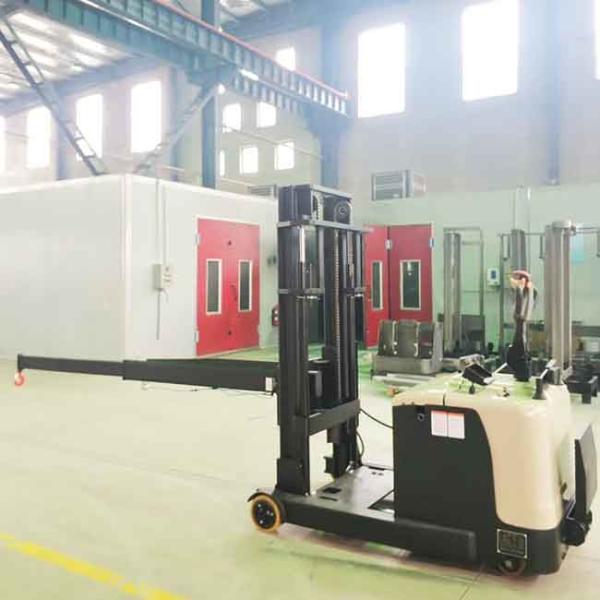

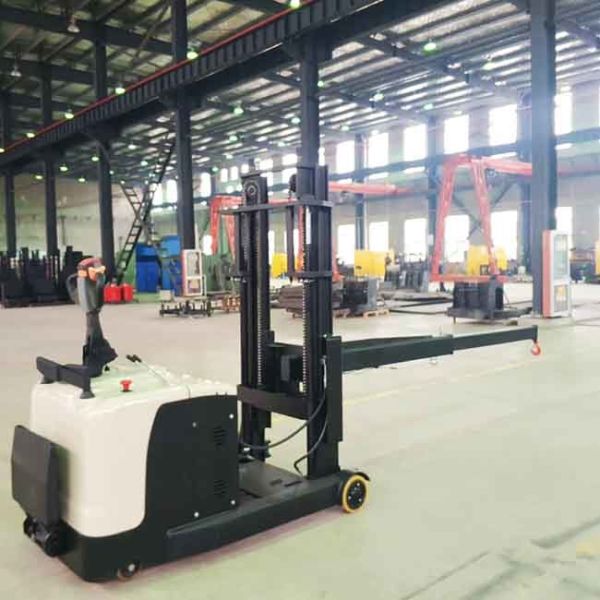

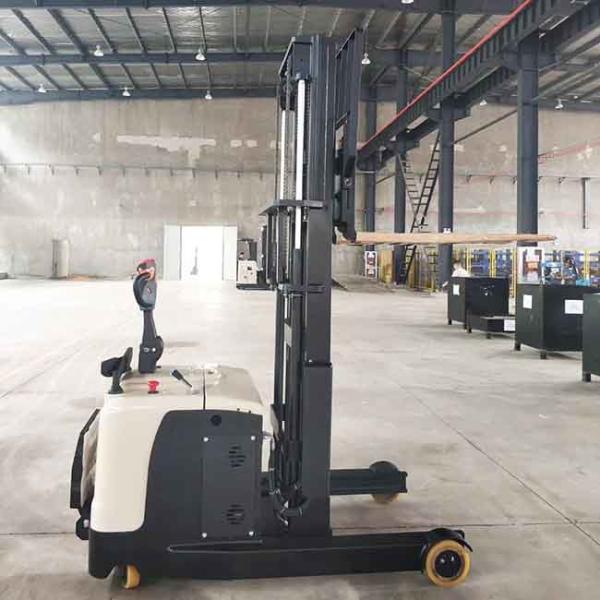

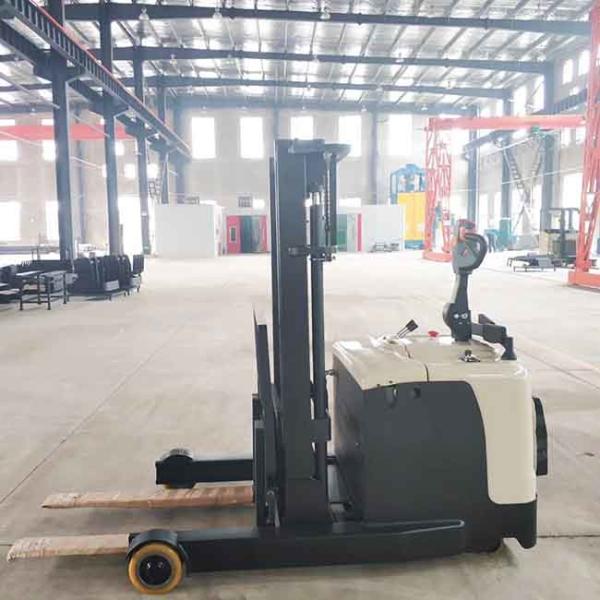

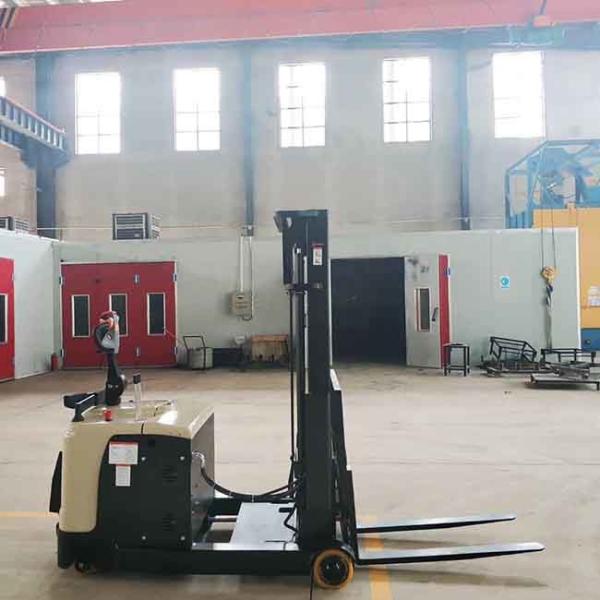

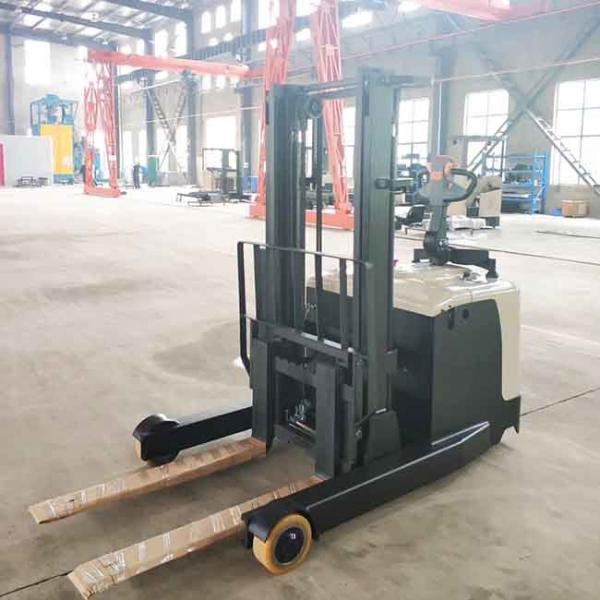

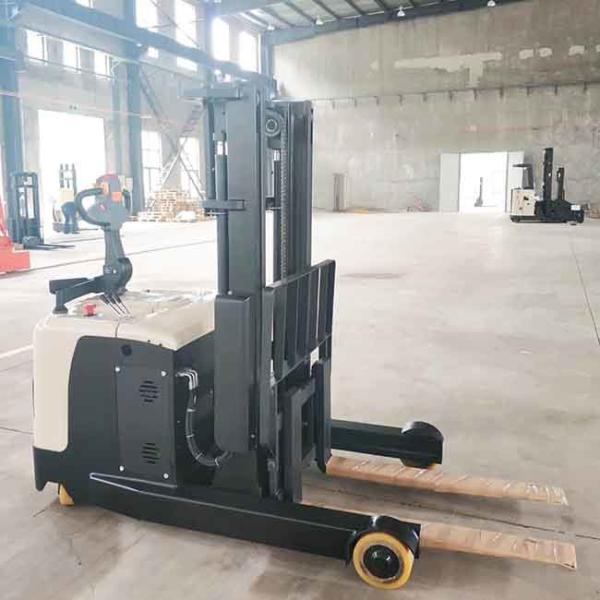

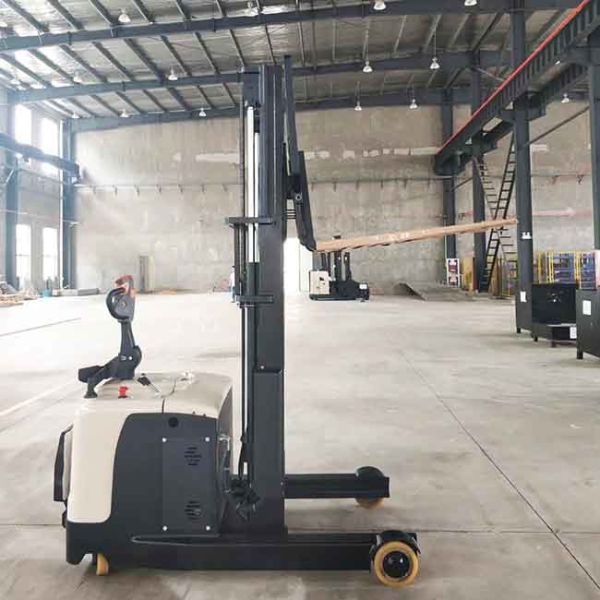

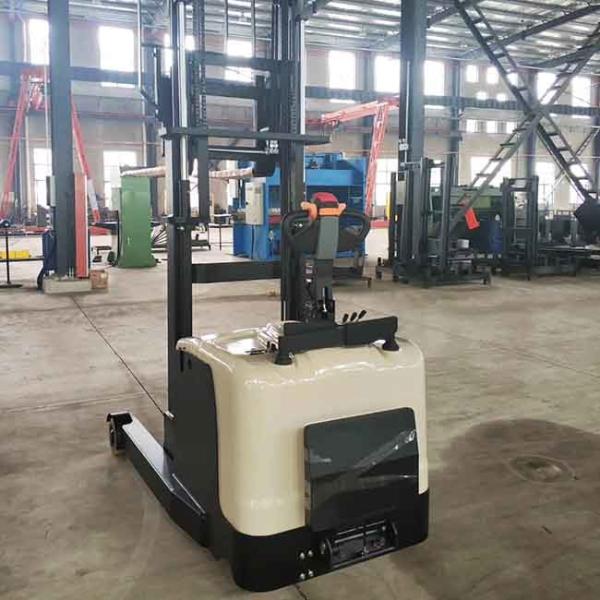

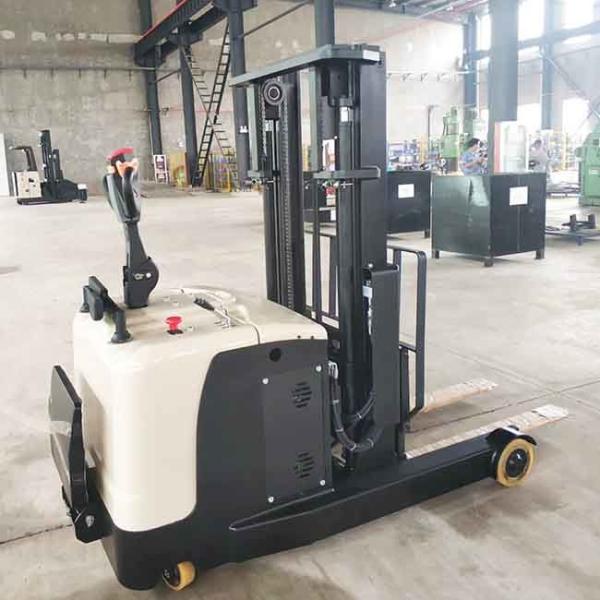

1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
Specifications
Brand Name :
YEAWEY
Model Number :
CQD15A-25
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1.5T small load electric reach truck
Load capacity :
1500 kgs
Lift height :
2.50m
Mast type :
Duplex
Battery :
24V/210Ah
Service weight :
2150 kgs
Description

1500kg CQD15A-25 1.5Ton small load electric reach truck warehouse use standing type

Main information:

Load capacity: 1500kg

Side standing type

Chinese AC controller, AC motors
24V/210Ah lead acid battery
Mast type: Triplex mast
Lift height: 4.5m
Attachment:

The walk Electric Pallet Truck is the ideal choice for material transportation in short-distance or trailer loading/unloading.

It is developed based on traditional pallet truck targeting to markets such as North American market. It is equipped with AC drive unit, Curtis Controller and maintenance-free battery and built-in charger.

1)Ergonomic, Compact and Safe Long Tiller design

2)High Performance Maintenance-free AC Drive Unit

3)Bigger Ground Clearance for Tough-ground Applications

4)Competitive Cost with Excellent Performance

Item Model CQD15A
1 Power type Battery
2 Driving mode Stand-on type
3 Rated load kg 1500
4 Load center distance mm 500
5 Front overhang distance mm 145
6 Wheelbase mm 1400
7 Vehicle weight kg 2000
8 Tire type Polyurethane
9 Bearing wheel mm 210*85
10 Drive wheel mm 230*75
11 Auxiliary wheel mm 130*55
12 Track width, drive side mm 684
13 Track width, bearing side mm 990
14 Height of mast closed mm 1830
16 Fork tilt forward and backward ° 3/5
17 Lifting height mm 2500
18 Max. height of mast open mm 3485
19 Panel height mm 195
20 Leg height mm 235
21 Overall length (pedal deployment) mm 2345/2850
22 Overall width mm 900/1084
23 Fork size mm 1070/100/35
24 Shelf width mm 1000
25 Outside width of fork mm 240-700
26 Inner spacing of the legs mm 802
27 Forward position mm 450
28 Mast clearance mm 70
29 Turning radius mm 1670/2100
30 Driving speed(full load/ no load) km/h 4.0/5.5
31 Lifting speed(full load/ no load) mm/s 80/150
32 Descent speed(full load/ no load) mm/s 200/105
33 Max. climbing capacity(full load/ no load) % 5/10
34 Braking mode Electromagnetic type
35 Drive motor power kw 1.5
36 Lifting motor power kw 3
37 Battery, voltage/ rated capacity v/ah 24/210
38 Battery weight kg 200
39 Steering system Electronic steering
40 Braking system Electromagnetic braking

1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach

1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach

1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach

1.5Ton Walk Behind Reach Truck 1500kg CQD15A-25 Walkie Reach
