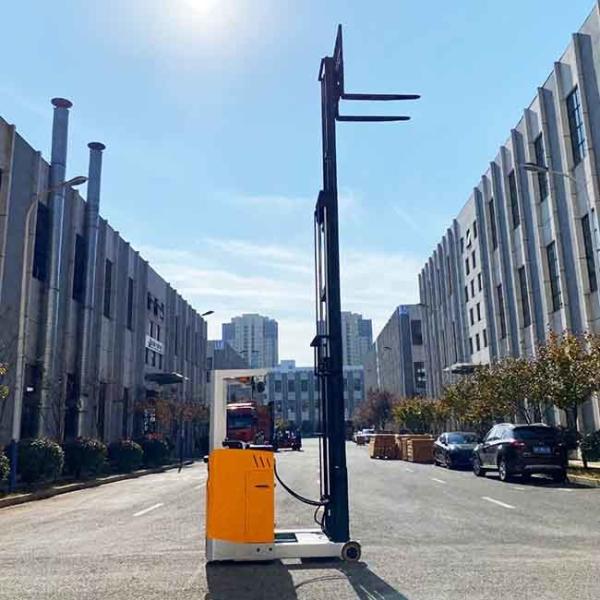

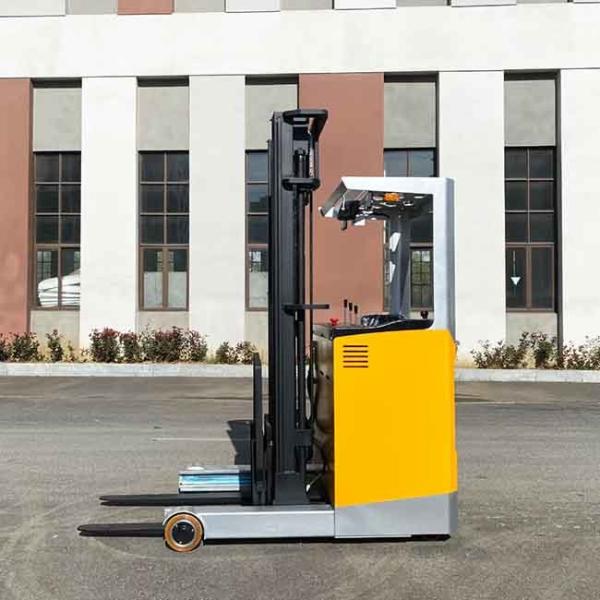

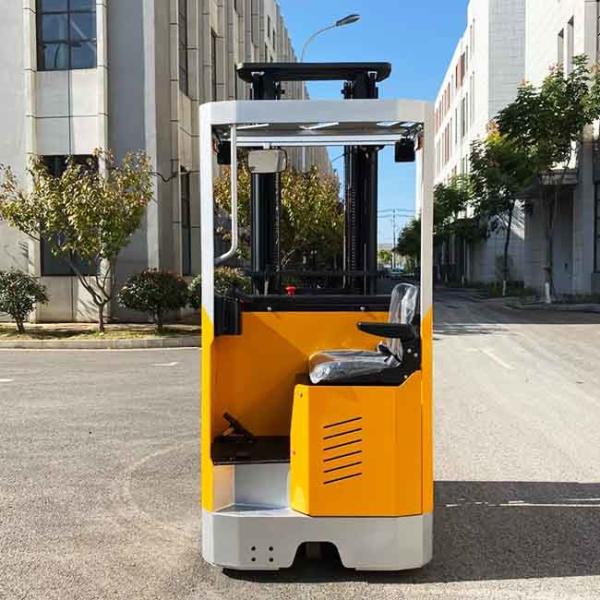

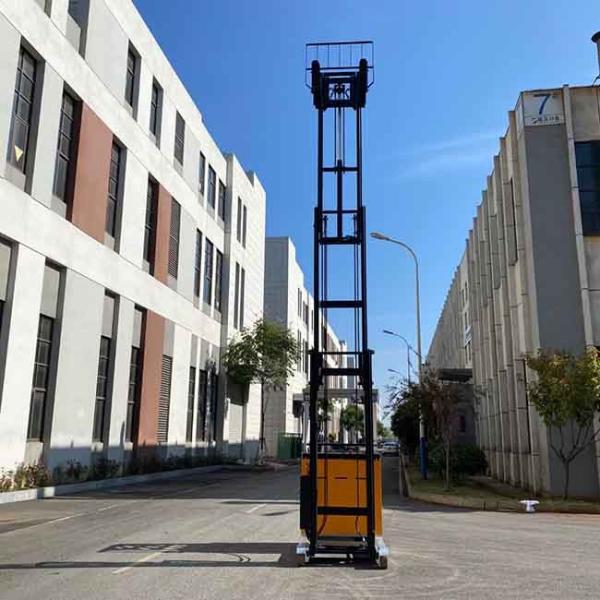

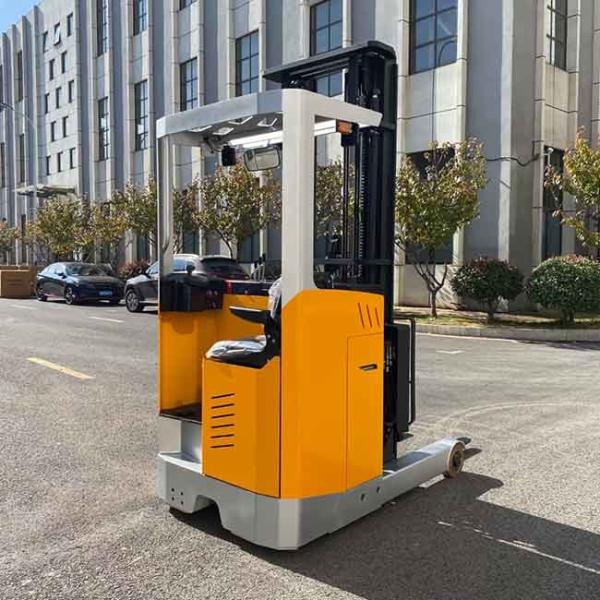

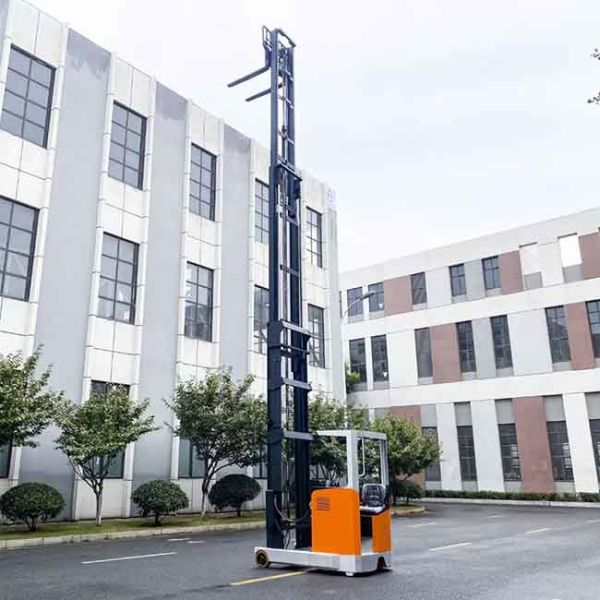

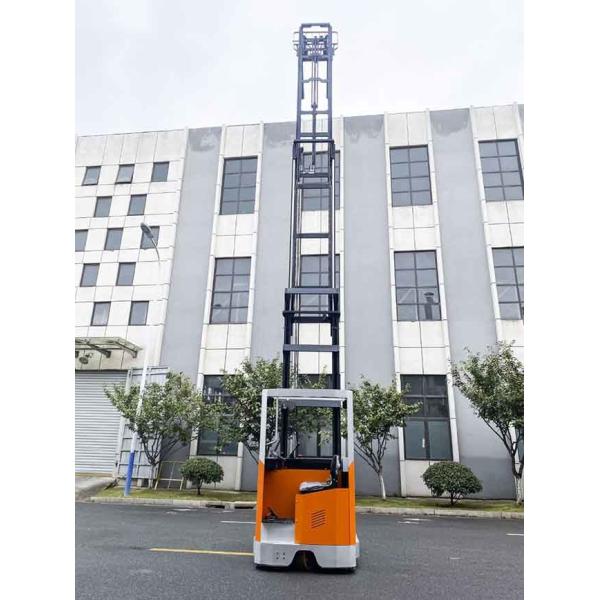

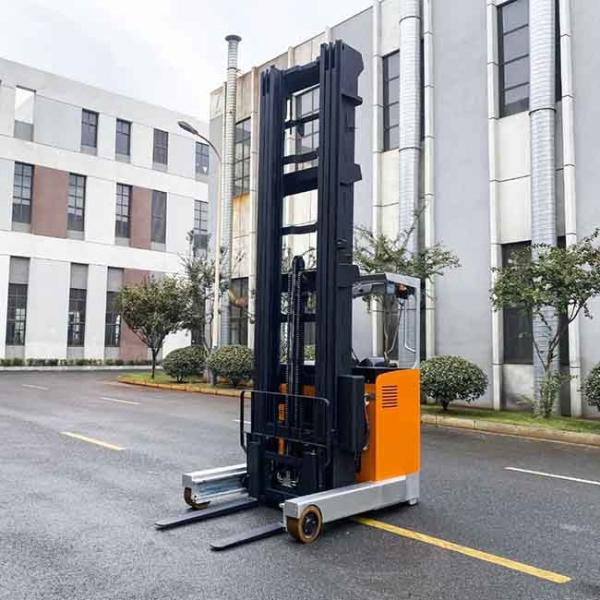

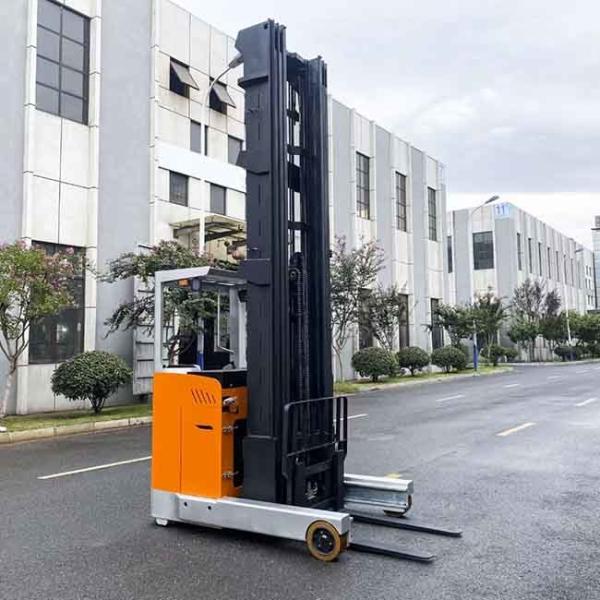

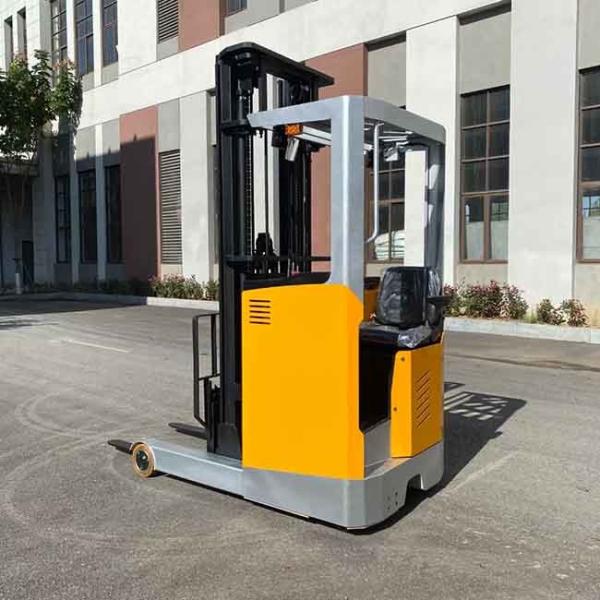

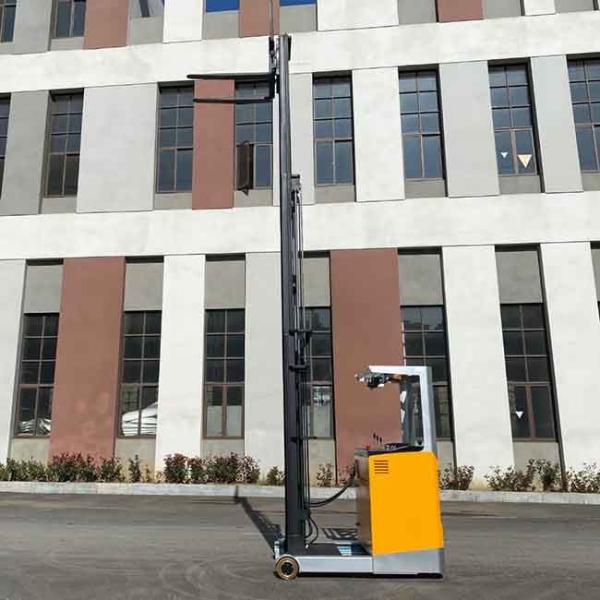

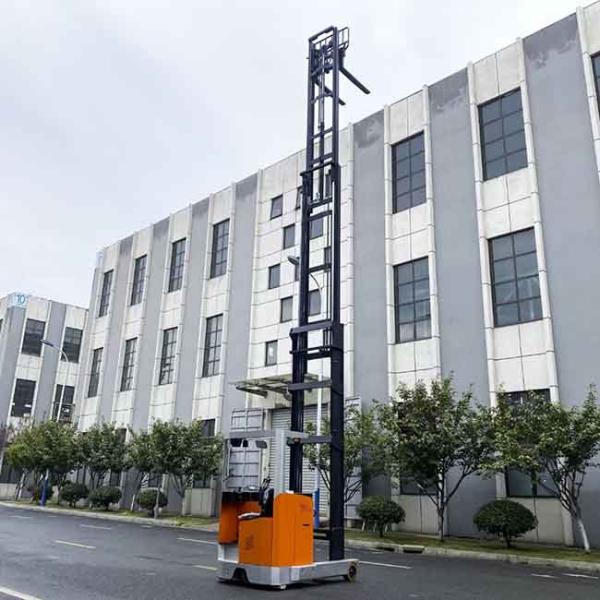

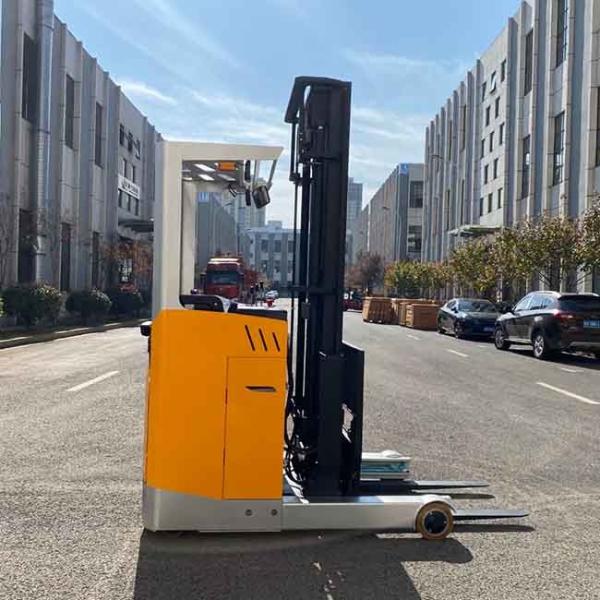

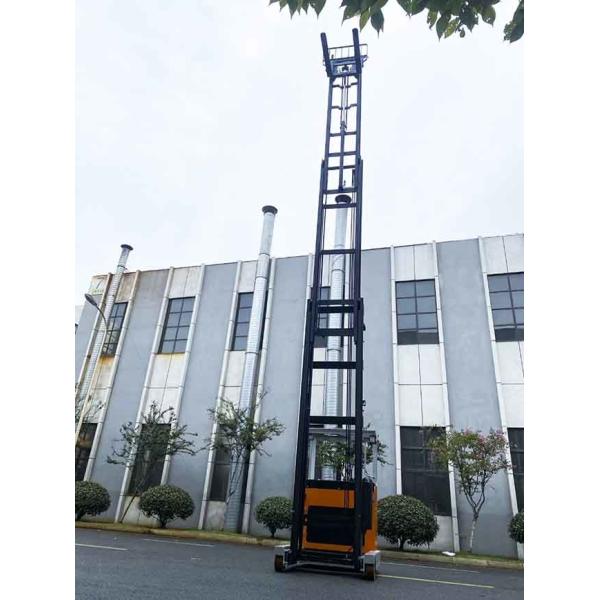

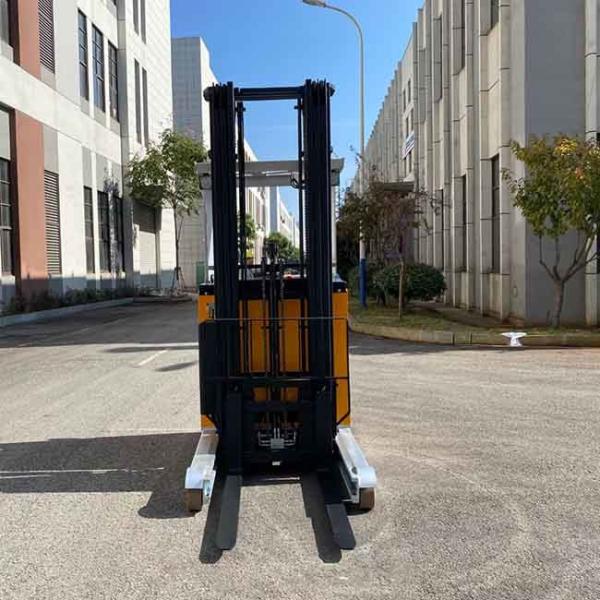

48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
48V 2T Reach Truck Forklift 2000kg CQDE20 Reach Walkie Stacker
Specifications
Brand Name :
YEAWEY
Model Number :
CQDE20
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
2T Electric Reach stacker 48V seat type
Load capacity :
3T
Lift height :
3-6m
Mast type :
Triplex mast
Battery :
48V/400Ah
Service weight :
3850 kgs
Description

2000kg CQDE20 48V 2T Electric Reach forklift truck seat type triplex 3-9m mast

Main information:

Curtis AC controller

AC lift and drive motor

Lift height 3m to 6m

Lead acid battery 48V/400AH

Seat type

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Height limit function

When the fork is lifted to the maximum height, the lifting motor will automatically power off to ensure the safety of lifting

Turning Speed Limit Control

Prevent the forklift from overturning sideways when turning, and ensure the safety.

Motor temperature detection control

Prevent the motor from being damaged due to overheating.

Item Model CQDE20-45S
1 Power type Electric
2 Drive mode Seated
3 Load capacity Q(kg) 2000
4 Load center C(mm) 500
5 Front overhang X(mm) 183
6 Wheel base Y(mm) 1620
7 Reach distance L(mm) 655
8 Self weight with battery kg 3050
9 Tire type Pu solid tire
10 Front tire size ∅×w(mm) 267*114
11 Rear tire size ∅×w(mm) 382*142
12 Track width, front wheels b10(mm) 1180
13 Height-Mast Lowered h1(mm) 2105
14 Free Lift Height h2(mm) 1500
15 Lift Height h3(mm) 4500
16 The maximum height of the gantry during homework h4(mm) 5465
17 The height of overhead guards h14(mm) 2180
18 The height when fork lowered h13(mm) 40
19 Tilt-Forward/Back α/β(°) 3/5
20 Overall length(with forks) l2(mm) 2477
21 Width of the body b1(mm) 1270
22 Fork Dimensions s/e/l(mm) 40/122/1070
23 Fork Spread b5(mm) 244-705
24 Min ground clearance m2(mm) 70
25 Aisle Width,pallet 1000*1200mm Ast(mm) 3007
26 Min. Turning radius Wa(mm) 1900
27 Max travel speed unladen/Load km/h 7.8/6.8
28 Max. lifting speed unladen/Load m/s 0.300/0.235
29 Max. lowing speed unladen/Load m/s 0.330/0.400
30 Grade Ability unladen/Load ％ ≤10
31 Drive brake electromagnetic
32 Drive motor kw 6.5
33 Lift motor kw 6.3
34 Battery type Lead acid
35 Battery capacity V/Ah 48V400Ah
36 Charger V/A 48V/50A
37 DriveControllingType alternating current
38 The noise level in the driver's ear according to EN12053 dB(A) 75
