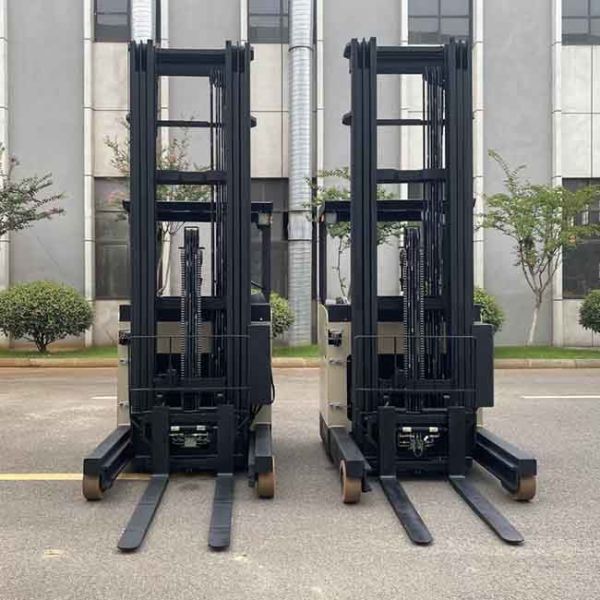

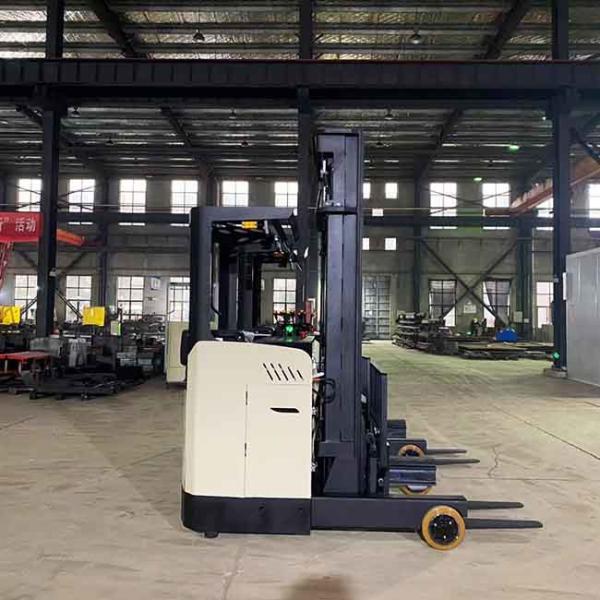

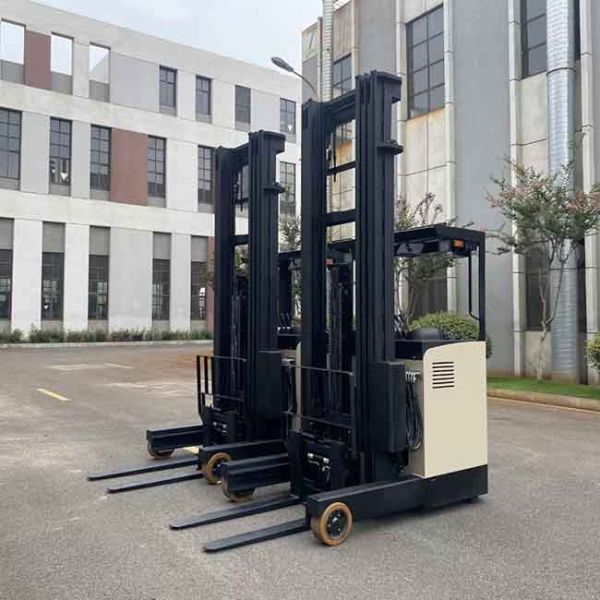

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

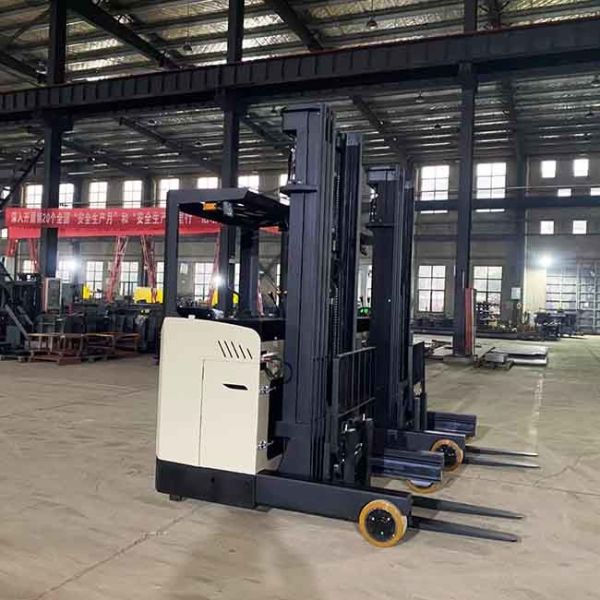

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

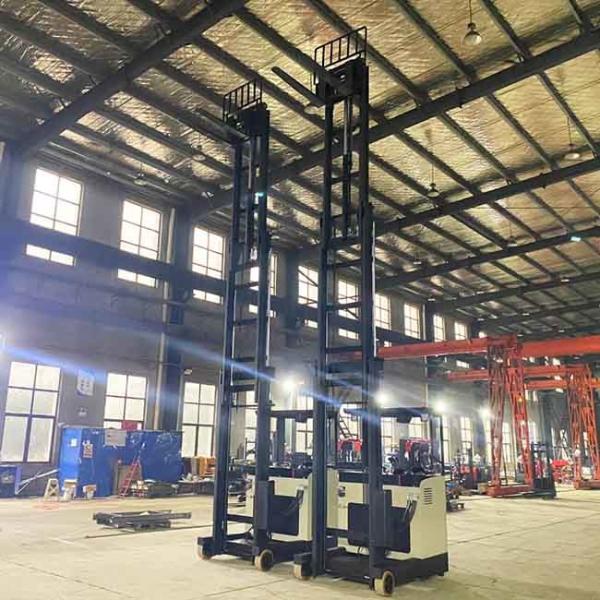

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

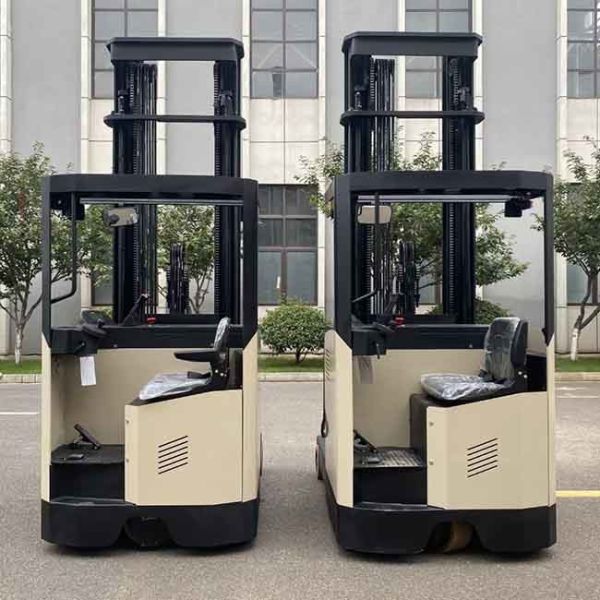

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

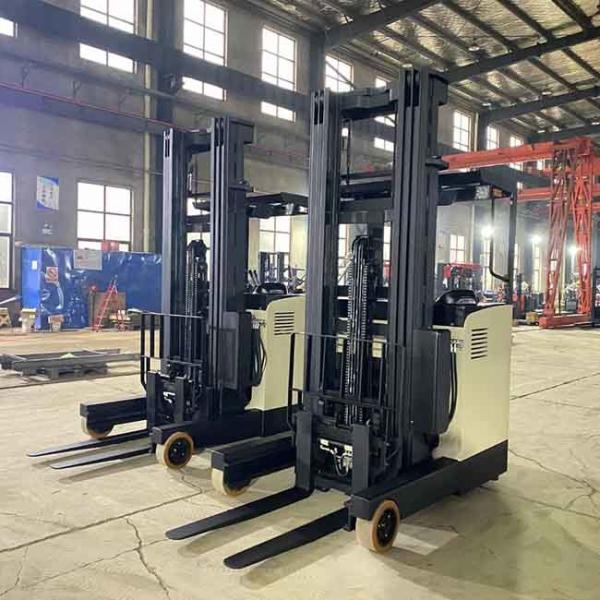

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

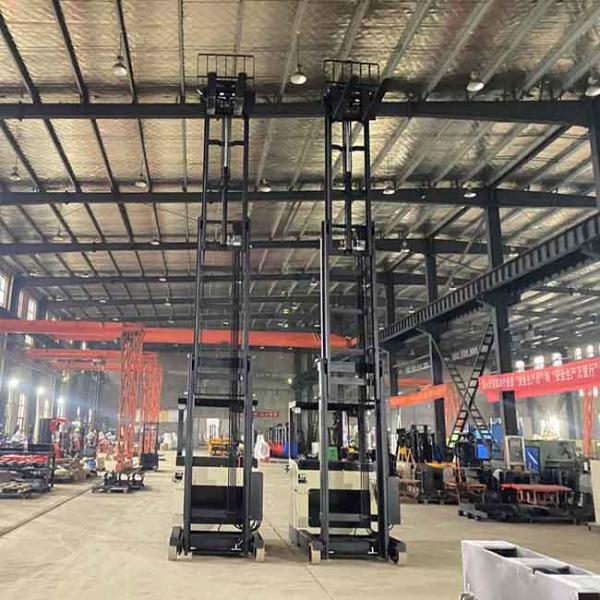

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

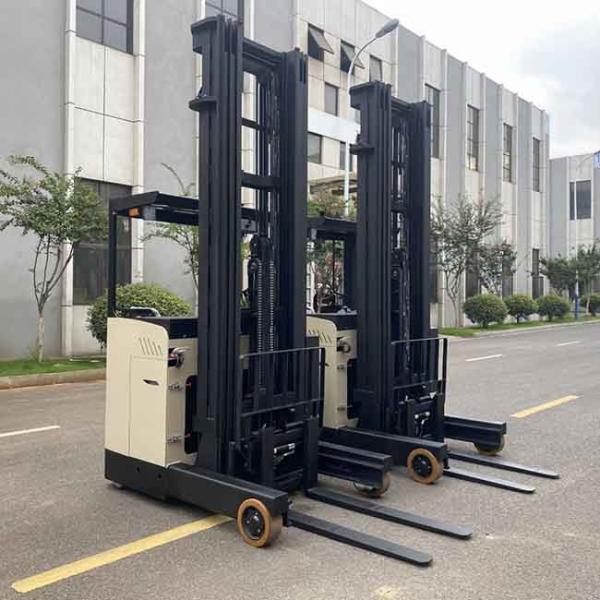

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

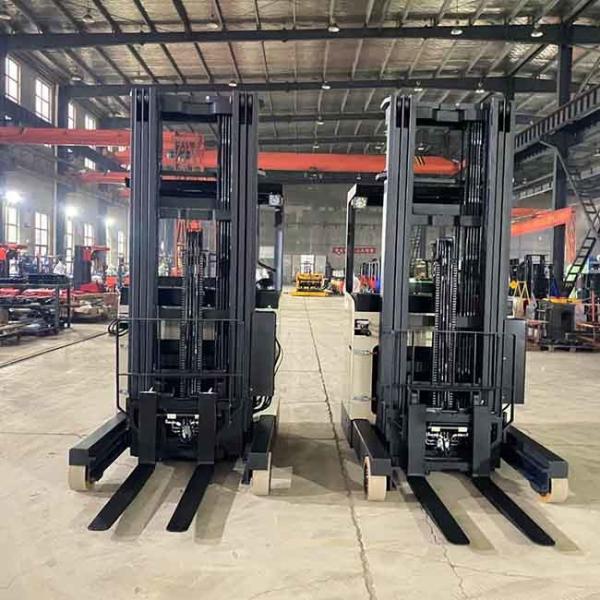

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast
Specifications
Brand Name :
YEAWEY
Model Number :
CQDE30
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
3T Electric Reach stacker 48V seat type
Load capacity :
3.00T
Lift height :
3-6m
Mast type :
Triplex mast
Battery :
48V/450Ah
Service weight :
3850 kgs
Description

3000kg CQDE30 48V 3T Electric Reach forklift truck seat type triplex 3-6m mast

Main information:
Curtis AC controller
AC lift and drive motor
Lift height 3m to 6m
Lead acid battery 48V/400AH
Seat type

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Strong chassis
The chassis structure is strong, the distribution of the center of mass is reasonable, and the stability of the whole vehicle is excellent.

Energy efficient.
High-speed lifting and lowering control improves your work efficiency.It adopts AC drive motor, hydraulic pump motor and steering motor, with long life, maintenance-free and reliable performance. All lights use LED, durable and energy-saving.

Height limit function:
When the fork is lifted to the maximum height, the lifting motor will automatically power off to ensure the safety of lifting.

ItemModel CQDE30-45S
1Power type Electric
2Drive mode Seated
3Load capacityQ(kg)3000
4Load centerC(mm)500
5Front overhangX(mm)183
6Wheel baseY(mm)1650
7Reach distanceL(mm)610
8Self weight with batterykg4300
9Tire type Pu solid tire
10Front tire size∅×w(mm)280*135
11Rear tire size∅×w(mm)382*142
12Track width, front wheelsb10(mm)1329
13Height-Mast Loweredh1(mm)2485
14Free Lift Heighth2(mm)1500
15Lift Heighth3(mm)4500
16The maximum height of the gantry during homeworkh4(mm)5515
17The height of overhead guardsh14(mm)2180
18The height when fork loweredh13(mm)45
19Tilt-Forward/Backα/β(°)3/5
20Overall length(with forks)l2(mm)2565
21Width of the bodyb1(mm)1270/1460
22Fork Dimensionss/e/l(mm)45/125/1070
23Fork Spreadb5(mm)270-840
24Min ground clearancem2(mm)70
25Aisle Width,pallet 1000*1200mmAst(mm)3110
26Min. Turning radiusWa(mm)1922
27Max travel speed unladen/Loadkm/h7.8/6.8
28Max. lifting speed unladen/Loadm/s0.240/0.170
29Max. lowing speed unladen/Loadm/s0.300/0.380
30Grade Ability unladen/Load％≤10
31Drive brake electromagnetic
32Drive motorkw8
33Lift motorkw12
34Battery type Lead acid
35Battery capacityV/Ah48V400Ah
36ChargerV/A48V/50A
37DriveControllingType alternating current
38The noise level in the driver's ear according to EN12053dB(A)75


3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast


3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast

3000kg CQDE30 48V 3T Electric Reach Forklift Truck Seat Type Triplex 3-6m Mast
