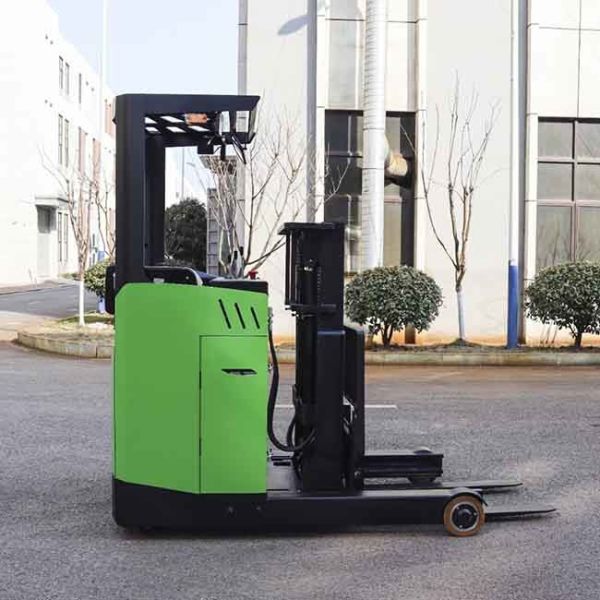

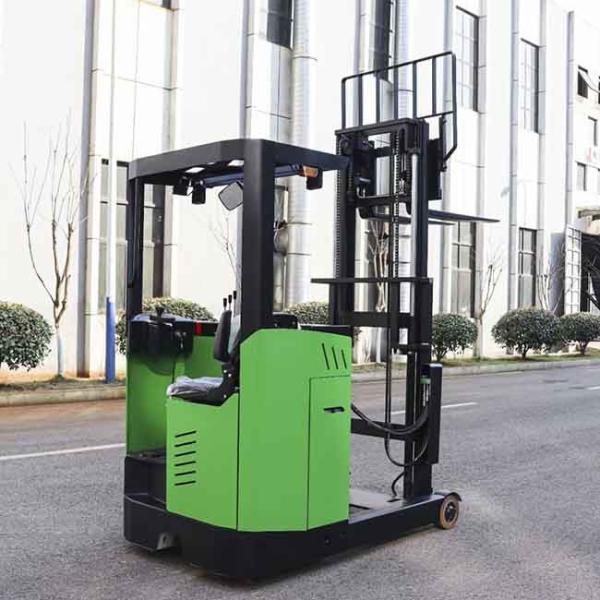

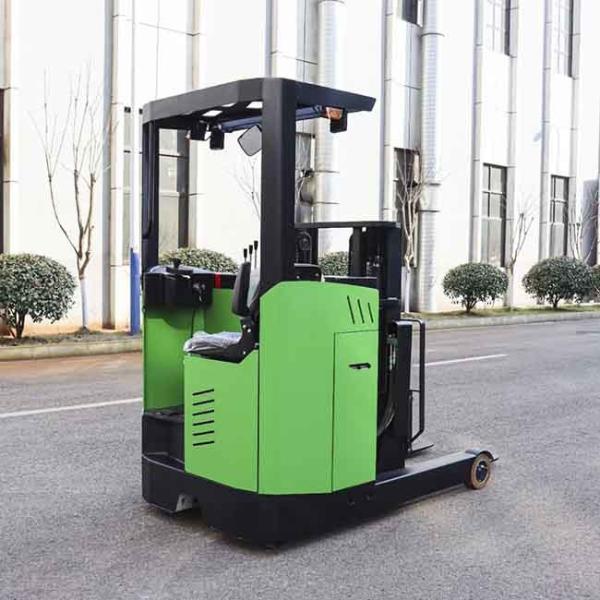

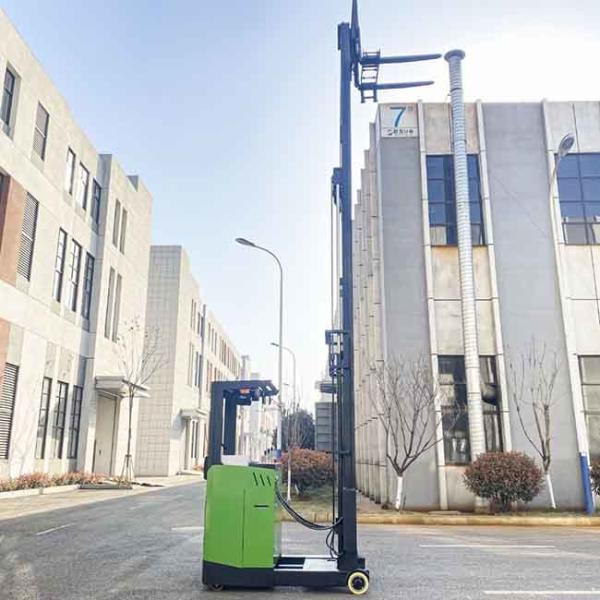

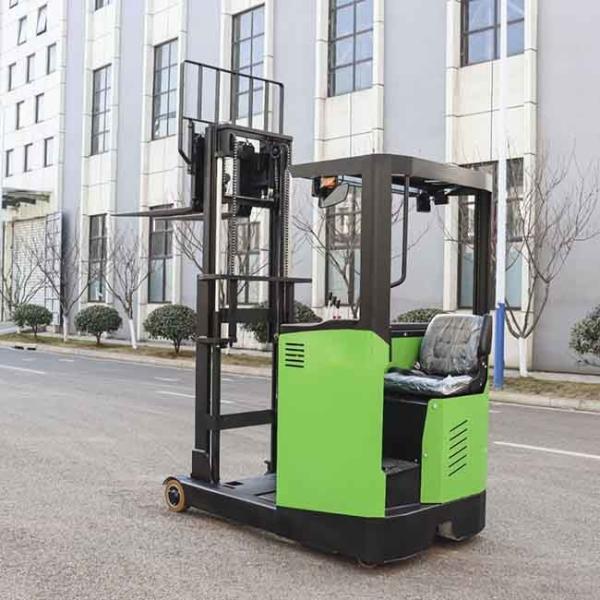

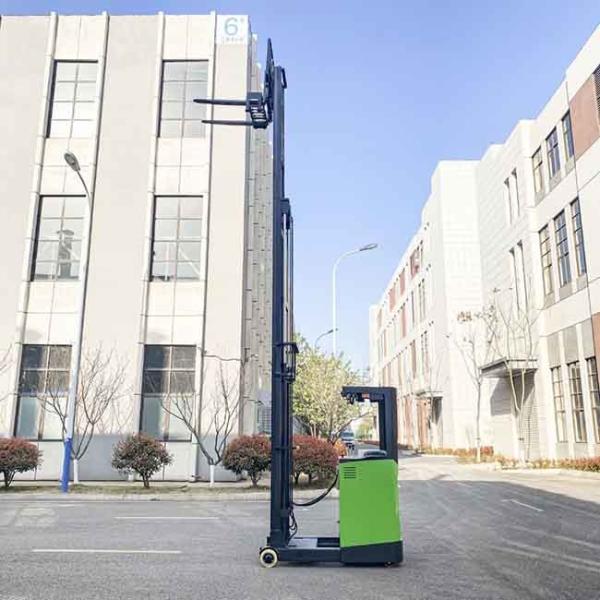

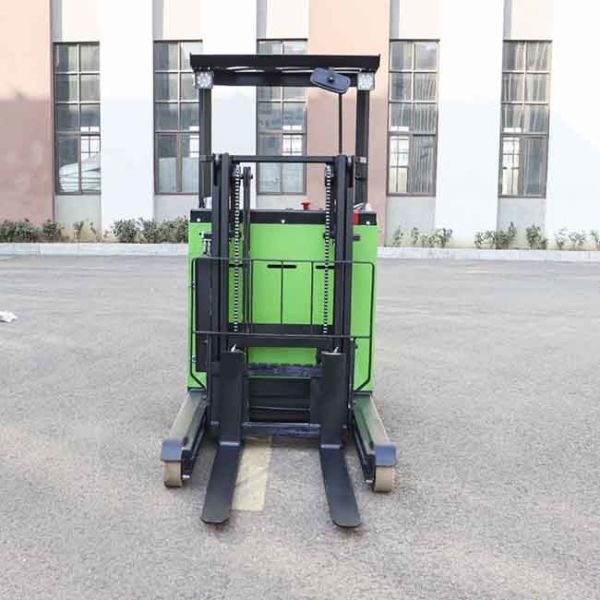

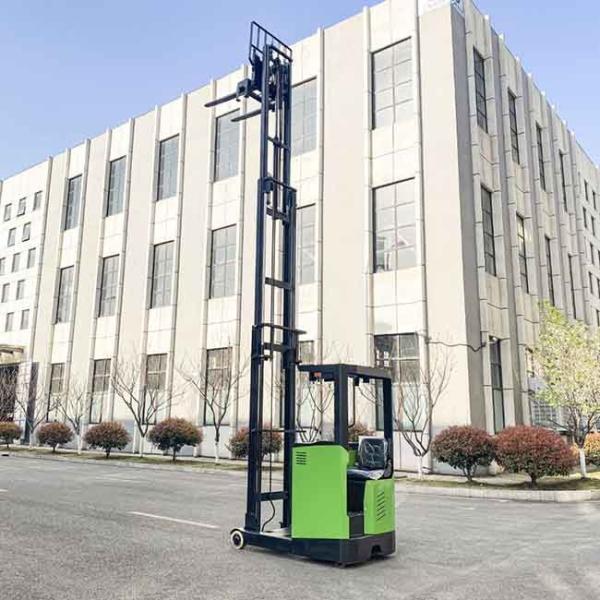

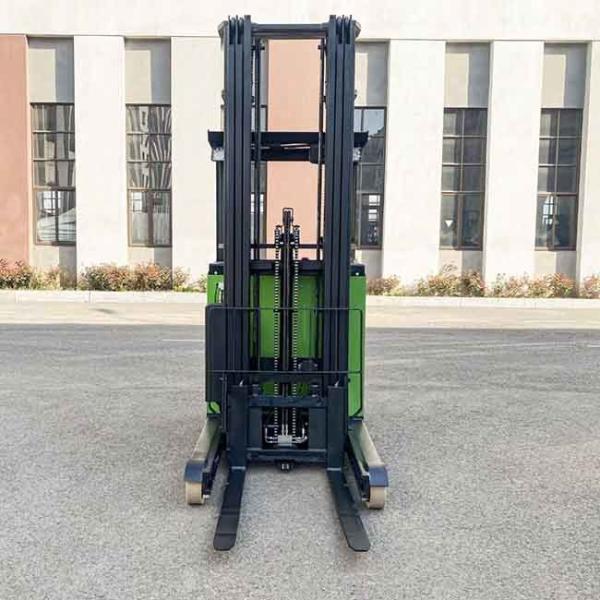

CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
Specifications
Brand Name :
YEAWEY
Model Number :
CQDE15
Certification :
CE ISO，SGS
Place of Origin :
China
MOQ :
1 unit
Price :
6000-7500 usd
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100 units per month
Delivery Time :
5-8 working days
Packaging Details :
Plastic bag
Product name :
1.5T Electric Reach stacker 48V seat type
Load capacity :
1500kg
Lift height :
3-12m
Mast type :
Triplex mast
Battery :
48V/410Ah
Service weight :
3815 kgs
Description

1500kg CQDE15 48V 1.5T Electric Reach forklift truck seat type triplex 3-12m mast

Main information:

Curtis AC controller

AC lift and drive motor

Lift height 3m to 6m

Lead acid battery 48V/400AH

Seat type

The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.

Multi-function LCD instrument

Multi-function LCD instrument can display steering wheel position, battery power, power alarm, fault code running time, driving speed and other information.

Superior pump and controller

Low-noise gear hydraulic pump reduces the lifting noise of the whole vehicle.Travel motor controllers, hydraulic pump motor controllers and steering motor controllers of international well-known brands are self-protected, maintenance free and have superior performance.

Suspension seat(optional)

The highly elastic shock-absorbing seat greatly reduces the transmission of vibration to the driver. the seat can be adjusted in multiple positions to meet the operation needs.

Item Model CQDE15-45S
1 Power type Electric
2 Drive mode Seated
3 Load capacity Q(kg) 1500
4 Load center C(mm) 500
5 Front overhang X(mm) 183
6 Wheel base Y(mm) 1470
7 Reach distance L(mm) 505
8 Self weight with battery kg 3000
9 Tire type Pu solid tire
10 Front tire size ∅×w(mm) 267*114
11 Rear tire size ∅×w(mm) 382*142
12 Track width, front wheels b10(mm) 1180
13 Height-Mast Lowered h1(mm) 2105
14 Free Lift Height h2(mm) 1500
15 Lift Height h3(mm) 4500
16 The maximum height of the gantry during homework h4(mm) 5465
17 The height of overhead guards h14(mm) 2180
18 The height when fork lowered h13(mm) 35
19 Tilt-Forward/Back α/β(°) 3/5
20 Overall length(with forks) l2(mm) 2477
21 Width of the body b1(mm) 1270
22 Fork Dimensions s/e/l(mm) 35/100/1070
23 Fork Spread b5(mm) 210-705
24 Min ground clearance m2(mm) 70
25 Aisle Width,pallet 1000*1200mm Ast(mm) 2964
26 Min. Turning radius Wa(mm) 1800
27 Max travel speed unladen/Load km/h 7.8/6.8
28 Max. lifting speed unladen/Load m/s 0.330/0.245
29 Max. lowing speed unladen/Load m/s 0.260/0.325
30 Grade Ability unladen/Load ％ ≤10
31 Drive brake electromagnetic
32 Drive motor kw 6.5
33 Lift motor kw 6.3
34 Battery type Lead acid
35 Battery capacity V/Ah 48V300Ah
36 Charger V/A 48V/40A
37 DriveControllingType alternating current
38 The noise level in the driver's ear according to EN12053 dB(A) 75
