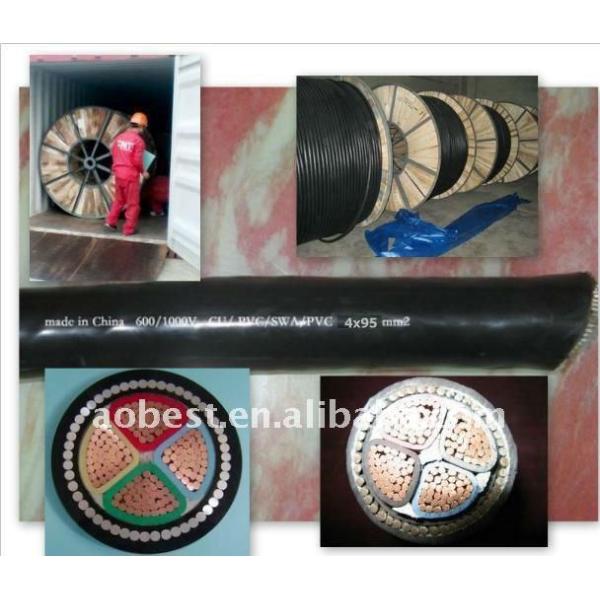

High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market
Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
VV32 YJV32
Insulation Material :
XLPE or PVC
Type :
from low to high voltage up to 35KV, SWA cable
Application :
Construction
Conductor Material :
copper or aluminum
Jacket :
PVC
Product name :
high quality swa armoured cable
Color :
Requirement
Standard :
BS IEC ASTM DIN
Certificate :
ISO9001 CCC
Conductor :
copper or aluminum
MOQ :
500 meters
Price :
$1.00 - $16.00/meters
Description

High Quality rz1-k SWA Armoured Cable

1.Standard :

IEC60502,GB/T 12706

2. Voltage :

up to 35KV

3. Specification:

Type

Designation

Application

VV

Copper conductor ,PVC insulated ,PVC sheathed power cable

For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct

VLV

Aluminium conductor ,PVC insulated ,PVC sheathed power cable

VY

Copper conductor, PVC insulated, PE sheathed power cable

VLY

Aluminium conductor ,PVC insulated ,PE sheathed power cable

VV22

Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable

For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force

VLV22

Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable

VV23

Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable

VLV23

Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable

VV32

Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable

For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces

VLV32

Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable

VV33

Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable

VLV33

Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable

Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied

High Quality RZ1-K SWA Armoured Cable for Construction for Oversea Market

4. Nominal Cross-sectional Areas:

1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2

5. Production Range:

single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2

6. Operating Characteristics:

Rated power-frequency voltage u0/u:0.6/1 KV

Max permissible continuous operating temperature of conductor 70

Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2

The ambient temperature under installations should not be below 0

The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter.
