Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
CU/PVC/PVC 0.6/1KV
Type :
insulated
Application :
Underground
Conductor Material :
Copper
Conductor Type :
Stranded
Insulation Material :
PVC
Rated voltage :
1000V
Product name :
Copper Core PE Insulation Boundary Wire
Certification :
ISO9001/ISO14001 /OHSAS18001/CCC
Standard :
IEC NEMA GB JIS
Packing :
Wooden Drum
Keyword :
Copper Electrical Cable
MOQ :
50 meters
Price :
$0.10 - $1.90/meters
Description

Ⅰ,Brief introduction

With the characteristics of stable performance,advanced technology,broad materials resources,low prices,good flexible and easy to lay and maintain, the polyvinyl chloride insulated power cable is used in fixing lay-up on transmission and distribution electric lines of 50 Hz A.C rated voltage 10 KV or below.

Ⅱ,Application properties

1,Long term permissible working temperature of cable conductive core is not more than 70°C.

2,During short circuit (maximum permanent time is not more than 5 seconds),Temperature of cable conductor is not more than 165°C.

3,The difference level of lay-up cable is not restricted. When laying the cable, temperature of laying is not low than 0°C.

4,They have a good chemical stability, acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame retardant properties..

5,Light weight, good bending properties and easy to install and maintenance.

Type

Name

Application

VV VLV

Copper(aluminum)core, PVC insulated and sheathed power cable

Mainly laid indoors. Channels, cable slot, tube and other places which can not bear greater pulling and pressure force.

VY VLY

Copper(aluminum)core, PVC insulated, PE sheathed power cable

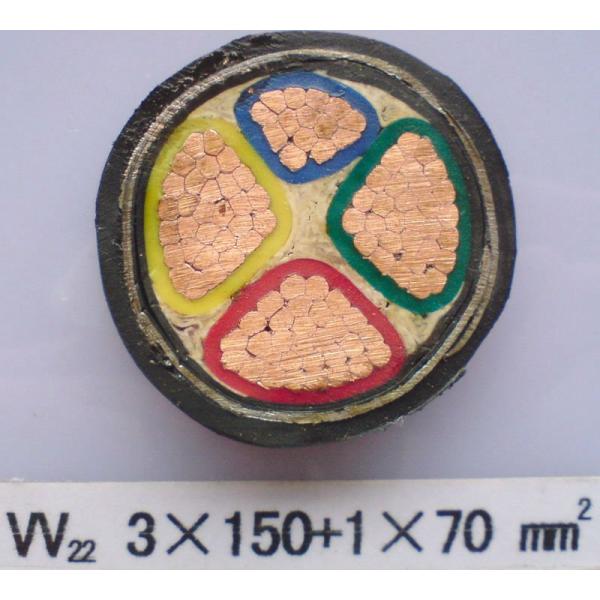

VV22 VLV22

Copper( aluminum)core, PVC insulated, steel tape armoring PVC sheathed power cable

The cables can be laid indoors, in channels, cable slot and direct burial. The cable can bear mechanical force but can not bear greater pulling force.

VV23 VLV23

Copper(aluminum)core, PVC insulated, steel tape armoring PE sheathed power cable

VV32 VLV32

Copper(aluminum)core, PVC insulated, fine steel wire armoring PVC sheathed power cable

Laid indoors, in mining well and water, can bear mechanical force and pulling force.

VV33 VLV33

Copper(aluminum)core, PVC insulated, fine steel wire armoring PE sheathed power cable

VV42 VLV42

Copper(aluminum)core, PVC insulated, thick steel wire armoring PVC sheathed power cable

Laid indoors, in mining well and water, bear greater pulling force.

VV43 VLV43

Copper(aluminum)core, PVC insulated, thick steel wire armoring PE sheathed power cable

As above

More info needed, pls contct me freely.
