Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
cu pvc swa pvc cable
Insulation Material :
PVC
Type :
LOW VOLTAGE
Application :
Construction
Conductor Material :
Copper
Jacket :
PVC
Size :
35 mm2
Product name :
high quality cu pvc swa pvc power cable
Color :
Requirement
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC
Standard :
BS IEC ASTM DIN
Conductor :
copper
Insulation :
pvc
MOQ :
2 kilometers
Price :
$900.00 - $1,000.00/kilometers
Description

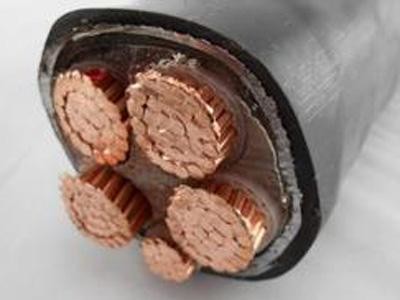

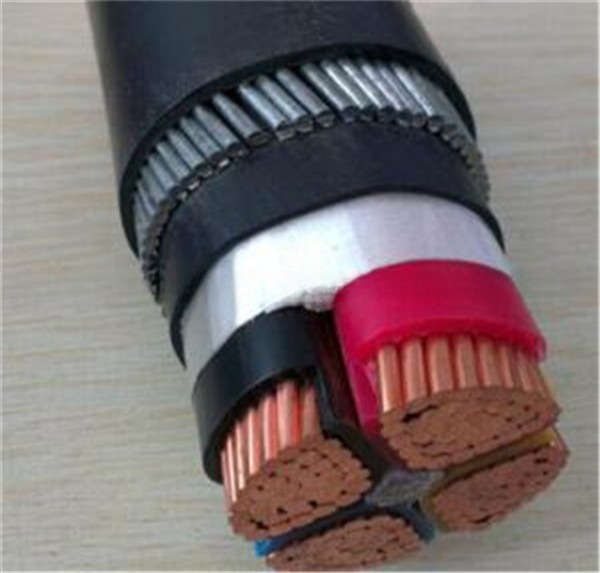

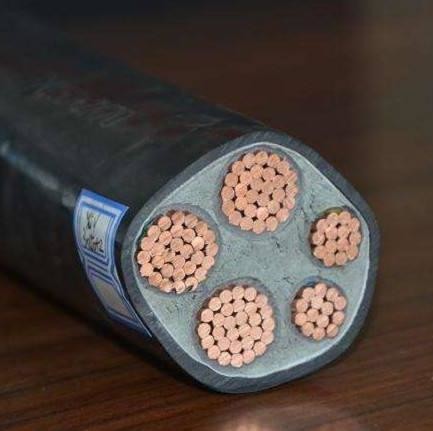

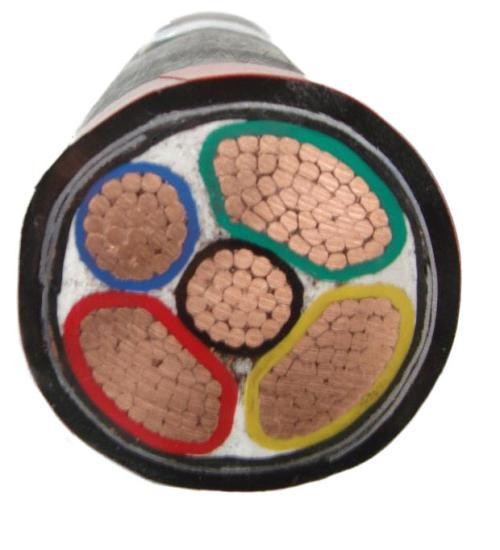

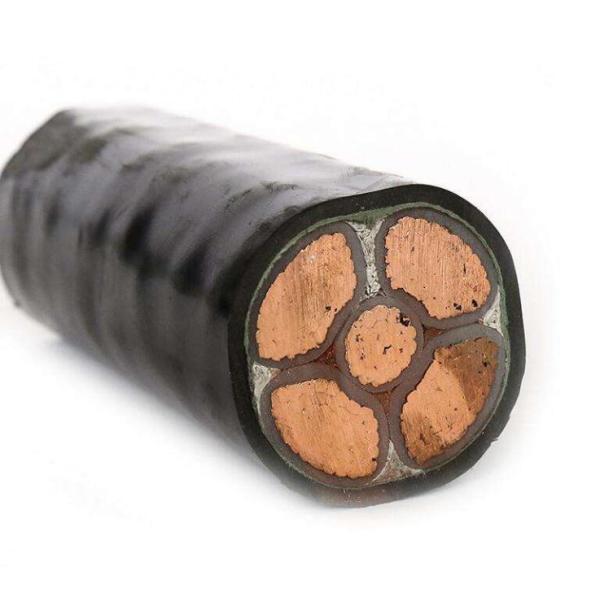

CU PVC SWA PVC Power Cable

Product Description:

1. Conductors: copper or aluminum.

2. Both armored and non-armored type power cables are available.

3. Voltage rating: 0.6/1kV 3.6/6kV 6/10kV 8.7/15kV 26/35kV.

4. PVC or PE sheathed.

5. Number of cable cores: one core (Single core),two cores(Double cores),three cores,

Four cores (Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core),

Five cores (Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores).

Type and description:

Type

Description

Application

Cu Core

Al Core

YJV

ZR-YJV

YJLV

ZR-YJLV

Cu(Al)Core, XLPE Insulated, PVC Sheathed Power Cable

Cu(Al)Core, XLPE Insulated, PVC Sheathed flame- retardant Power Cable

Can be laid in indoor, outdoor, tunnels, cable channels, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force.

YJV22

ZR-YJV22

YJLV22

ZR-YJLV22

Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable

Cu(Al)Core, XLPE Insulated, Steel Tape Armored and PVC Sheathed flame- retardant Power Cable

Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force.

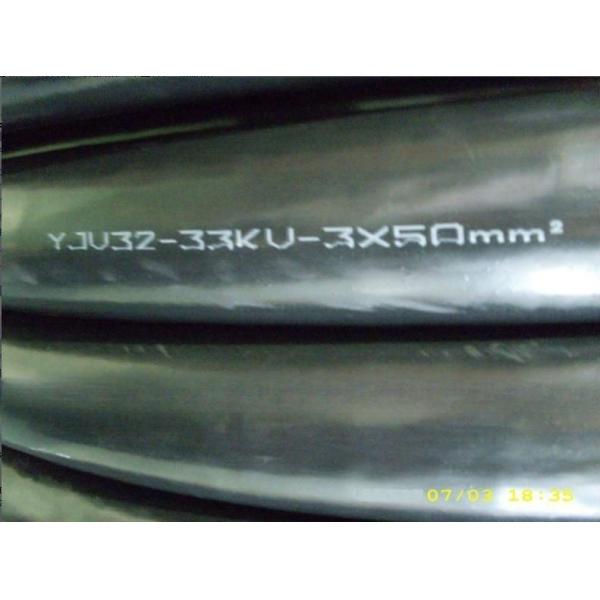

YJV32

ZR-YJV32

YJLV32

ZR-YJLV32

Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable

Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable

Laid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force.

YJV42

ZR-YJV42

YJLV42

ZR-YJLV42

Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed Power Cable

Cu(Al)Core, XLPE Insulated, Steel Wire Armored and PVC Sheathed flame- retardant Power Cable

Can be laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force.

Description:

Rate
Voltage(kv)
Sectional
Area(mm 2 )
No.of Core
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200
2 Core 1.5-185 25-185
3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400
4 Core 2.5-400 25-400
5 Core 2.5-400 25-400
