Specifications
Place of Origin :
Henan, China
Brand Name :
Aobest
Model Number :
swa pvc cable
Insulation Material :
PVC
Type :
LOW VOLTAGE
Application :
Construction
Conductor Material :
copper or aluminum
Jacket :
PVC
Product name :
Copper Core PVC Insulated Electrical Power Cable
Certificate :
ISO9001/ISO14001 /OHSAS18001/CCC
Standard :
BS IEC ASTM DIN
Package :
Steel-wooden Drum
Packaging Details :
export standard steel wooden drum or as your request
Port :
Qingdao or Shanghai
Supply Ability :
500 Kilometer/Kilometers per Week
MOQ :
2 kilometers
Price :
$1,000.00 - $1,650.00/kilometers
Description

SWA pvc insulated cable

Steel wire armoured cable is suitable for using in power transmission lines with rated voltage up to and including 1KV.

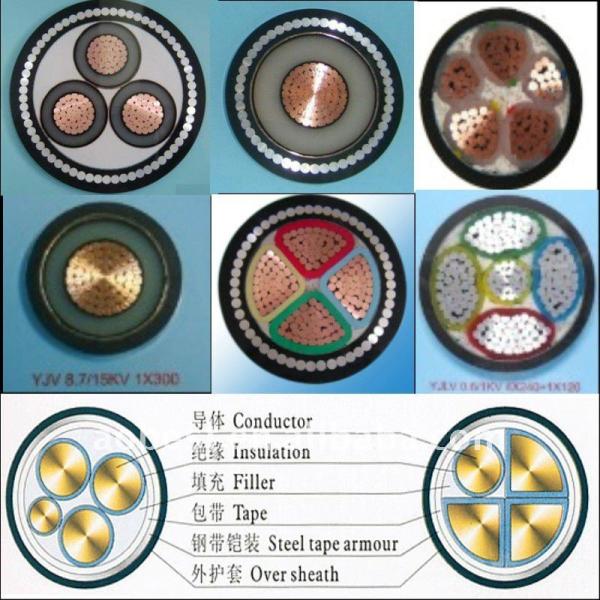

Steel wire armoured cable Product Code & Description:

steel wire armoured cable Model, core number, nominal cross-section and the description:

Model

Core number

Nominal cross-section
mm2

Description

Cooper core

Aluminum core

VV

VLV

1~5
3+2
4+1

1.5~240

PVC insulated PVC(Polyvinyl chloride ) sheathed power cable

VV22

VLV22

4~240

PVC insulated PVC sheathed steel tape armored power cable

YJV

YJLV

1.5~240

XLPE insulated PVC sheathed power cable

YJV22

YJLV22

4~240

XLPE(Crosslinked polyethylene) insulated steel tape armored PVC sheathed power cable

Min. Bending Radius For Installation

ITEM

SINGLE CORE CABLE

THREE-CORE CABLE

NO ARMOR

WITH ARMOR

NO ARMOR

WITH ARMOR

Min. Bending Radius for Cable Installation

20D

15D

15D

12D

Min. Bending Radius Near Junction Box & Terminal Cable

( Bending Shall Be Controlled Carefully )

15D

12D

12D

10D

steel wire armoured cable Storage, transportation

1. Cable storage place should be dry and ventilated.

2. Cable tray is not allowed to place horizontally.

3. When storage avoid humidity and moisture into the cable core, both ends should not be

exposed to the air, uses cable caps to take the ends enclosed.

4. The cable tray is not allowed to place horizontally when transportation, as to avoid

crushing cables.

5. Lifting spreader should be used when lifting cables, pushing from the vehicle is strictly

prohibited.

6. Avoid the moisture into the cable core when transportation.

Technology property:

(1) Insulation core should bear the sparking test standard test standard GB/3048.13.

(2) The sheath should be closed tightened on the insulation. The surface of the sheath have to be smooth and its color should be well distributed.

(3) The finished cable should experienced soaking voltage testing as stipulated in the following table.

Table 1 :

Testing conditions

Unit

Property Nominal value

The length of Sample

m

≥10

Soaking time

H

≥1

Water temperature

deg

20 ± 5deg

Testing voltage value

V

3000
