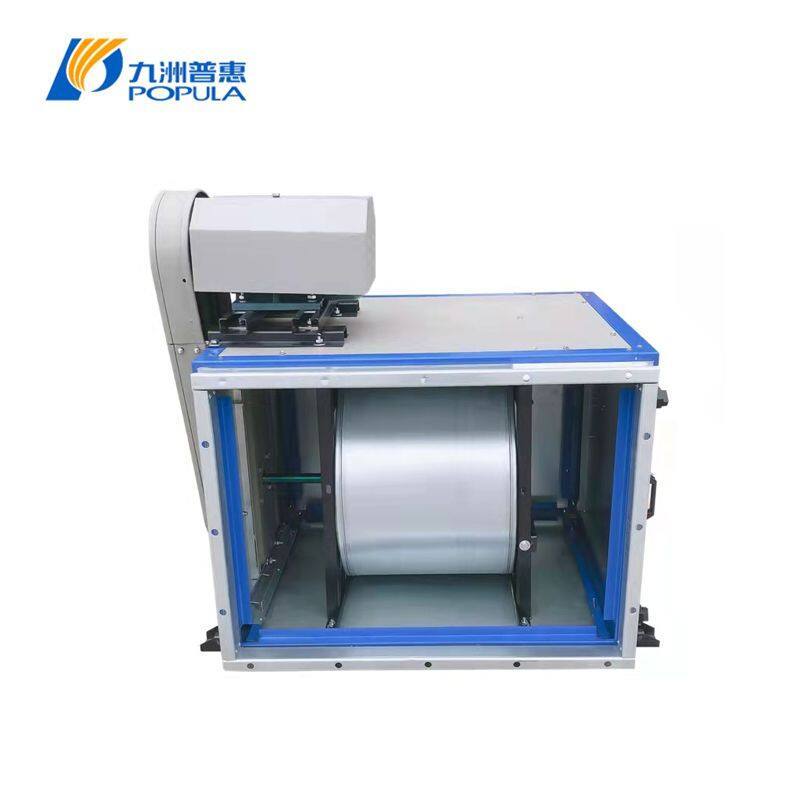

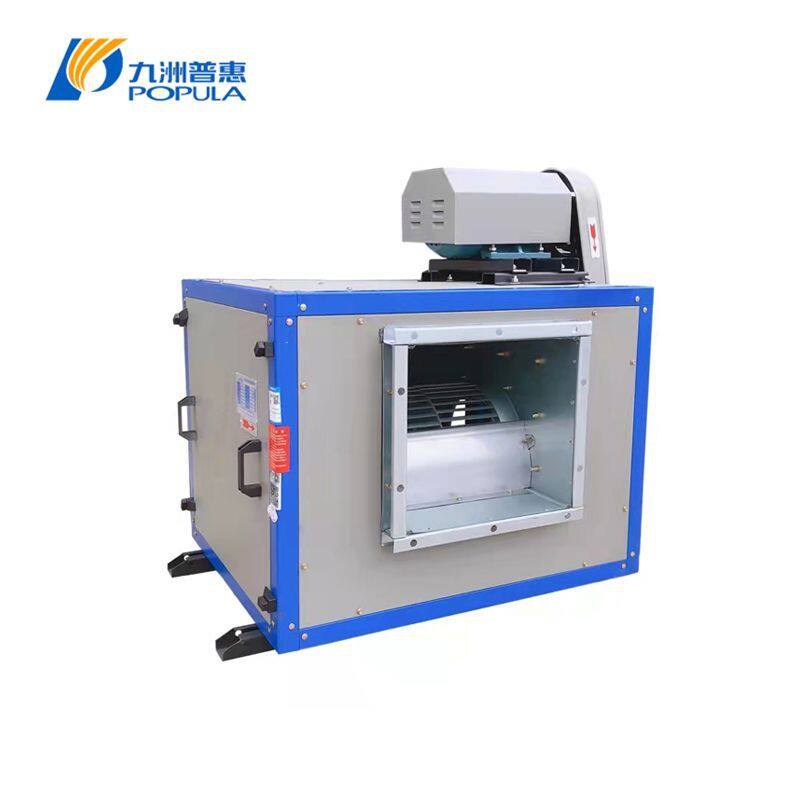

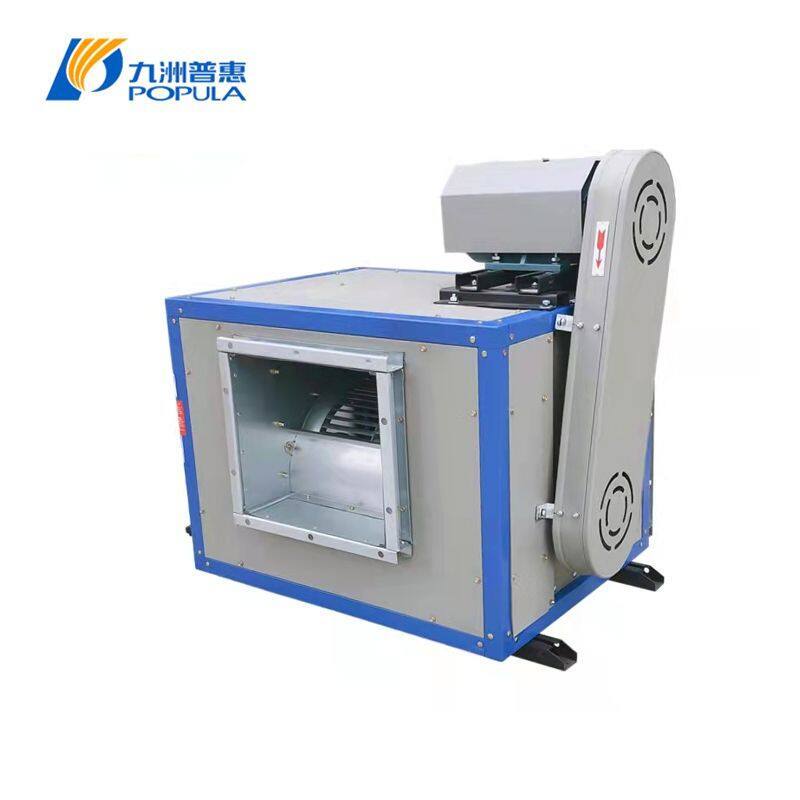

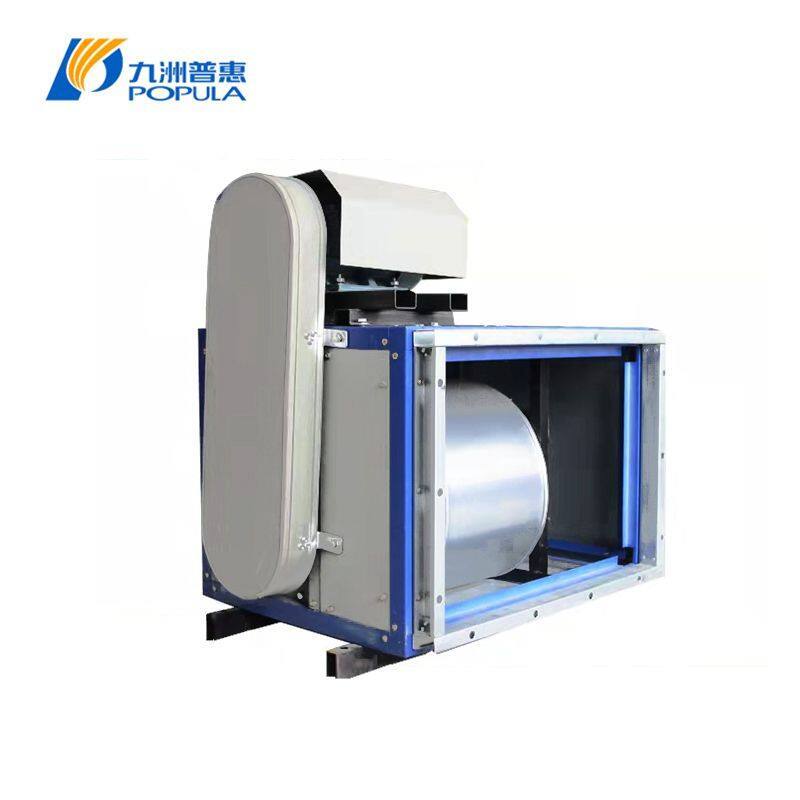

Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Cabinet Type Centrifugal Fan High Airflow For Kitchen Exhaust Industrial Ventilation
Specifications
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Operatingtemperature :
-20°C to 80°C
Brand Name :
Popula
Packaging Details :
Carton packing for each； 500 sets around for 20 feet container
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Inletdiameter :
200 - 1200 mm
Payment Terms :
T/T
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Place of Origin :
China
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
MOQ :
1 set
Model Number :
DT
Certification :
CE, UL, Rohs
Supply Ability :
100000 Sets/week
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Material :
Steel / Stainless Steel
Description

DT Big Air Volume Cabinet Centrifugal fan

  • A centrifugal cabinet fan has the benefit of high efficiency. Low noise, novel compact structure.
  • Cabinet-type centrifugal fa adopts the design philosophy of the high-efficiency fan abroad.
  • Combined with our own experiences of research and development on the air-conditioning ventilation system for many years, this mixed flow inline fan shows the real engineering applications.
  • This centrifugal cabinet fan has different models, such as 9”, 10”, 15”, 18”, 20”, 22”, 25”, 28”, 30”, 33”, and 36”, a total of 12 models.
  • Separated with I type, single-speed ordinary pressure, it also has double-speed ordinary pressure for customer selection.
  • Having used the advanced MGS automatic testing system, this mixed flow inline fan will help customers when parametric designing the fan, analyzing the flow and structure optimization, etc.

    DT Model Features:

    Material Properties

    The case of this centrifugal cabinet fan is made of high-quality DKP, while the frame is made of high-quality aluminum alloy with baked paint process coating, which gives it a durable shine color. The motor is a highly efficient, 100% pure Cooper ball-bearing motor. Bearing selection and load capacity are calculated to ensure that they are within safe operating limits, hence, long life and durability. The operating temperature of this mixed flow inline fan is between -20ºC to 80ºC.

    Fan Structure

    The impeller of this centrifugal cabinet fan is the forward curve multi-wings type. It is low noise. The impeller is adjusted by static and dynamic balance, with good aerodynamic performance. And the quality of this mixed flow inline fan is as high as the international standard.

    Usage Area

    Hotels, restaurants, cinemas, halls, mining industries, buildings...This model of the centrifugal cabinet fan has double speed to choose from. This mixed flow inline fan is mainly suitable for various sizes of air conditioning and purification equipment, variable air volume air conditioning cabinet units, fan cabinet air conditioning units, central air conditioning units, and various purification equipment ventilation and air exchange, etc.

    Model Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static Pressure(Pa)
    9" 0.55/0.75/1.1/1.5/2.2 900~1600 1276~6670 209~565 154~510
    10" 0.75/1.1/1.5/2.2/3 900~1630 2691~7919 186~709 184~635
    12" 1.1/1.5/2.2/3/4 800~1430 3223~10633 195~809 205~730
    15" 1.5/2.2/3/4/5.5 700~1250 4934~14235 242~920 211~840
    18" 2.2/3/4/5.5/7.5 720~1000 6815~18766 607~950 434~840
    20" 3/4/5.5/7.5/11 610~950 7842~27377 216~758 184~667
    22" 4/5.5/7.5/11/15 650~880 11288~33021 339~1005 301~875
    25" 5.5/7.5/11/15/18.5 520~800 17108~42377 245~840 218~746
    28" 7.5/11/18.5/22/30 500~720 21203~53647 323~990 283~886
    30" 11/15/18.5/22/30 500~750 24931~63015 494~1177 450~1061
    33" 15/18.5/22/30/37 500~650 30000~66848 306~750 273~660
    36" 18.5/22/30/37/45 450~600 31927~81839 368~886 324~789
    40" 30/37/45/55/75 480~650 55013~127338 529~1207 473~1091
    44" 37/45/55/75/90/110 430~600 80814~180203 633~1820 592~1791
Q1: What are the main applications of the DT fan?
A1: It is widely used in hotels, restaurants, cinemas, halls, basements, mining enterprises, office buildings, and other locations for ventilation and exhaust applications.

Q2: What temperature and dust conditions can the fan withstand?
A2: The fan handles clean, non-corrosive, non-flammable, and harmless gases, with a maximum temperature not exceeding 80°C and dust content ≤150mg/m³.

Q3: What are the key design features of the fan?
A3: It features a compact cabinet structure, high efficiency, low noise, low vibration, and easy maintenance.

Q4: How do I choose the right model for my application?
A4: Consider the required airflow, pressure, static pressure, noise tolerance, and installation space. The series offers a wide range of models with different capacities.

Q5: Is the fan suitable for continuous operation?
A5: Yes, the fan is designed for long-term continuous use in various commercial and industrial environments.

Q6: What maintenance is required for the DT fan?
A6: Regular cleaning of the impeller and casing, as well as periodic checks of the motor and belt drive system, are recommended to ensure optimal performance.

Q7: Can the fan be used for both supply and exhaust ventilation?
A7: Yes, the fan is suitable for both supply and exhaust applications in various ventilation systems.

Q8: What certifications does the DT series have?
A8: The series meets international quality standards. CE-certified versions are available for European customers.

Q9: Is the fan easy to install?
A9: Yes, the compact cabinet design allows for easy installation in various ventilation systems.

Q10: What is the power range of the series?
A10: The series includes models with power ranging from 0.55kW to 110kW.
