High Efficiency Commercial Ventilation Fan Backward Inclined Blade Low Noise Box Type HVAC Fan
High Efficiency Commercial Ventilation Fan Backward Inclined Blade Low Noise Box Type HVAC Fan
Specifications
Operatingtemperature :
-20°C to 80°C
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Place of Origin :
China
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Brand Name :
Popula
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Material :
Steel / Stainless Steel
Supply Ability :
100000 Sets/week
MOQ :
1 set
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Certification :
CE, UL, Rohs
Payment Terms :
T/T
Inletdiameter :
200 - 1200 mm
Description

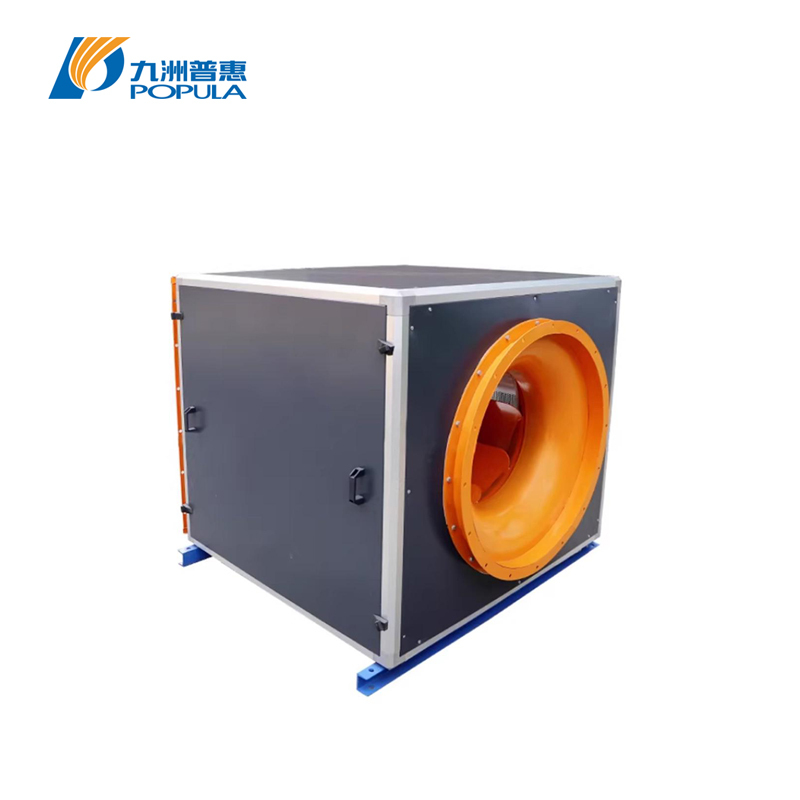

ATF Box Type Supply & Exhaust Fan

* Model No.3.6A~8.0A of ATF box fan adopts single-plate backward inclined arc impeller blade, compact integral box casing structure with direct-coupled motor layout. ·

* All impeller components pass strict static & dynamic balance calibration for low vibration, stable running and low noise during continuous ventilation operation. ·

* Compact cabinet design saves installation space and facilitates daily maintenance; dual optional voltage (220V single-phase /380V three-phase) matches different regional power supply standards. ·

* Standard square inlet/outlet connects directly with common rectangular ventilation pipeline for quick field installation for ventilation & fire linkage exhaust project. ·

* Diversified rotating speed configuration covers wide air volume and static pressure range to satisfy regular air exchange and emergency smoke exhaust dual working condition.

ATF Model Features:

Material Properties

Featured by small footprint, easy installation & convenient maintenance, ATF series fans are professional ventilation equipment for air supply, exhaust and matched fire smoke exhaust system of high-end hotels, civil buildings, shopping malls, entertainment venues, cinemas and gymnasiums. Standard unit is equipped with regular asynchronous motor; B-ATF explosion-proof variant fitted with YB flameproof motor is customized for fire exhaust in flammable environment. F-ATF full stainless steel customized version is available for slightly corrosive gas ventilation, keeping identical airflow parameters and installation dimension as standard carbon steel fan.

Benefits

Standard ATF fan transports clean non-corrosive, non-flammable harmless ambient air for daily fresh air exchange and emergency fire smoke exhausting; conveyed medium excludes sticky viscous substance and over-limit hard particulate, normal working medium temperature ≤80℃.

Fan Structure

B-ATF explosion-proof box fan shares consistent technical performance, outline dimension and foundation installation size with standard ATF fan, only driving motor is replaced with explosion-proof specification.

Model Selection

Rotating speed options:940/960/1420/1440/1450/2900r/min with matched power ranging from 0.75kW up to 7.5kW, diversified speed-power collocation realizes wide flow & static pressure range to satisfy conventional ventilation and fire smoke exhaust pipeline resistance requirement; detailed matching parameters are recorded in ATF official product manual.

机号 (Model) 功率 (kW) 电压 (V) 转速 (r/min) 流量 (m³/h) 全压 (Pa) 静压 (Pa)
3.6A 0.75 220/380 1420 1558~3636 381~133 362~100
3.6A 2.2 220/380 2900 3180~6200 1589~555 1510~420
4.0A 1.1 220/380 1440 2268~4638 427~200 420~191
4.5A 1.5 220/380 1450 3302~6472 550~284 540~265
5.0A 2.2 220/380 1450 4806~9175 697~329 671~247
5.6A 3 220/380 1450 5810~12595 873~397 870~378
6.0A 1.1 380 940 4430~9630 407~186 404~179
6.0A 4 380 1450 6692~14546 928~443 922~428
6.0A 5.5 380 1450 7604~17196 985~501 983~478
7.0A 2.2 380 960 5181~14976 581~258 551~214
7.0A 7.5 380 1450 7954~23041 1325~583 1256~486
8.0A 5.5 380 960 11323~23124 927~486 770~414



Q1: Can ATF fan be used for both daily ventilation and fire emergency smoke exhaust?
A1: Yes, the series is specially designed for dual-use: regular fresh air supply/exhaust and matched fire protection smoke exhaust system for commercial buildings.

Q2: Are 220V single-phase and 380V three-phase both available?
A2: Small-size models support dual 220/380V, large power specifications adopt standard 380V three-phase power input.

Q3: Can explosion-proof ATF be customized for chemical building fire exhaust?
A3: B-ATF explosion-proof fan with flameproof motor is available for flammable space ventilation and smoke exhaust.

Q4: Is stainless steel casing optional for coastal high-humidity corrosive environment?
A4: F-ATF full stainless steel version resists salt mist corrosion, same installation size and performance as carbon steel fan.

Q5: What is the limited working temperature of conveying air?
A5: Standard carbon steel model works under ≤80℃ clean air without sticky impurities and excessive dust particles.

Q6: Can outlet angle be adjusted to match existing building duct?
A6: Multiple outlet directions can be preset during production to fit on-site pipeline layout.

Q7: How to select proper ATF model for hotel ventilation & fire exhaust project?
A7: Provide required airflow, pipeline total resistance and building floor area, we match corresponding model, power and rotating speed.

Q8: Do you provide CE certified motor for European construction projects?
A8: Standard motor complies with IEC standard, CE-certified motor can be equipped as customized order for EU customers.

Q9: What’s your factory warranty period for ATF series?
A9: 12-month warranty against manufacturing defects starting from shipment date; wearing parts such as bearings are excluded from free warranty.

Q10: Can VFD motor be equipped for stepless airflow adjustment?
A10: Variable frequency motor is optional on request to realize flexible air volume adjustment under variable working load.
