Ultra Low Noise Cabinet Type Centrifugal Fan 46 DB Box Fan With Multi Blade Impeller
Ultra Low Noise Cabinet Type Centrifugal Fan 46 DB Box Fan With Multi Blade Impeller
Ultra Low Noise Cabinet Type Centrifugal Fan 46 DB Box Fan With Multi Blade Impeller
Ultra Low Noise Cabinet Type Centrifugal Fan 46 DB Box Fan With Multi Blade Impeller
Ultra Low Noise Cabinet Type Centrifugal Fan 46 DB Box Fan With Multi Blade Impeller
Ultra Low Noise Cabinet Type Centrifugal Fan 46 DB Box Fan With Multi Blade Impeller
Specifications
Motorpower :
0.5 kW - 30 kW
Type :
Centrifugal
Payment Terms :
T/T
MOQ :
1 set
Operatingtemperature :
-20°C to 80°C
Brand Name :
Popula
Productname :
Industrial Centrifugal Fan
Speed :
500 - 3600 RPM
Noiselevel :
65 - 85 dB
Pressurerange :
500 - 5000 Pa
Mountingtype :
Horizontal / Vertical
Delivery Time :
2 two days for sampe order and 10 days for bulk order
Supply Ability :
100000 Sets/week
Outletdiameter :
150 - 1000 mm
Application :
Ventilation, Dust Collection, Material Handling
Airflowcapacity :
1000 - 50000 CFM
Material :
Steel / Stainless Steel
Protectionclass :
IP54 / IP55
Powersupply :
220V / 380V / 440V
Place of Origin :
China
Certification :
CE, UL, Rohs
Inletdiameter :
200 - 1200 mm
Description

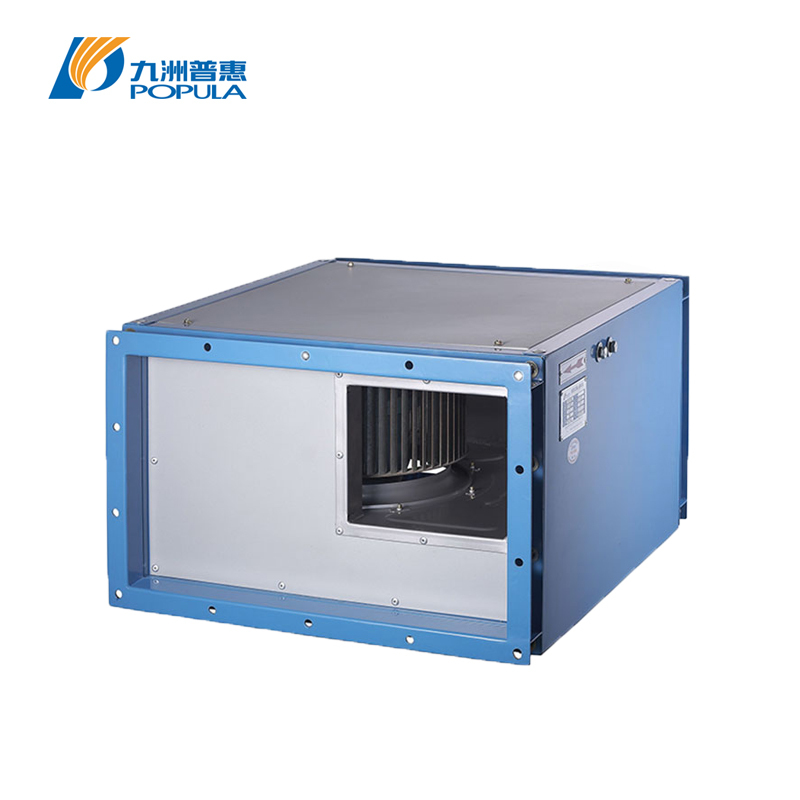

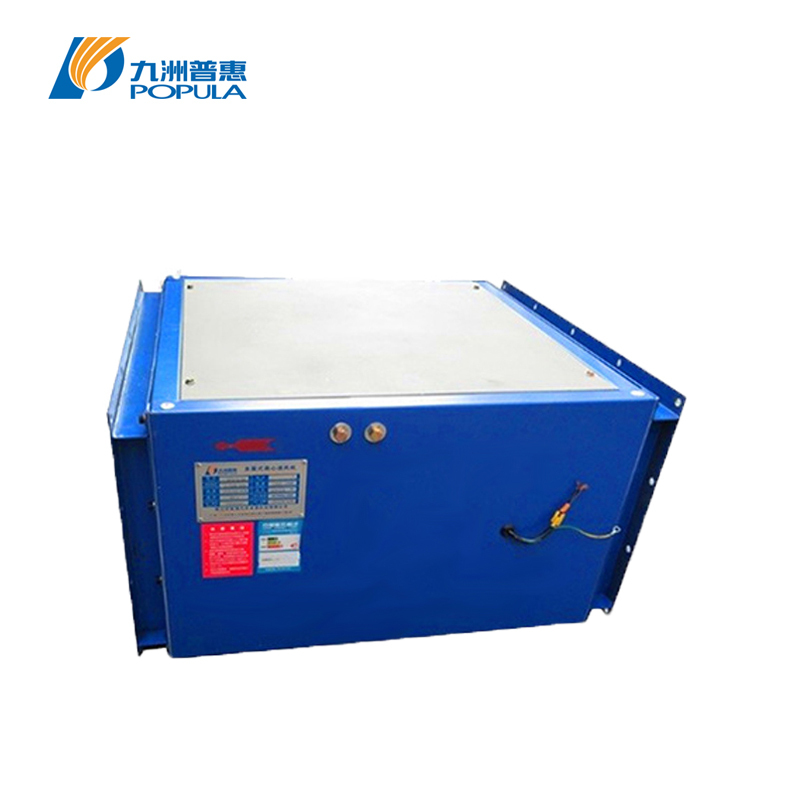

Cabinet Type Centrifugal Fan (Box Fan)

* Model No.1.4~3.5 of cabinet centrifugal fan consists of multi-blade impeller, fully enclosed square cabinet casing, rectangular flange inlet/outlet and built-in direct-drive motor. ·

* The impeller is composed of dozens of forward curved multi-wing blades, front and rear wheel plates for stable airflow output. ·

* This cabinet ventilation fan is made of high-quality carbon steel plate; all impellers pass strict static & dynamic balance inspection, featuring high aerodynamic efficiency, compact layout and low running noise. ·

* The whole fan adopts integrated sealed box structure with standard rectangular flanges on both ends, convenient for direct inline pipeline connection without extra conversion fittings. ·

* The cabinet side is reserved with maintenance access panel for easy internal overhaul of impeller and motor; optimized inner flow channel guides airflow smoothly into impeller to reduce wind loss.

Cabinet Fan Model Features:

Material Properties

Featured by compact cabinet layout, low vibration, low noise and easy pipeline matching, box-type centrifugal fans are widely used for kitchen fume exhaust, factory workshop ventilation, building pipeline air supply and waste gas exhausting for catering and industrial projects. Standard cabinet fan is equipped with common three-phase asynchronous motor; explosion-proof version with YB flameproof motor and SUS304 stainless steel cabinet variant are optional for corrosive or flammable waste gas treatment on request.

Benefits

Standard cabinet fan is suitable for transporting clean air and harmless non-explosive gas. Equipped with explosion-proof motor, B-type explosion-proof cabinet fan can exhaust volatile combustible gas. The conveyed medium shall not contain sticky substance and coarse granular dust, dust concentration ≤150mg/m³, medium working temperature ≤80℃.

Fan Structure

Explosion-proof B-series and anti-corrosion F-series cabinet fans keep identical airflow performance, outline dimension and installation flange size with standard carbon steel cabinet fan, only motor or cabinet material is replaced accordingly.

Model Selection

Each model (1.4/2.5/3/3.5) is available with multiple rotating speed options to adjust flow rate and total pressure to match different pipeline resistance.

Model Power(kW) Speed(r/min) Airflow(m³/h) Static Pressure(Pa) Noise(dB(A))
1.4 0.1 2320 208-418 172-346 ≤49
2.5 0.04 390 450-600 80-100 ≤46
2.5 0.09 900 560-800 105-142 ≤53
2.5 0.25 1380 860-1200 225-330 ≤61
3 0.09 690 800-1260 100-156 ≤52
3 0.18 900 1060-1640 158-246 ≤58
3 0.75 1380 1620-2510 370-578 ≤68
3.5 0.25 690 1286-1993 126-197 ≤57
3.5 0.45 900 1678-2599 214-335 ≤60

Q1: What are the main applications of the CFG fan?
A1: It is designed for ventilation in hotels, shopping malls, and residential buildings.
Q2: What temperature conditions can the fan withstand?
A2: The fan handles air temperatures up to 60°C.
Q3: What noise levels can be expected?
A3: Noise levels range from ≤46 to ≤68 dB(A), depending on the model.
Q4: Is the fan suitable for continuous operation?
A4: Yes, the fan is designed for long-term continuous use in commercial ventilation systems.
Q5: How do I choose the right model for my application?
A5: Consider the required airflow, pressure, noise tolerance, and installation space. The series offers models with different capacities to suit various needs.
Q6: What maintenance is required for the CFG fan?
A6: Regular cleaning of the impeller and casing, as well as periodic checks of the motor, are recommended to ensure optimal performance.
Q7: Can the fan be used for both supply and exhaust ventilation?
A7: Yes, the fan is suitable for both supply and exhaust applications in duct systems.
Q8: What certifications does the CFG series have?
A8: The series meets international quality standards. CE-certified versions are available for European customers.
Q9: Is the fan easy to install?
A9: Yes, the compact duct-mounted design allows for easy installation in various ventilation systems.
Q10: What is the power range of the series?
A10: The series includes models with power ranging from 0.04kW to 0.75kW.
