Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
Specifications
Brand Name :
Polcd
Model Number :
P028B122-IPS
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Number of Pixel :
240RGB(H)x320(V)
Screen Size :
2.8 inch
Display area :
43.20(H)x57.60(V)
Brightness (cd/m²) :
300
Interface :
MCU 8/16bit
Driver Ic :
ST7789V
Description

Description:

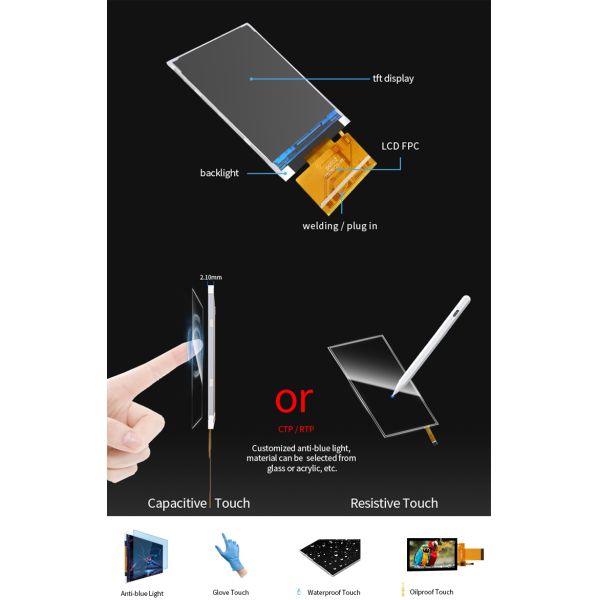

2.8 inch IPS TFT LCDs are commonly used in various electronic devices, including handheld gaming devices, industrial controllers, portable multimedia players, medical devices, and automotive displays, among others. Their compact size, high-quality display performance, and low power consumption make them a reliable and versatile display solution for various applications. The customizable display driver in some models also allows for greater flexibility and control over the display performance and features, making them suitable for a wide range of applications.


Parameter:

Model

P028B055-IPS

Screen Size

2.8 inch

Number of Pixel

240RGB(H)x320(V)

Display area

43.20(H)x57.60(V)mm

Pixel pitch

0.06(H)x0.18(V)mm

Pins

15 pins

Outline Dimension

50.00x69.20x2.30mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally Black

Viewing Direction(eye)

ALL

Display Color

262K

Luminance(cd/m2)

300 nit

Contrast Ratio

800:1

Interface

4-wire SPI

Back-light

LED Side-light type

Drive IC

ST7789V

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃

Polcd Small 2.8 inch 240x320 QVGA High Brightness 300nits MCU RGB interface IPS TFT display
