Specifications
Brand Name :
Polcd
Model Number :
P028B122-IPS
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Number of Pixel :
240RGB(H)x320(V)
Screen Size :
2.8 inch
Display area :
43.20(H)x57.60(V)
Brightness (cd/m²) :
300
Interface :
MCU 8/16bit
Driver Ic :
ST7789V
Description

Parameter:

Model

P028B055-IPS

Screen Size

2.8 inch

Number of Pixel

240RGB(H)x320(V)

Display area

43.20(H)x57.60(V)mm

Pixel pitch

0.06(H)x0.18(V)mm

Pins

15 pins

Outline Dimension

50.00x69.20x2.30mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally Black

Viewing Direction(eye)

ALL

Display Color

262K

Luminance(cd/m2)

300 nit

Contrast Ratio

800:1

Interface

4-wire SPI

Back-light

LED Side-light type

Drive IC

ST7789V

Operation Temperature

-20~70℃

Storage Temperature

-30~80℃

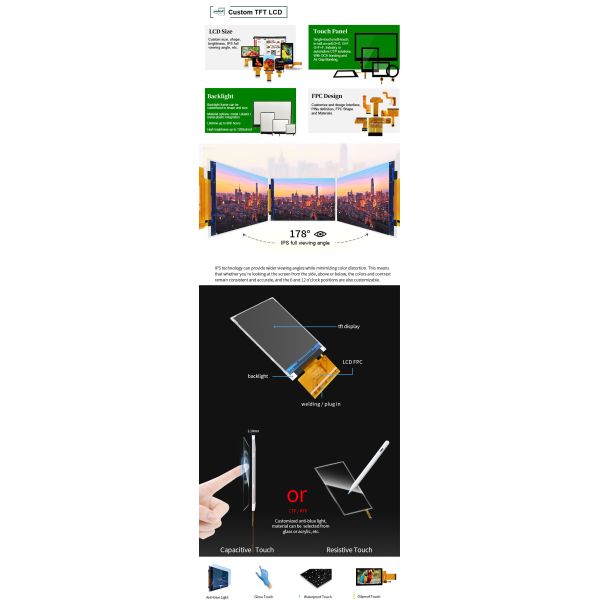

We offer various customization options to meet specific application requirements. Here are some common customization options for 2.8 inch IPS TFT LCDs:

Cover Glass: Manufacturers may offer the option to add a protective cover glass to the display panel to protect it from scratches, dust, and other contaminants.

Backlight Brightness: Manufacturers may offer the option to adjust the backlight brightness of the display panel to meet specific application requirements. This can help optimize the display performance for different lighting conditions.

Display Driver Settings: Manufacturers may offer the option to modify the display driver settings, such as gamma correction, color temperature, and contrast, to fine-tune the display performance for specific applications.

Touch Interface: Manufacturers may offer the option to add a touch interface to the display panel, allowing for interactive input and control. The touch interface may use resistive, capacitive, or other touch technologies.

Interface Type: Manufacturers may offer the option to choose from different interface types, such as the 8-bit or 16-bit parallel interface, SPI (Serial Peripheral Interface), or I2C (Inter-Integrated Circuit).

Viewing Angle: Manufacturers may offer the option to customize the viewing angle of the display panel, optimizing the display performance for specific applications and environments.

Temperature Range: Manufacturers may offer the option to customize the temperature range of the display panel, making it suitable for use in extreme temperature environments.

Overall, customization options for 2.8 inch IPS TFT LCDs can help optimize the display performance and functionality for specific applications, providing a reliable and versatile display solution.
