Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
Specifications
Brand Name :
Polcd
Model Number :
P035C074
Certification :
RoHS, ISO9001
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Please contact us for latest price
Payment Terms :
T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union
Supply Ability :
40,000 PCS per day
Delivery Time :
1-7 working days
Packaging Details :
FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm
Number of Pixel :
320xRGBx480
Screen Size :
3.5 inch
Display area :
48.96(H)x73.44(V)
Brightness (cd/m²) :
400
Interface :
4Line SPI
Driver Ic :
ILI9488
Description

TFT Display Description:

This is a 3.5-inch TFT LCD display with a 4-line SPI interface and a 12 o'clock viewing angle. It provides high-quality display performance and is easy to integrate into various electronic devices. With a compact design and low power consumption, it is a reliable solution for applications that require a small display with clear images.

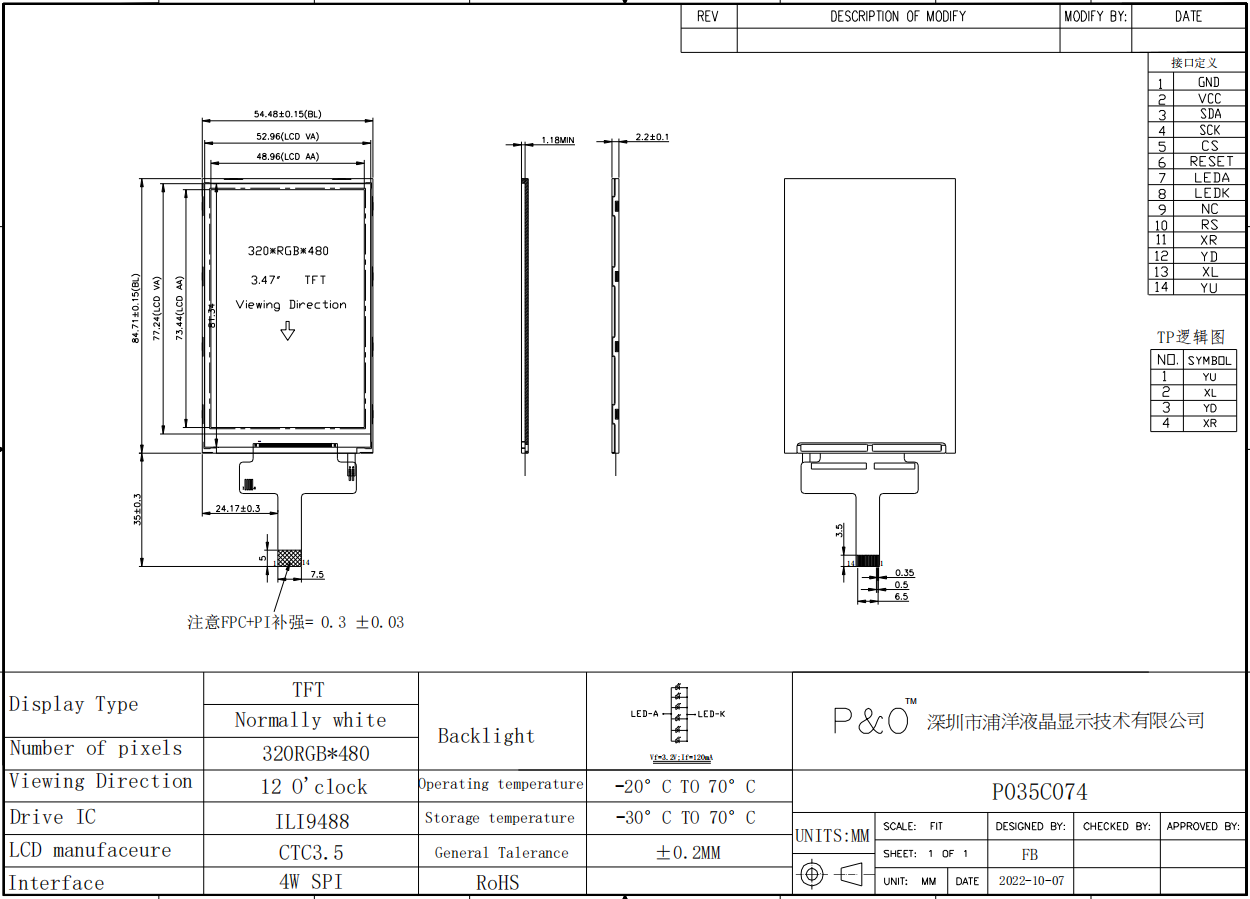

Parameter:

Model No.

P035C074

Screen Size

3.5 inch

Number of Pixel

320RGB(H)x480(V)

Pin

14 pin

Display area

48.96(H)x73.44(V)mm

Pixel pitch

0.153(H)x0.153(V)mm

Outline Dimension

54.48x84.71x2.20

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally White

Viewing Direction(eye)

12 0'CLOCK

Display Color

262K

Luminance(cd/m2)

400 nit

Contrast Ratio

500:1

Interface

4Line SPI

Back-light

LED Side-light type

Drive IC

ILI9488

Operation Temperature

-20~70 ℃

Storage Temperature

-30~80 ℃



Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD

Polcd High Brightness 3.5 Inch TFT LCD Display Module SPI Interface Colorful Resolution 320x480 LCD
