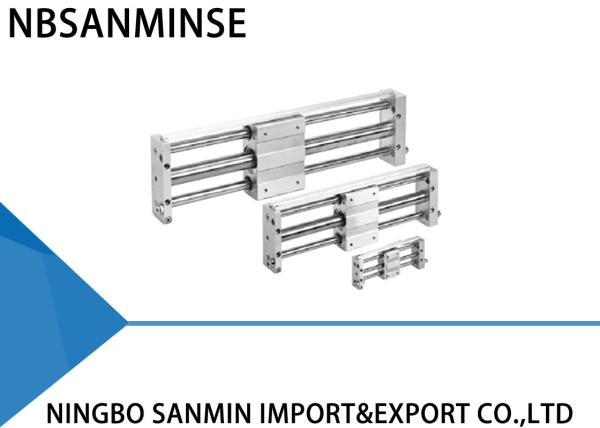

Ball Bushing Bearing Pneumatic Air Cylinder Magnetically Coupled Rodless
Ball Bushing Bearing Pneumatic Air Cylinder Magnetically Coupled Rodless
Specifications
Brand Name :
NBSANMINSE
Model Number :
CY1L
Certification :
ISO9001
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Bore Size :
6 , 10 , 15 , 20 , 25 , 32 , 40 mm
Fluid :
Air
Proof Pressure :
1.05MPa
Temperature :
- 10 to 60 ℃ ( No Freezing ）
Piston Speed :
50 to 500 mm/s
Cushion :
Rubber bumper / Shock absorber
Description

CY1L Magnetically Coupled Rodless Cylinder Slider Type Ball Bushing Bearing Pneumatic Cylinder



Specifications


Bore Size ( mm ) 6 10 15 20 25 32 40
Fluid Air
Proof Pressure 1.05MPa
Max pressure 0.7MPa
Min pressure 0.18MPa
Ambient and fluid temperature -10 to 60 ℃
Piston speed 50 to 500 mm/s
Cushion Rubber Bumper / Shock absorber
Lubrication Not required ( Non – lube )
Holding Force ( N ) Type H 19.6 53.9 137 231 363 588 922
Type L - - 81.4 154 221 358 569
Standard equipment Auto switch mounting rail



Standard Stroke


Bore Size (mm) Standard stroke ( mm ) Maximum available stroke (mm)
6 50 , 100 , 150 , 200 300
10 50 , 100 , 150 , 200 , 250 , 300 500
15 50 , 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 750
20 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 , 600 , 700 , 800 1000
25 1500
32
40 100 , 150 , 200 , 250 , 300 , 350 , 400 , 450 , 500 , 600 , 700 , 800 , 900 , 1000 1500


Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .



FAQ


Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .


Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

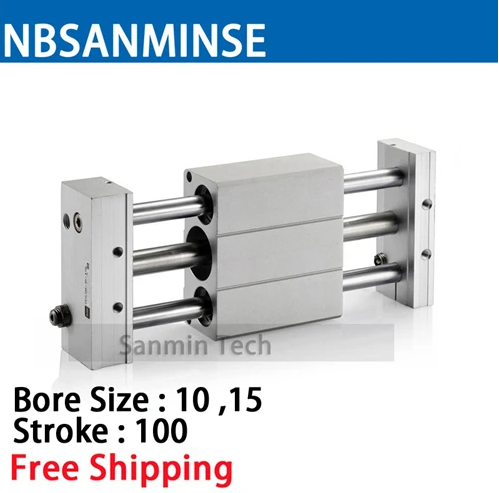

Ball Bushing Bearing Pneumatic Air Cylinder Magnetically Coupled Rodless

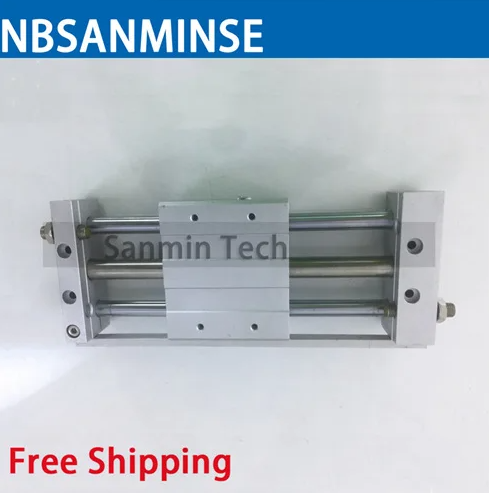

Ball Bushing Bearing Pneumatic Air Cylinder Magnetically Coupled Rodless

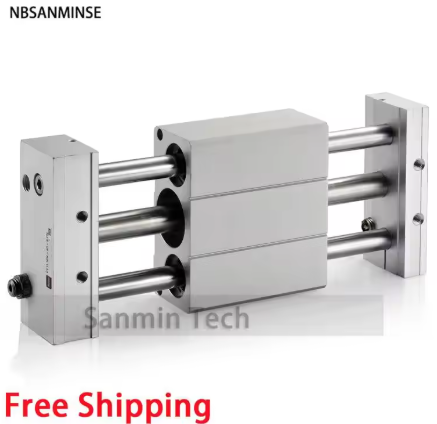

Ball Bushing Bearing Pneumatic Air Cylinder Magnetically Coupled Rodless
