10A-5ST adjustable air cylinder Heavy type long service life
10A-5ST adjustable air cylinder Heavy type long service life
Specifications
Brand Name :
NBSANMINSE
Model Number :
10A-5ST
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Proof Pressure :
15bar
Operating Speed Range :
50-700mm/s
Operating Pressure :
1~10 bar
Operating Temp :
-25~80℃
Lubrication :
Not required
Material :
Aluminum
Description

I.Features:

This product is developed based on the QGEW-2 series double piston rod cylinder. It is composed by extending the thread length at the piston rod end and installing an adjusting screw sleeve. Adjusting the stroke-adjusting screw sleeve can effectively adjust the extension stroke of the cylinder

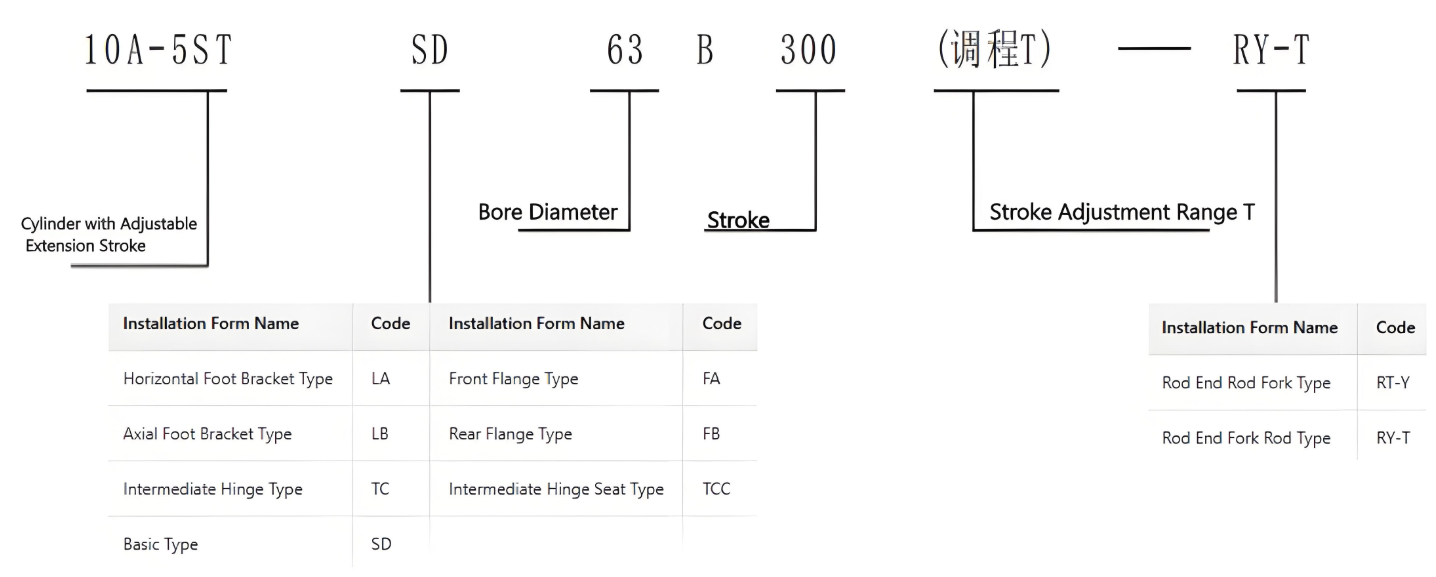

II.Model:

10A-5ST adjustable air cylinder Heavy type long service life

SD:

Installation Form Name Code Installation Form Name Code
Horizontal Foot Bracket Type LA Front Flange Type FA
Axial Foot Bracket Type LB Rear Flange Type FB
Intermediate Hinge Type TC Intermediate Hinge Seat Type TCC
Basic Type SD

RY-T:

Instllation Form Name Code
Rad End Rod Fork Type RT-Y
Rod End Fork Rod Type RY-T

III. Main Technical Parameters:

Cylinder Bore Diameter D (mm) φ32 φ40 φ50 φ63 φ80 φ100 φ125 φ160 φ200
Maximum Stroke S (mm) 500 800 1600
Operating Pressure Range 1~10 bar
Proof Pressure 15 bar
Operating Speed Range 50-700mm/s
Operating Temperature Range -25-+80℃ (under non-freezing conditions)
Working Medium Purified compressed air
Lubrication Not required (Lubrication optional)
Cushion Adjustable cushion on both sides
Cushion Stroke (mm) 25 25 28

IV. Graphical Symbols, Outline and Installation Dimensions

Standard Type

SD (Basic Type)

10A-5ST adjustable air cylinder Heavy type long service life

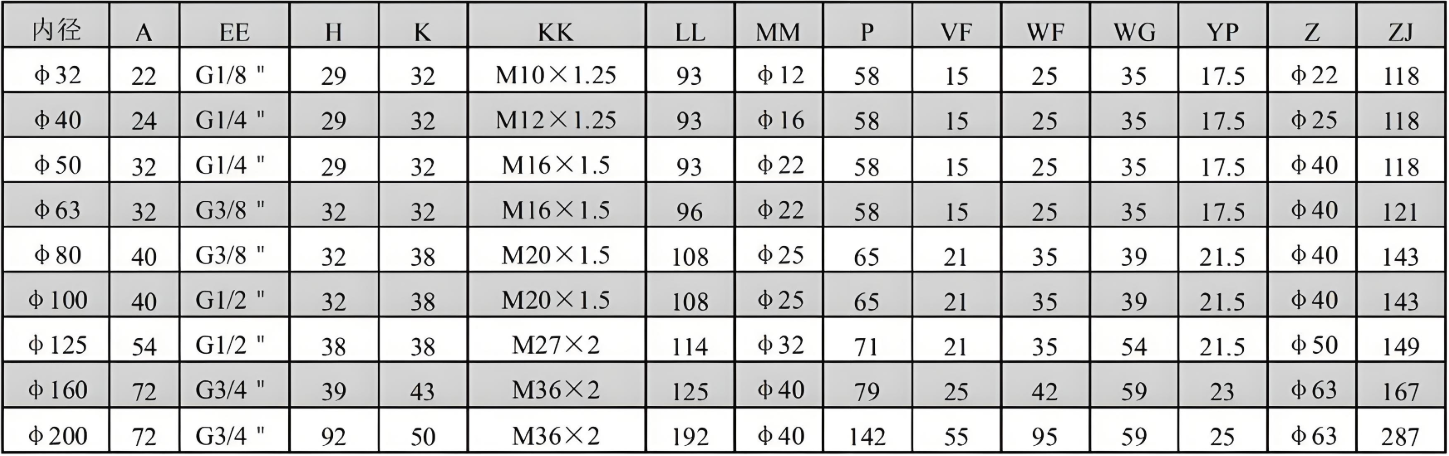

Dimension Table:

10A-5ST adjustable air cylinder Heavy type long service life
