QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads
QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads
Specifications
Brand Name :
NBSANNINSE
Model Number :
QGaB QGbB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Working Pressure :
1.5~8 (bar)
Proof Pressure :
12 (bar)
Stroke :
20～200(mm)
Operating Temp :
-25 ～ +80(℃)
Bore :
Φ40 (mm)
Material :
Aluminum
Description

I. Features

1.It is a derivative product of QGA and QGB series cylinders.

2.The piston rod diameter is larger than the standard size, with good rigidity and can bear large loads.

II. Graphical Symbols

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loadsCylinder without Cushion

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loadsCylinder with Cushion

III. Model

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

IV. Main Technical Parameters
Model QGAb,QGBb
Bore (mm) Φ40 Φ50 Φ63 Φ80 Φ100 Φ125 Φ160 Φ200
Stroke (mm) 20～200 25～250 30～300 40～400 50～1000 63～1250 80～1600 100～2000
Working Pressure (bar) 1.5～8
Proof Pressure (bar) 12
Operating Temperature Range (℃) -25 ～ +80 (under non-freezing conditions)
Working Medium Purified compressed air with oil mist

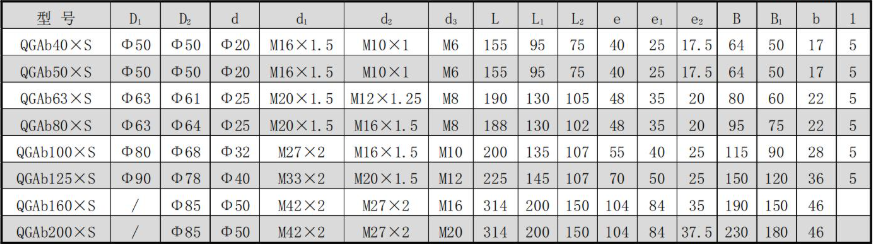

V. Outline and Installation Dimensions

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

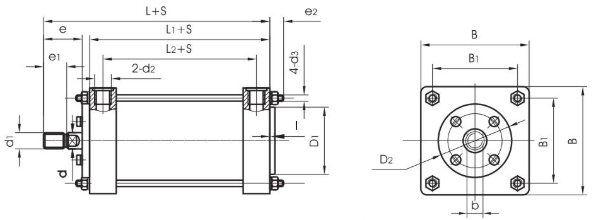

Outline Drawing of QGAb Type Cylinder

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads
