CXSJ Dual Rod Pneumatic Air Cylinder Compact Type SMC Air Cylinders Non - Lube
CXSJ Dual Rod Pneumatic Air Cylinder Compact Type SMC Air Cylinders Non - Lube
CXSJ Dual Rod Pneumatic Air Cylinder Compact Type SMC Air Cylinders Non - Lube
CXSJ Dual Rod Pneumatic Air Cylinder Compact Type SMC Air Cylinders Non - Lube
Specifications
Brand Name :
NBSANMINSE
Model Number :
CXSJ
Certification :
ISO9001
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000PCS
Delivery Time :
5-30days
Packaging Details :
Box
Bore Size :
6 , 10 , 15 , 20 , 25 , 32mm
Fluid :
Air ( Non - lube )
Cushion :
Rubber bumper on both ends
Stroke range :
0 to - 5 mm compared to the standard stroke
Port Size :
M3 × 0 . 5 , M5 × 0 . 8 , Rc 1 / 8
Standard Stroke :
10 - 100
Description

CXSJ Dual Rod Cylinder / Compact Type Pneumatic Cylinder SMC Similar Type

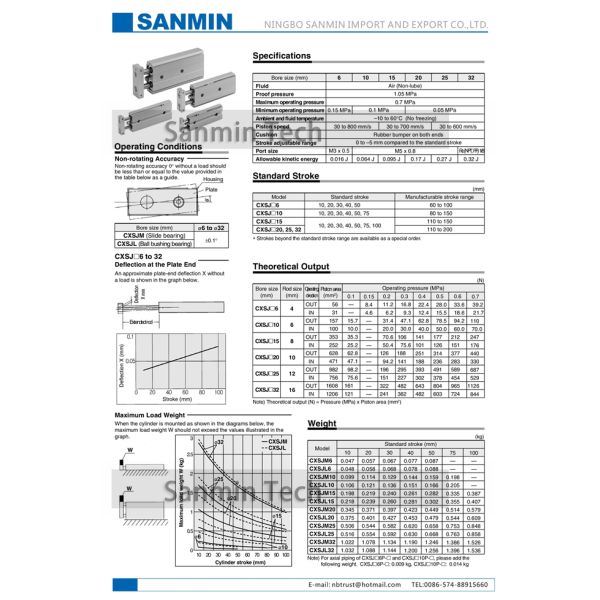

Specifications


Bore Size (mm) 6 10 15 20 25 32
Fluid Air ( Non – lube )
Proof Pressure 1.05 MPa
Max pressure 0.7 MPa
Min pressure 0.15MPa 0.1MPa 0.05MPa
Ambient and fluid temperature - 10 to 60 ℃ ( No freezing )
Piston Speed 30 to 800 mm / s 30 to 700 mm / s 30 to 600 mm / s
Cushion Rubber bumper on both ends
Stroke adjustable range 0 to – 5 mm compared to the standard stroke
Port Size M3 × 0 . 5 M5 × 0 . 8 RC (NPT , PF)1 / 8
Allowable kinetic energy 0.016J 0.064J 0.095J 0.17J 0.27J 0.32J

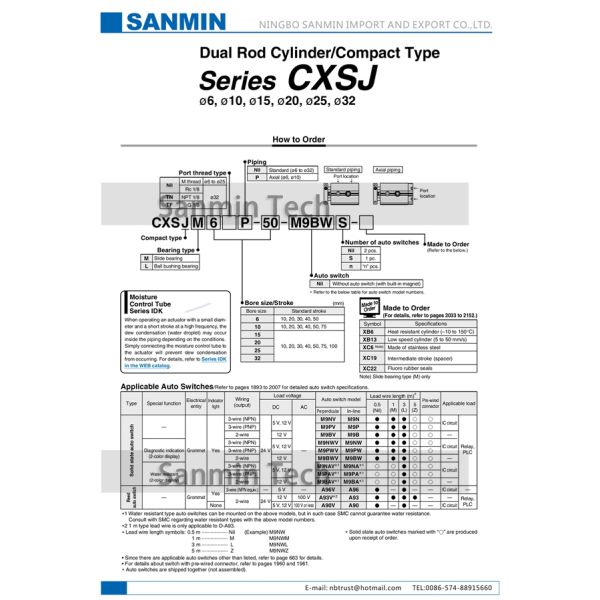

Standard Stroke ( mm )


Model Standard Stroke Manufacturable Stroke Range
CXSJ 6 10 , 20 , 30 , 40 , 50 60 to 100
CXSJ 10 10 , 20 , 30 , 40 , 50 , 75 80 to 150
CXSJ 15 10 , 20 , 30 , 40 , 50 , 75 , 100 110 to 150
CXSJ 20 , 25 , 32 110 to 200


Port Thread Type


Nil M thread φ 6 to φ 25
Rc 1 / 8 φ 32
TN NPT 1 / 8
TF G 1 / 8


Bearing type


M : Slide bearing

L : Ball bushing bearing


Piping


Nil : Standard ( φ 6 to φ 32 )

P : Axial ( φ 6 , φ 10 )


Bore size / Stroke


Bore Size Standard Stroke
6 10 , 20 , 30 , 40 , 50
10 10 , 20 , 30 , 40 , 50 , 75
15 10 , 20 , 30 , 40 , 50 , 75 , 100
20
25
32


Auto switch


Nil : Without auto switch ( with built - in magnet )


Number of auto switches


Nil : 2 pcs

S : 1 pc

N : “n” pcs


Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: High quality with competitive price .

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?

Focus Point High Temperature Environment Countermeasures Extreme Cold Environment Countermeasures
Seals Fluororubber, PTFE Low-temperature nitrile, silicone rubber, polyurethane
Lubrication High-temperature synthetic grease (low volatility) Low-temperature grease (low pour point, low viscosity)
Air Supply Treatment Strengthen cooling, efficient water removal Ultra-low dew point drying (refrigeration + adsorption type), heat tracing
Metal Components Reserve expansion clearance Select materials with low-temperature toughness, prevent leakage due to cold shrinkage
Control Components High heat-resistant grade coils, heat dissipation, low power consumption Install insulation boxes, local heating, prevent cold condensation
Installation Keep away from heat sources, add heat insulation plates Avoid exposure to wind and snow, wrap with thermal insulation materials
