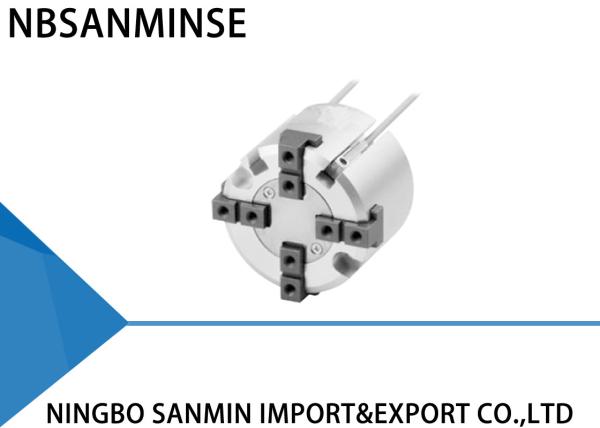

MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper
MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper
Specifications
Brand Name :
NBSANMINSE
Model Number :
MHS4
Certification :
ISO9001
Place of Origin :
China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Bore Size :
16 - 63
Fluid :
Air
Temperature :
- 10 to 60
Repeatability :
± 0 . 01
Lubrication :
Not required
Action :
Double acting
Description

MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper

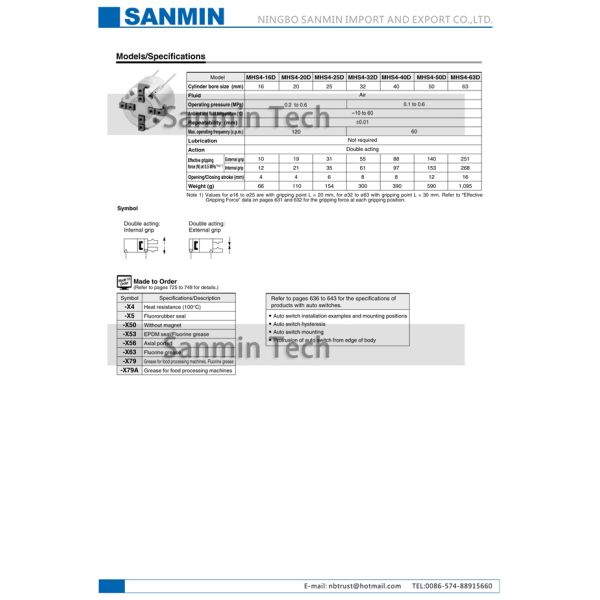

Models / Specifications

Model : MHS4 - 16D , MHS4 - 20D , MHS4 - 25D , MHS4 - 32D , MHS4 - 40D , MHS4 - 50D , MHS4 - 63D

Cylinder bore size ( mm ) : 16 - 63

Fluid : Air

Operating pressure ( MPa ) : 0 . 2 to 0 . 6 , 0 . 1 to 0.6

Ambient and fluid temperature ( ℃ ) : - 10 to 60

Repeatability (mm) : ± 0 . 01

Max . operating frequency ( c.p.m. ) : 120 , 60

Lubrication : Not required

Action : Double Acting

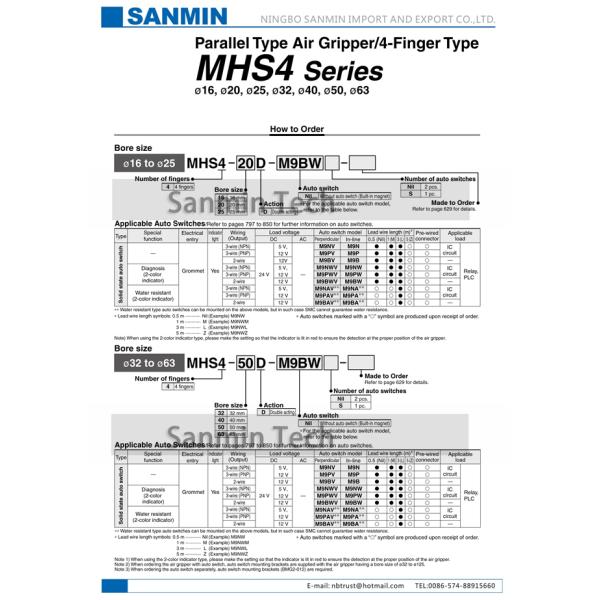

How to Order

Number of fingers

4 : 4 fingers

Bore size

16 : 16mm

20 : 20mm

25 : 25mm

Action

Double acting

Auto switch

Nil : without auto switch ( Built - in magnet )

MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air GripperMHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper
