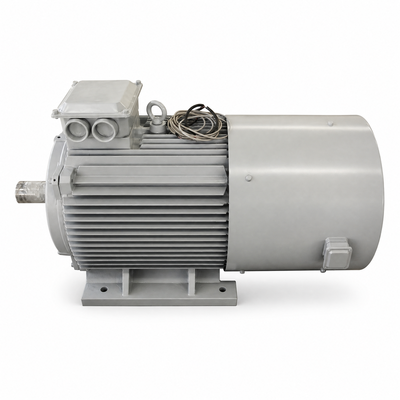

25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications
Specifications
Brand Name :
ENNENG
Poles :
20
Voltage Regulation :
<±3%
Phase :
Three Phase
Rotor Poles :
20
Delivery Time :
15-30 working days for stock models, 60-120 days for large or custom units
Packaging Details :
Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs
Efficiency :
>=92%
Protection Grade :
IP54
Model Number :
EPMG-25GO
Supply Ability :
2500 sets per year
Frequency :
50Hz / 60Hz
Place of Origin :
China
Price :
USD 1800-3200 / set
Insulation Class :
Class H
MOQ :
1 Set
Payment Terms :
T/T,L/C
Cooling Method :
Air Cooled
Rated Power :
25kW
Rated Speed :
300rpm
Certification :
CE
Rated Voltage :
400V AC
Description
25kW Grid Tie Off Grid Permanent Magnet Generator 400V 300rpm Three Phase
This 25kW grid tie off grid permanent magnet generator works in both on grid and island mode through a dual mode controller, making it a flexible core for village hybrid power systems combining wind, hydro and solar. The generator itself delivers stable voltage output so the controller can focus on power dispatch rather than excitation correction.
Key Features
  • Dual mode operation supports grid tie feed in and off grid island supply
  • Stable voltage output within ±3% keeps sensitive loads safe in island mode
  • 20 pole rotor at 300rpm matches small wind and low head hydro turbines
  • Three phase 400V design with neutral point available for single phase loads
  • CE certified with complete test report delivered per unit
Technical Parameters
Name 25kW Dual Mode Hybrid PMSG
Rated Power 25kW
Rated Voltage 400V AC
Phase Three Phase
Frequency 50Hz / 60Hz
Rated Speed 300rpm
Poles 20
Efficiency >=92%
Voltage Regulation <±3%
Protection Grade IP54
Insulation Class Class H
Cooling Method Air Cooled
Structure Diagram

25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications

Applications
Used in rural micro grids, farm hybrid systems, telecommunication tower power and island energy projects of 20-30kW class. Controller and dump load can be supplied as a complete package.
Application

25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications

Quality and Service
Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
