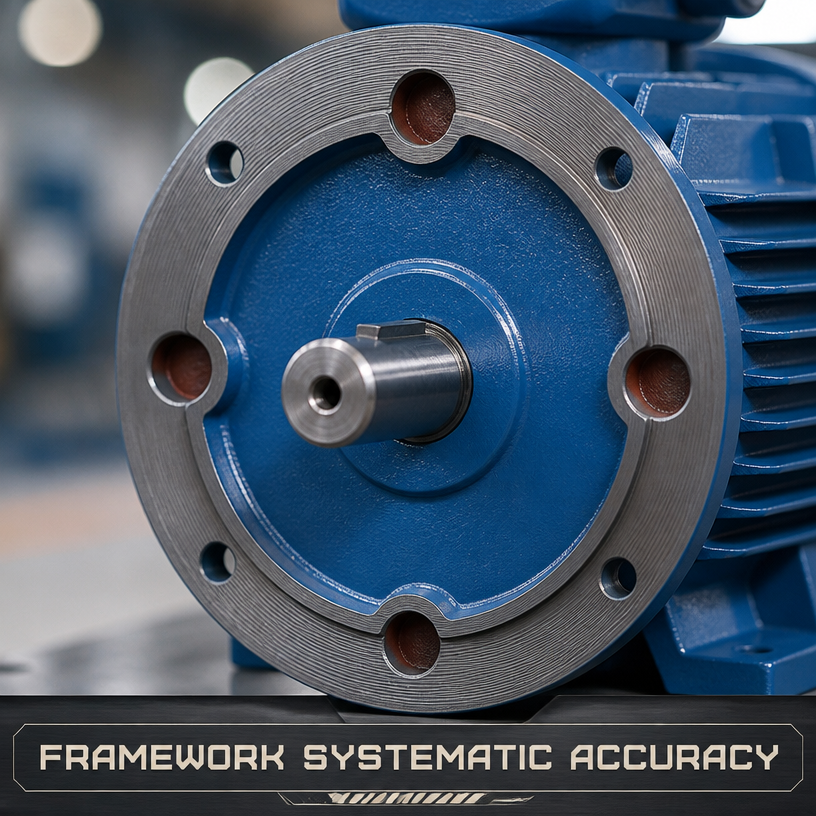

160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
160KW 90RPM Gearless Direct Drive Permanent Magnet Motor and Generator for High Torque Applications
Specifications
Supply Ability :
100 Sets per Month
Cooling Method :
IC411 Forced Fan Cooled
Mounting Type :
B3 Foot Mounted
Model Number :
ECER-GD-160
Payment Terms :
T/T,L/C,Western Union
Rated Speed :
90RPM
Noise Level :
<=75dB(A)
Efficiency Class :
IE4+ / IE5 Comparable
Place of Origin :
China
Pole Number :
66 Poles
Delivery Time :
15-30 working days
Insulation Class :
Class H
Protection Class :
IP55
Certification :
CE, ISO 9001
MOQ :
1 Piece
Magnet Type :
NdFeB Rare Earth
Rated Power :
160KW
Brand Name :
ECER
Rated Voltage :
660V / 1140V
Price :
USD 8800-16800 / Piece
Packaging Details :
Export plywood case with foam protection
Frequency :
50Hz
Description
160KW 90RPM Low Speed High Torque Permanent Magnet Motor Gearless Direct Drive
Product Overview

This 160KW Permanent Magnet Motor delivers 90RPM low speed high torque output through a gearless direct drive design, removing the gearbox, coupling and oil system from the drivetrain. As a multi-pole Permanent Magnetic Motor it produces rated torque directly at the driven shaft, which raises system efficiency, cuts spare parts inventory and reduces downtime on critical conveyor lines.

Fig.1 160KW Permanent Magnet Motor Structure Diagram
Key Features
  • Gearless direct drive eliminates gearbox oil, alignment and gear wear
  • Low speed high torque output at 90RPM without a reduction box
  • Multi-pole NdFeB rotor keeps torque smooth at low rotational speed
  • Higher total drivetrain efficiency than motor plus gearbox solutions
  • Lower noise and reduced maintenance for continuous mining duty
Technical Specifications
Rated Power160KW
Rated Voltage660V / 1140V
Frequency50Hz
Efficiency ClassIE4+ / IE5 Comparable
Rated Speed90RPM
Pole Number66 Poles
Protection ClassIP55
Cooling MethodIC411 Forced Fan Cooled
Insulation ClassClass H
Mounting TypeB3 Foot Mounted
Magnet TypeNdFeB Rare Earth
Noise Level<=75dB(A)
Applications

Ideal for mining belt conveyors, apron feeders, bucket elevators and heavy mixing systems where a gearless Permanent Magnet Motor with inherent low speed high torque capability simplifies the drivetrain.

Fig.2 160KW Permanent Magnetic Motor Industrial Application
Quality Assurance

Full load torque and temperature tests are performed on every gearless Permanent Magnetic Motor before shipment, with ISO9001 process control and an 18-month warranty included.

Model ECER-GD-160 is available for worldwide export. Request the technical file and lead time from our motor specialists today.
