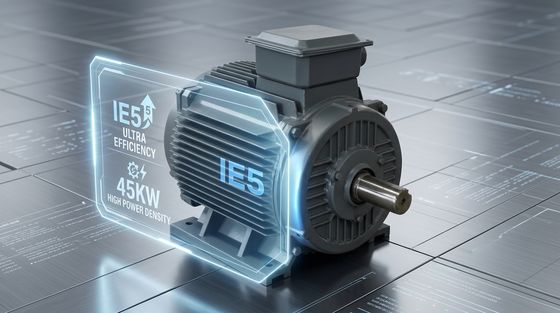

The ECER-PM-45-AF is a 45 kW, 380 V three phase Permanent Magnet Motor engineered for continuous industrial fan, blower and pump applications. Reaching the IE5 ultra premium efficiency class, this Permanent Magnetic Motor cuts electricity consumption by up to 30 percent compared with standard induction machines, giving plant operators a fast payback on retrofit and new build projects.

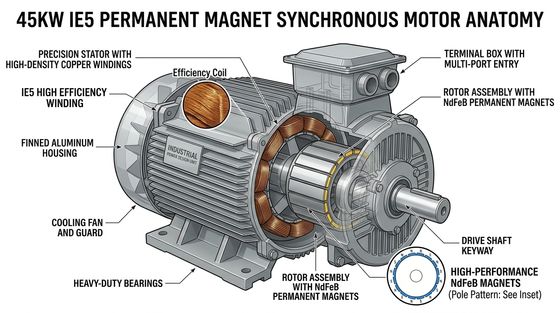

The rotor uses high grade NdFeB rare earth magnets with a brushless construction. Because there are no rotor bars or excitation losses, the Permanent Magnet Motor runs cooler and quieter than a conventional motor of the same frame, while delivering stable torque across a wide speed range when paired with a variable frequency drive.

• IE5 Ultra Premium Efficiency: Efficiency above 96 percent at rated load, compliant with IEC 60034-30-1 energy efficiency classes.
• Low Noise Operation: Precision balanced rotor keeps noise below 68 dB(A) for comfortable working environments.
• Maintenance Free: Brushless rotor with sealed bearings removes routine brush and slip ring maintenance.
• Energy Saving: The Permanent Magnetic Motor consumes less reactive energy and suits continuous duty fan and pump systems.
• OEM ODM Flexibility: Voltage, shaft, flange and nameplate can be customized for your equipment and branding.

This Permanent Magnet Motor is suited to large industrial fans, roof extractors, cooling tower fans, centrifugal blowers, circulation pumps and compressors where efficiency and quiet operation matter. It is a direct replacement for oversized IE1-IE3 induction motors in energy saving upgrade programs.

Every unit is fully load tested, vibration tested and insulation tested before shipment and packed in a reinforced export wooden case. An 18 month warranty and lifetime technical support are provided. Contact our engineering team for application review and quotation.
