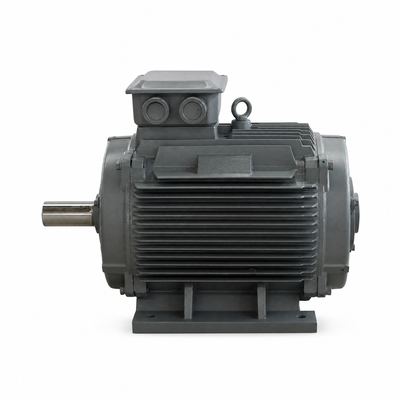

12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine
Specifications
Protection Grade :
IP54
MOQ :
1 Set
Rated Voltage :
400V AC
Supply Ability :
3000 sets per year
Place of Origin :
China
Certification :
CE
Price :
USD 900-1800 / set
Phase :
Three Phase
Rotor Type :
NdFeB permanent magnet
Brand Name :
ENNENG
Payment Terms :
T/T,L/C
Rated Power :
12kW
Delivery Time :
15-30 working days for stock models, 60-120 days for large or custom units
Insulation Class :
Class H
Cooling Method :
Air Cooled
Model Number :
EPMG-12BL
Poles :
30
Winding Material :
100% Copper
Packaging Details :
Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs
Frequency :
50Hz / 60Hz
Rated Speed :
200rpm
Efficiency :
>=90%
Description
12kW Brushless Permanent Magnet Generator 400V Three Phase for Wind Turbine
This 12kW brushless permanent magnet generator is a three phase PMSG designed for small wind turbine systems. The gearless rotor runs at low speed without carbon brushes, which removes brush wear and excitation loss, making the unit almost maintenance free for residential and farm wind power projects.
Key Features
  • Brushless excitation free structure, no carbon brush replacement during service life
  • Direct drive gearless design suitable for low speed wind rotors
  • NdFeB permanent magnet rotor keeps high torque density and stable output
  • Three phase 400V AC output with Class H insulation and 100% copper winding
  • IP54 protection for outdoor installation, CE certified
Technical Parameters
Name 12kW Brushless PM Wind Generator
Rated Power 12kW
Rated Voltage 400V AC
Phase Three Phase
Frequency 50Hz / 60Hz
Rated Speed 200rpm
Poles 30
Efficiency >=90%
Protection Grade IP54
Insulation Class Class H
Cooling Method Air Cooled
Winding Material 100% Copper
Structure Diagram

12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine

Applications
  • Suitable for 10-15kW small wind turbines
  • Off grid wind solar hybrid systems
  • Micro grid demonstration projects
Application

12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine

Customization Options

Custom rated voltage 220V, 380V, 480V and 60Hz version available on request.

Quality and Service

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available.

Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
