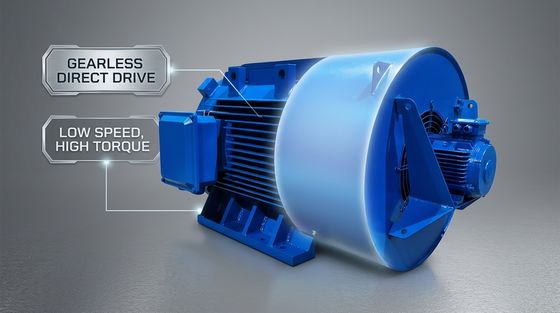

132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
Specifications
Delivery Time :
30-45 days
Rated Speed :
375 rpm
Starting Torque :
strong from standstill
Insulation Class :
Class H
Supply Ability :
300 sets per month
Number of Poles :
16 poles
Protection Grade :
IP55
Price :
Negotiable
Rated Voltage :
380 V AC, three phase
Model Number :
ECER-LSHT-132
Brand Name :
ECER PMM
Certification :
CE, ISO9001
Rated Power :
132 kW
Packaging Details :
Reinforced export wooden case with foam cushioning
MOQ :
1 set
Payment Terms :
T/T,L/C
Ambient Temperature :
-20°C to +45°C
Cooling Method :
IC411 forced ventilation
Place of Origin :
China
Mounting Type :
B3 / B5
Efficiency Class :
IE5 (above 96%)
Frequency :
50 Hz / 60 Hz
Description
132KW Low Speed High Torque Permanent Magnet Motor Gearless Direct Drive Mixer

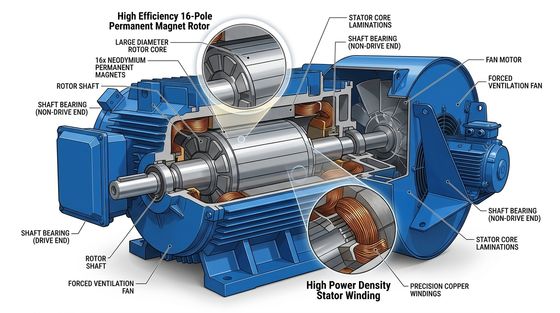

The ECER-LSHT-132 is a 132 kW Permanent Magnet Motor that produces high torque at low speed without a gearbox. With a 16 pole rotor running at 375 rpm, this Permanent Magnetic Motor replaces the combination of induction motor plus reduction gearbox, eliminating gear oil, coupling alignment and gear wear from the drivetrain.

Direct drive improves system efficiency, cuts spare parts inventory and lowers noise on site. The high pole count rotor keeps torque smooth even at low rotational speeds, which protects product quality in mixing and conveying processes.

132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
Key Features
  • Gearless Direct Drive: no gearbox means fewer failure points and zero gear oil maintenance.
  • High Torque at Low Speed: strong starting torque from standstill for heavy mixer and conveyor loads.
  • IE5 Efficiency: removes gearbox losses and rotor losses for measurable energy savings.
  • Compact Drivetrain: shorter machine footprint simplifies machine design and installation.
  • VFD Friendly: smooth speed control for process flexibility in batch and continuous lines.
Technical Specifications
Parameter Specification
Rated Power 132 kW
Rated Voltage 380 V AC, three phase
Frequency 50 Hz / 60 Hz
Number of Poles 16 poles
Rated Speed 375 rpm
Efficiency Class IE5
Cooling Method IC411 forced ventilation
Protection Grade IP55
Insulation Class Class H
Mounting Type B3 / B5 foot and flange
Applications

Typical applications for this Permanent Magnet Motor include ribbon and paddle mixers, apron and screw conveyors, kiln auxiliary drives, crushers, thickeners and winch drives. The gearless Permanent Magnetic Motor is also an excellent choice for retrofit projects that replace worn gearmotor assemblies.

132KW 375 RPM IE5 Efficiency Permanent Magnet Motor Gearless Direct Drive Permanent Magnet Generator
Packaging & Quality Assurance

Full load, vibration and temperature rise tests are performed on every motor before shipment. Reinforced export wooden case packing is standard. An 18 month warranty and lifetime technical support are included with every order.
