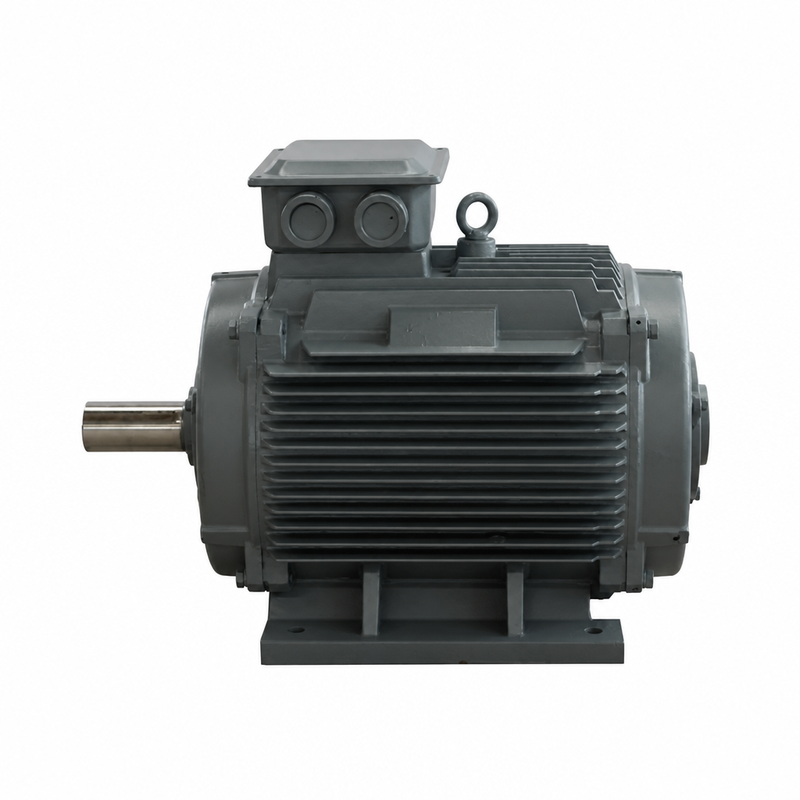

15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control
Specifications
Rated Speed :
1500 RPM
Encoder :
17 Bit Absolute
Phase :
Three Phase
Cooling Method :
IC411 Air Cooled
Ambient Temperature :
-10C to +45C
Brand Name :
ECER PMM
MOQ :
1 Set
Magnet Material :
NdFeB Rare Earth
Certification :
CE, ISO9001
Rated Voltage :
380V
Protection Grade :
IP54
Mounting Type :
IMB5 Flange
Insulation Class :
Class F
Price :
Negotiable
Packaging Details :
Export wooden case packaging
Rated Power :
15KW
Payment Terms :
T/T,L/C
Supply Ability :
500 Sets per Month
Place of Origin :
China
Delivery Time :
25-35 Days
Efficiency Class :
IE4
Description
Encoder Feedback 15KW Permanent Magnet Generator with Precision Speed Control
Product Overview

This 15KW permanent magnet generator features a 17-bit absolute encoder, enabling the drive to close the speed and position loop. Ideal for power generation and test bench applications requiring precise speed regulation and stable output.

Key Features
  • 17-bit absolute encoder for precise speed and position feedback
  • Closed loop control with matched drive compatibility
  • Stable output performance under varying load conditions
  • IE4 efficiency rating with rare earth rotor construction
  • Compact flange mounting for easy system integration
Working Principle

Technical Specifications
Parameter Value
Rated Power 15KW
Rated Voltage 380V AC
Rated Speed 1500 RPM
Encoder 17 Bit Absolute
Efficiency Class IE4
Magnet Material NdFeB Rare Earth
Insulation Class Class F
Protection Grade IP54
Cooling IC411 Air Cooled
Mounting IMB5 Flange
Applications

Closed loop power generation, test benches, dynamometer systems, and precision drive applications.

Ordering Information

The 15KW encoder generator can be matched to your specific drive and feedback protocol requirements. Please advise your control specifications, then contact us for a quotation and encoder datasheet.
