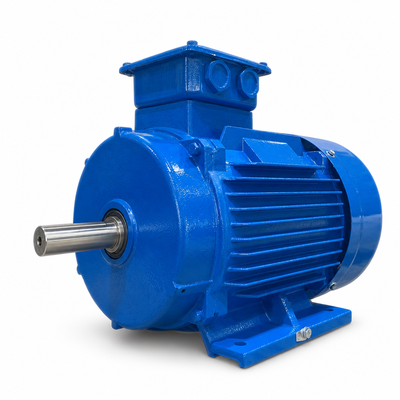

80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG
Specifications
Speed Range :
30-150rpm
Voltage Frequency :
Linear voltage frequency characteristic
Delivery Time :
15-30 working days for stock models, 60-120 days for large or custom units
Payment Terms :
T/T,L/C
Model Number :
EPMG-80VS
Certification :
CE
MOQ :
1 Set
Brand Name :
ENNENG
Price :
USD 5500-9500 / set
Supply Ability :
800 sets per year
Cooling Method :
Forced Air Cooled
Insulation Class :
Class H
Rated Voltage :
690V AC
Poles :
48
Rated Power :
80kW
Phase :
Three Phase
Place of Origin :
China
Frequency :
Converter to 50/60Hz
Efficiency :
>=93%
Rated Speed :
150rpm
Protection Grade :
IP54
Packaging Details :
Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs
Description
80kW Variable Speed Permanent Magnet Generator 690V for Wind Turbine PMSG

This 80kW variable speed permanent magnet generator matches the torque speed curve of modern wind turbines through a full power converter. The wide speed range from 30rpm to 150rpm lets the turbine harvest energy from cut in breeze to rated wind, while the 690V three phase PMSG winding keeps transmission loss low on medium length tower cables.

Key Features
  • Wide speed range 30-150rpm with linear voltage frequency characteristic for MPPT control
  • 690V output reduces cable current and copper loss in tower and trench wiring
  • SKF bearings and sealed terminal box designed for 20 year wind farm service
  • Dustproof IP54 enclosure with forced air cooling under full load
  • Compatible with common wind converter brands via standard terminal layout
Technical Parameters
Name 80kW Variable Speed Wind PMSG
Rated Power 80kW
Rated Voltage 690V AC
Phase Three Phase
Frequency Converter to 50/60Hz
Rated Speed 150rpm
Speed Range 30-150rpm
Poles 48
Efficiency >=93%
Protection Grade IP54
Insulation Class Class H
Cooling Method Forced Air Cooled
Structure Diagram

80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG

Applications

Designed for 80-100kW horizontal axis wind turbines, distributed wind farms and wind diesel hybrid stations. System integration support including converter selection is available.

Application

80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG

Quality and Service

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
