IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
Specifications
MOQ :
1 set
Cooling Method :
IC410 self cooled
Number of Poles :
10 poles
Mounting Type :
B5 flange, vertical
Supply Ability :
500 sets per month
Rated Speed :
600 rpm
Efficiency Class :
IE4 / IE5
Delivery Time :
25-35 days
Certification :
CE, ISO9001
Insulation Class :
Class H
Frequency :
50 Hz
Model Number :
ECER-IP68-15
Cable Entry :
Waterproof gland
Shaft Seal :
Double mechanical seal
Payment Terms :
T/T,L/C
Packaging Details :
Export wooden case with moisture barrier and desiccant
Protection Grade :
IP68 submersible
Rated Power :
15 kW
Place of Origin :
China
Rated Voltage :
380 V AC, three phase
Brand Name :
ECER PMM
Price :
Negotiable
Description
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
The ECER-IP68-15 is a fully submersible 15 kW Permanent Magnet Motor engineered for sewage lift stations, deep well pumps and flood prone plant rooms where standard motors fail quickly. Its IP68 enclosure allows continuous operation even when completely submerged, while the Permanent Magnetic Motor design delivers IE4/IE5 level efficiency with high starting torque.

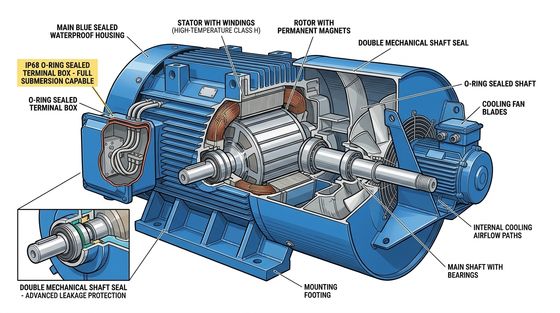

Sealing is provided by O ring sealed terminal boxes, a double mechanical shaft seal and a waterproof cable gland, keeping moisture and grit away from the windings in the most aggressive wet environments.
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
Key Features
  • IP68 Total Submersion: rated for continuous underwater duty in sewage and storm water applications.
  • Corrosion Protection: marine grade paint and corrosion resistant shaft withstand sewage gas and salt water.
  • Energy Saving: the Permanent Magnet Motor cuts power use versus induction motors in long running pump duty.
  • Low Speed High Torque: 10 pole rotor starts heavy impellers directly without oversizing.
  • Low Maintenance: brushless construction and sealed bearings reduce service intervals.
Technical Specifications
Parameter Specification
Rated Power 15 kW
Rated Voltage 380 V AC, three phase
Frequency 50 Hz
Number of Poles 10 poles
Rated Speed 600 rpm
Efficiency Class IE4 / IE5
Cooling Method IC410 self cooled
Protection Grade IP68 submersible
Shaft Seal Double mechanical seal
Mounting Type B5 flange, vertical
Applications
This Permanent Magnet Motor is designed for submersible sewage pumps, storm water pumps, deep well pumps, aquaculture aeration and marine bilge systems. Municipal water utilities and agricultural projects benefit from its corrosion resistance, low noise and reduced energy bills over long pumping hours.
IP68 Waterproof 15KW Permanent Magnet Motor for Submersible Sewage Pump Stations
Packaging & Quality Assurance
Every unit passes a submersion test, insulation test, load test and noise test before shipment. Export wooden case packing with moisture barrier protects the motor in transit. An 18 month warranty and permanent spare parts support are provided.
