Specifications
Brand Name :
LIZHU
Model Number :
LZ-D
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 pcs/month
Delivery Time :
7-10days
Packaging Details :
Carton Packing
Name :
PVC Injection Molding Machine
Clamping Force :
0~2000tons
Injection Weight :
150Grams
Injection Speed :
300mm/s
Customizition :
Availiable
Description

Preform Injection Molding Machine Vertical Type

1. Description:

1. Vertical shape opening, vertical infusion, reasonable for embed forming

2. Nitrided steel screw, material cylinder, high force water powered engine drive, multi-stage infusion pressure, great plasticizing execution.

3. Direct strain mother-form lock chamber plan, fast shape bracing, low-pressure security form clasping, programmed shape shutting, numerous tension control, high wellbeing and further developed shape life.

4. Electrical assurance gadget, no mix-ups, support administrator security.

5. Programmed shortcoming show, support is speedy and simple.

6. Electronic control and pressure driven use brand-name parts, tranquil, exact and strong.

2. Sepcifications:

Item Unit LZ-D
Injection Unit Screw Diameter mm Ø25 Ø30 Ø35
Injection Pressure Kg/cm2 2016 1892 1145
Theoretical Shot Volume cm3 213 265 314
Shot Weight(PS) g 174 212 239
oz 6.3 7.1 9.5
Injection Rate cm3/sec 169 190 142
Screw Stroke mm 149
Screw Rate rpm 0-250
Injection speed mm/s 112
Nozzle Stroke mm 332
Clamping Force Clamping Force tons 30
Opening Force tons 18
Sliding Plate Size mm 550*521
Plate Size mm 585*1270
Rotary Table Diameter mm -
Sliding Table Stroke mm -
Max Mold Size mm 590*350
Min Mold Thickness mm 300(50+50)
Opening Stroke mm 235
Max Opening Stroke mm 550(50+50)
Position tolerance mm ±0.02
Ejector Unit Ejector Stroke mm 50/110
Ejector Force Tons 8
Ejector Diameter mm 25
Ejector PCS. pcs 1
Hybrid Unit Oil Tank Volume liters 151
Cold Water Volume Liters/min 166
Servo Motor kw 25
Heating Volume kw 10
Total Wattage kw 30
Others Machine Weight tons 1.7
Machine Size m -

3. Machine Features:

1) Multi-stage temperature control, multi-stage infusion pressure, pace of fire, back pressure stepless change, appropriate for trim of accuracy plastic parts.

2) Optional servo energy-saving motor.

3) Two column and four column (option)

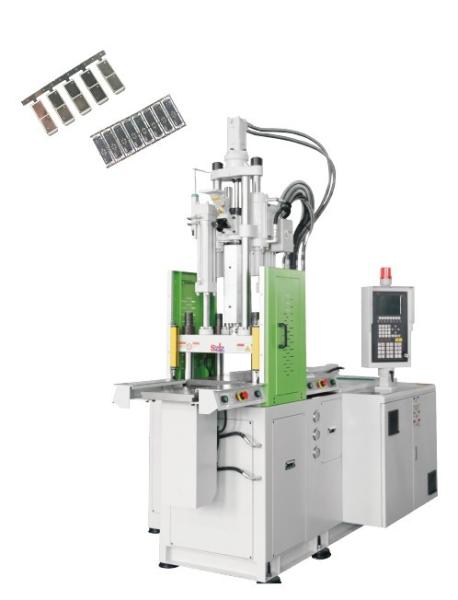

4. Pictures:

150 Gram PVC Injection Molding Machine 2000 Tons PET Preform Vertical Molding Machine

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5)When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
