Specifications
Brand Name :
LIZHU
Model Number :
LZ-C
Certification :
CE,CSA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, L/C
Price :
Negotiation
Packaging Details :
Carton Packing
Supply Ability :
10 pcs/month
Name :
Type-C Vertical Injection Molding Machine
Clamping Force :
35 Tons
Shot Volume :
210cm3
Machine Weight :
3.2/3.4/3.5 Ton
Ejector Force :
1.1 Tons
Machine Style :
Vertical
Description

Tie barless vertical injection molding machine

1. Description:

Vertical clamping, vertical injection, C-frame and tie barless design.

Clamping force: 35-60 tons Injection volume: 0-150 grams

Features: The machine is designed in accordance with CE standards and has passed TUV certification. three sides opening design,suit for all kinds of inserts.

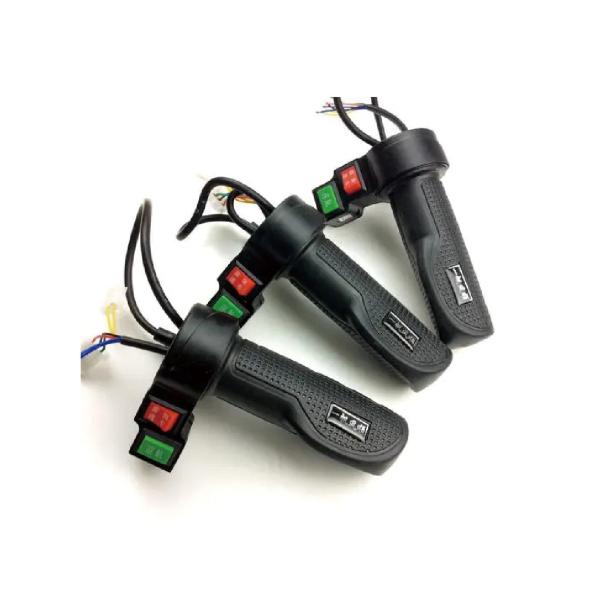

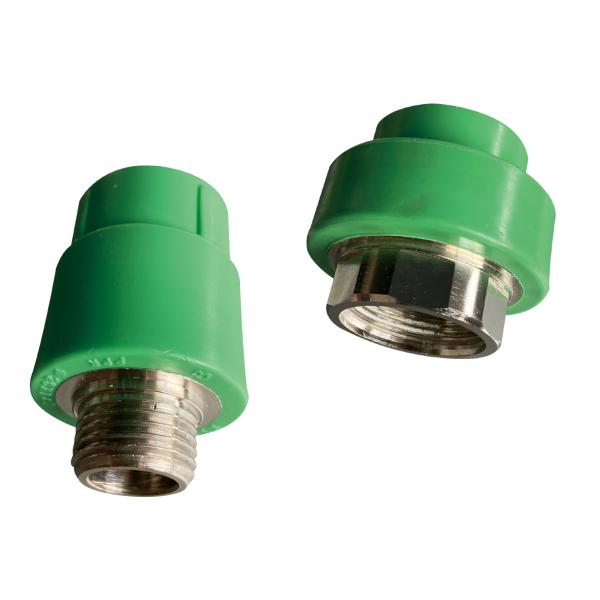

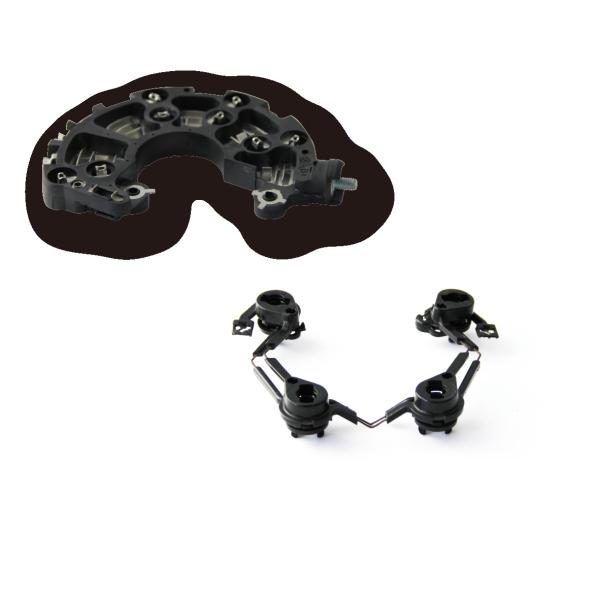

It is suitable for inlaid products, such as electronic parts, auto parts, medical parts, optical parts, etc.

Product options: add a single slide plate, high-speed injection system, servo energy-saving system.

2. Sepcifications:

Specification
Model
Unit
35T-45T-60T
Injection Unit
Screw diameter
mm
Ф50
 Ф55
Ф60
Maximum injection pressure
Kg/cm2
 2140 1783
1494
Theoretical shot volume
cm3
397
 471
562
Maximum shot weight(PS)
g/Oz
 346/12.2 420/14.8
500/ 17.6
Injection rate
cm3/sec
190
 233
280
Clamping Unit
Clamping Force
ton
120
Rotary Table Diameter
mm
-
Minimum mold thickness
mm
customization
Others
Machine Weight (approx.)
T
9.7
Machine dimensions(approx.)
m
3.4×2.4× 4.6

3. Machine Features:

Design with horizontal injection and vertical clamping.
Three sides are open on a C-frame with no tie bars.
Simple inserts and part loading and unloading.
One can select a large capacity injection equipment for horizontal injection.
apply to every type of PVC plug.

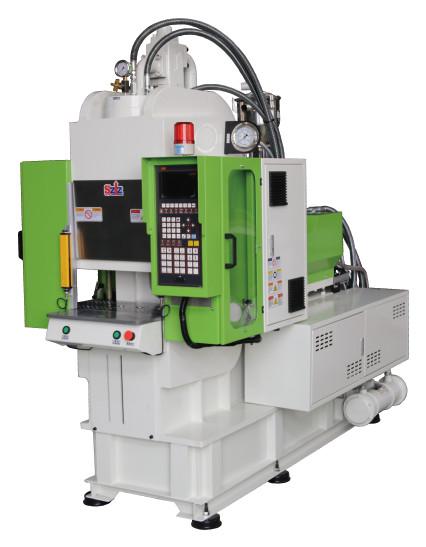

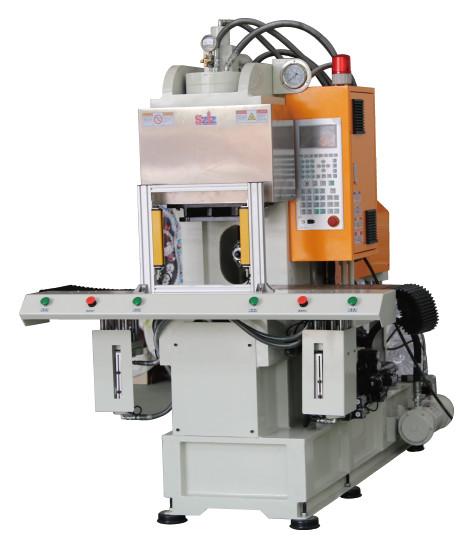

4. Pictures:

Barless Cable Tie Vertical Injection Molding Machine 35 Ton PVC Molding Machine

5. FAQ:

1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.

2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.

3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.

4) Do you accept my own design?

We can provide OEM/ODM service.

5)When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
