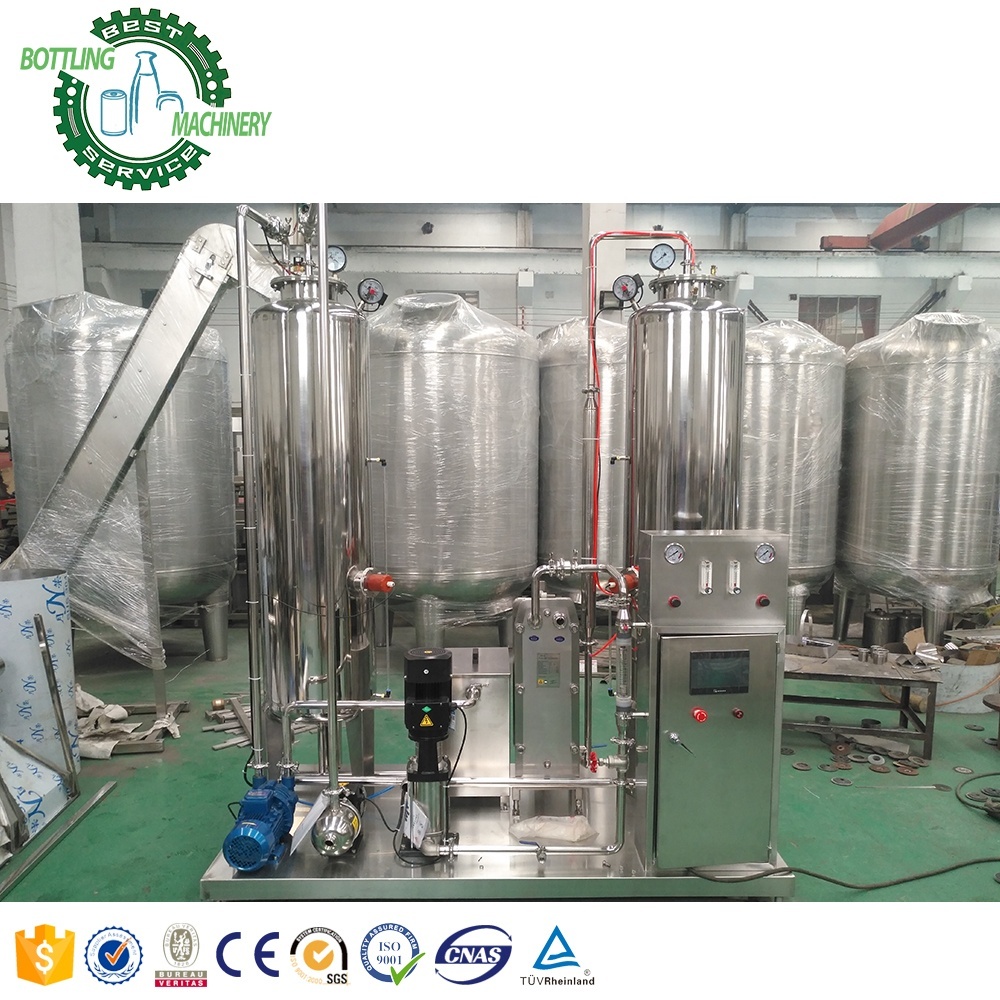

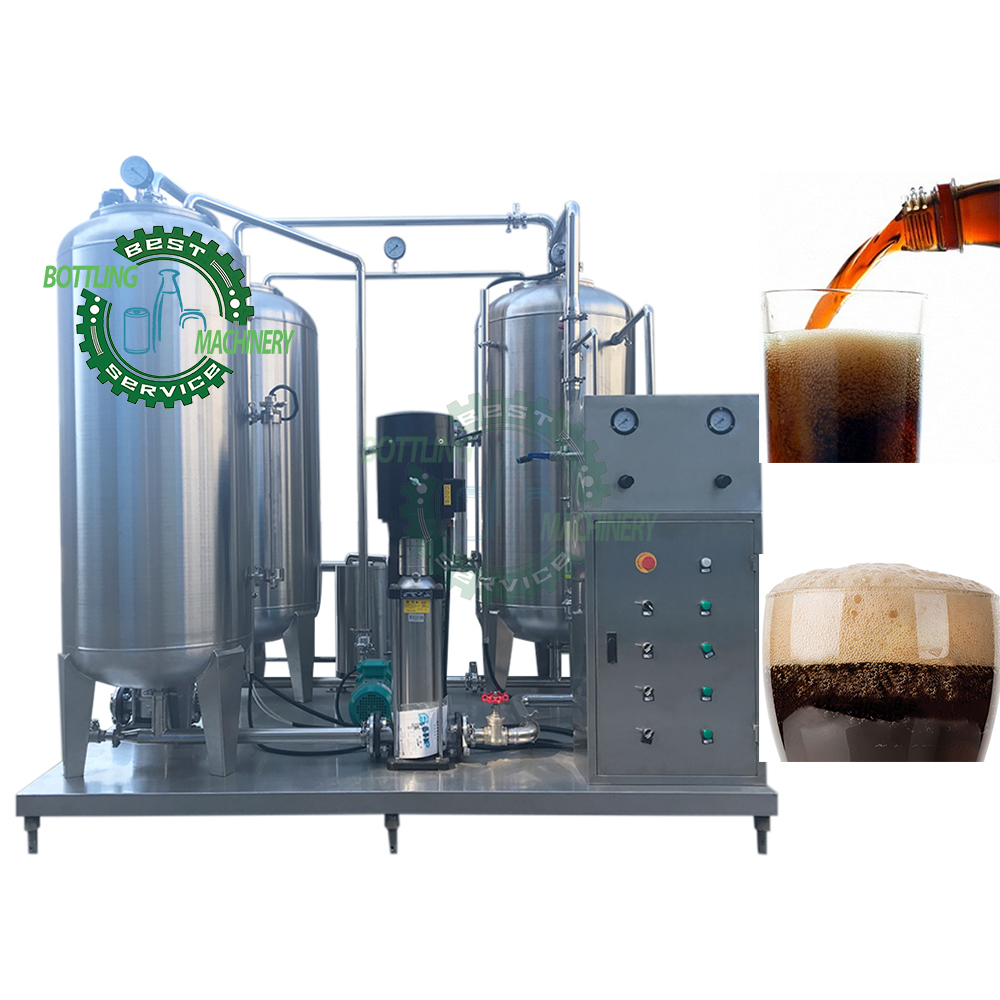

1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
Specifications
processing :
Mixer
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
Bearing, motor, Pressure vessel
Place of Origin :
Jiangsu province
Brand Name :
BOTTLING
processing types :
Carbonated Beverage
voltage :
Customized
power(w) :
Customized
weight :
1000 KG
dimension(l*w*h) :
Customized
warranty :
1 Year
Product name :
Co2 Drinks Mixer
Name 2 :
CO2 mixing machine
Name 3 :
Carbonated
Application :
Mix CO2 into the beverage
Capacity :
500LPH-10000LPH
Material :
SUS304, SUS316
Model 1 :
Single tank carbonator
Model 2 :
Double tanks carbonator
Model 3 :
Three tanks carbonator
Model 4 :
High ratio 5 tank carbonator
Applicable Industries :
hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops
Showroom Location :
None
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Condition :
New
Description
VR
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
Products Description

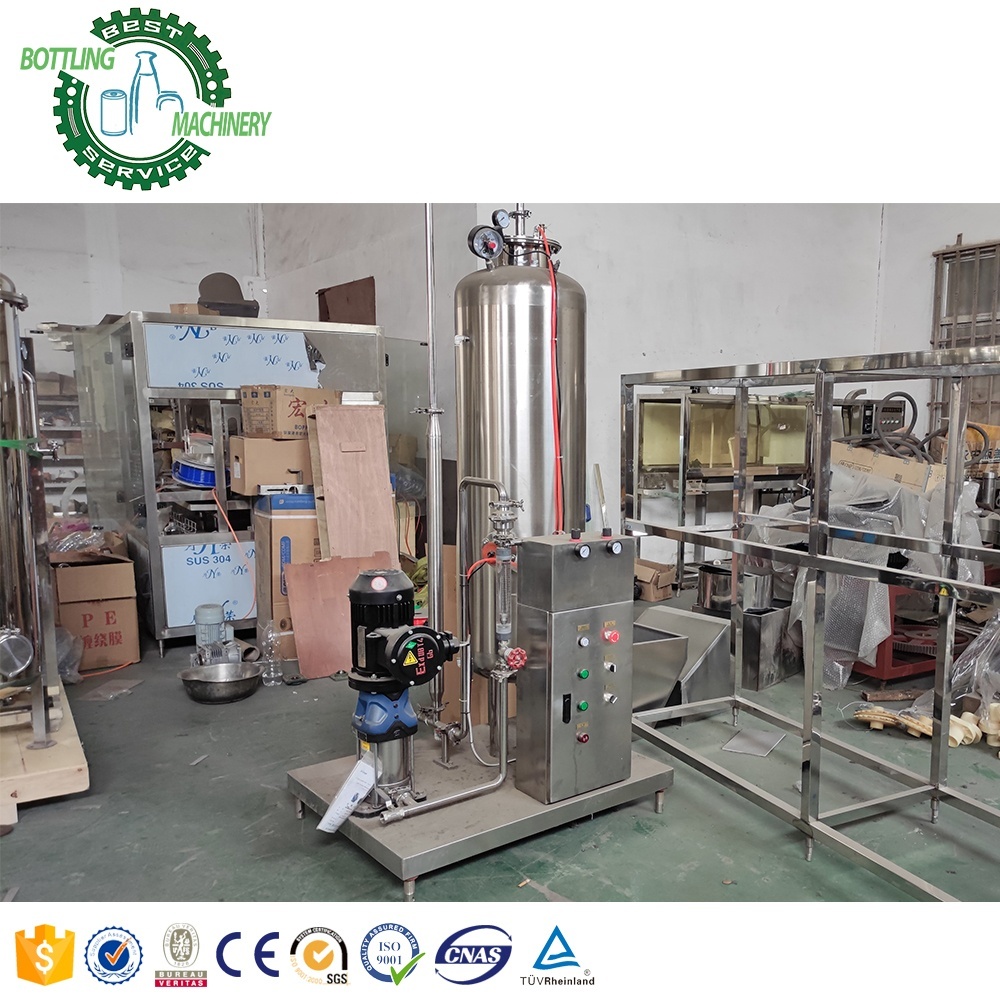

1, Single tank Carbonator / CO2 mixer machine

Working principle: The beverage is pressurized to the static mixing rod by a high-pressure pump, and then mixed with carbon dioxide gas, and finally enters the mixing tank for secondary mixing to increase the mixing effect, thereby completing the carbonated beverage. Characters： 1,Refined material using, precise processing： All touching parts choose high quality stainless steel, Inner-outer all polishing, meet international beverage machinery standard; 2, Auto running, stable facility: Electronic control for whole working process; Alarm device will work if any fault occurs; 3, Convenient operation and easy adjustment The operation just needs to start the button on turn according to the required procedures, and then you can achieve normal operation. The production capacity and the mixture ratio of drink could be adjusted easily by operation valves on machine. 4, Mixing uniformity, the proportion is accurate Use flow meter and manual valves to control and adjust liquid and CO2 ratio. 5, The structure is healthy and easy to clean The machine adopts a closed system made by stainless steel and installed an CIP ball to connect to flavor cleaning equipment to clean the equipment and pipeline by the acid-alkali and hot water, and then to ensure the beverage made by the machine can meet the health requirements.
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
Capacity:
1000L/H
2000L/H
3000L/H
4000L/H
5000L/H
6000L/H
Gas content:
VR 2.5
Drink inlet temperature:
0-5℃
Working pressure of Mixing tank:
0.2-0.5Mpa
Compressed air consumption:
2.5m³/h
5m³/h
7.5m³/h
10m³/h
12.5m³/h
15m³/h
Power:
0.75KW
1.5KW
2.2KW
3KW
3KW
4.5KW
Mixing tank D*H(mm)
400*1500
400*1500
420*1500
450*1500
450*1500
550*1500
Dimension(mm):
1100*900*2200
1200*1100*2200
Weight(KG):
400
420
500
520
550
600

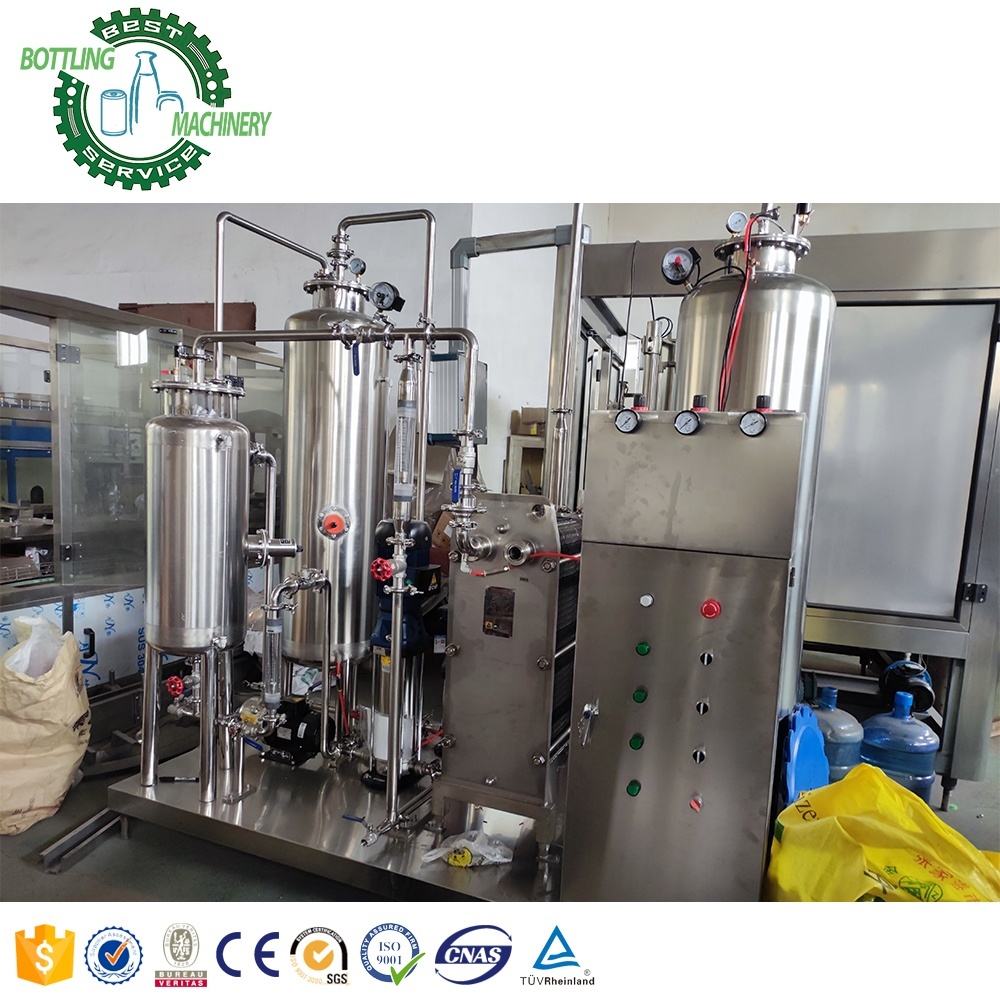

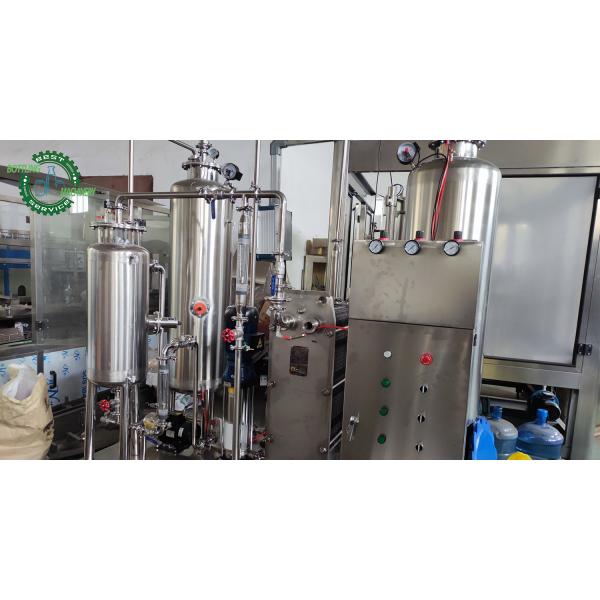

2, Double tank Carbonator / CO2 mixer machine

1, Refined material using, precise processing： All touching parts choose high quality stainless steel, Inner-outer all polishing, meet international beverage machinery standard; 2, Auto running, stable facility: Electronic control for whole working process; Alarm device will work if any fault occurs; 3, Convenient operation and easy adjustment The operation just needs to start the button on turn according to the required procedures, and then you can achieve normal operation. The production capacity and the mixture ratio of drink could be adjusted easily by operation valves on machine. 4, Mixing uniformity, the proportion is accurate Use flow meter and manual valves to control and adjust liquid and CO2 ratio. 5, The structure is healthy and easy to clean The machine adopts a closed system made by stainless steel and installed an CIP ball to connect to flavor cleaning equipment to clean the equipment and pipeline by the acid-alkali and hot water, and then to ensure the beverage made by the machine can meet the health requirements. 6, High ratio carbonation With degasser, the oxygen inside drink will be taken out before CO2 mixing; It gives more space for CO2 mixing in; With plate exchanger, drink temperature can be lower down with chilling source before direct mixing, it can reduce temperature increasing on the way for better gas mixing effect;
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
Capacity:
1000L/H
2000L/H
3000L/H
4000L/H
5000L/H
6000L/H
Gas content:
VR 4
Drink inlet temperature:
0-5℃
Working pressure of Mixing tank:
0.2-0.5Mpa
Compressed air consumption:
4m³/h
8m³/h
12m³/h
16m³/h
20m³/h
24m³/h
Power:
3.5KW
3KW
3.7KW
4.5KW
4.5KW
6KW
Degassing tank D*H(mm)
400*1500
400*1500
420*1500
450*1500
450*1500
550*1500
Mixing tank D*H(mm)
400*1500
400*1500
420*1500
450*1500
450*1500
550*1500
Dimension(mm):
1400*1200*2500
1500*1400*2500
Weight(KG):
480
500
580
600
630
680

Products Structure and Working Procedure:

1. CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure) 2. Main working Procedure a. Cooling water→multi-grade pump→oxygenating CO2→volume control b. Cooling syrup→multi-grade pump→syrup tank→volume control (a and b → multi-grade pump→static mixing device→ c. CO2 air resource→filter and pressure reducing→ tank→filling machine
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator

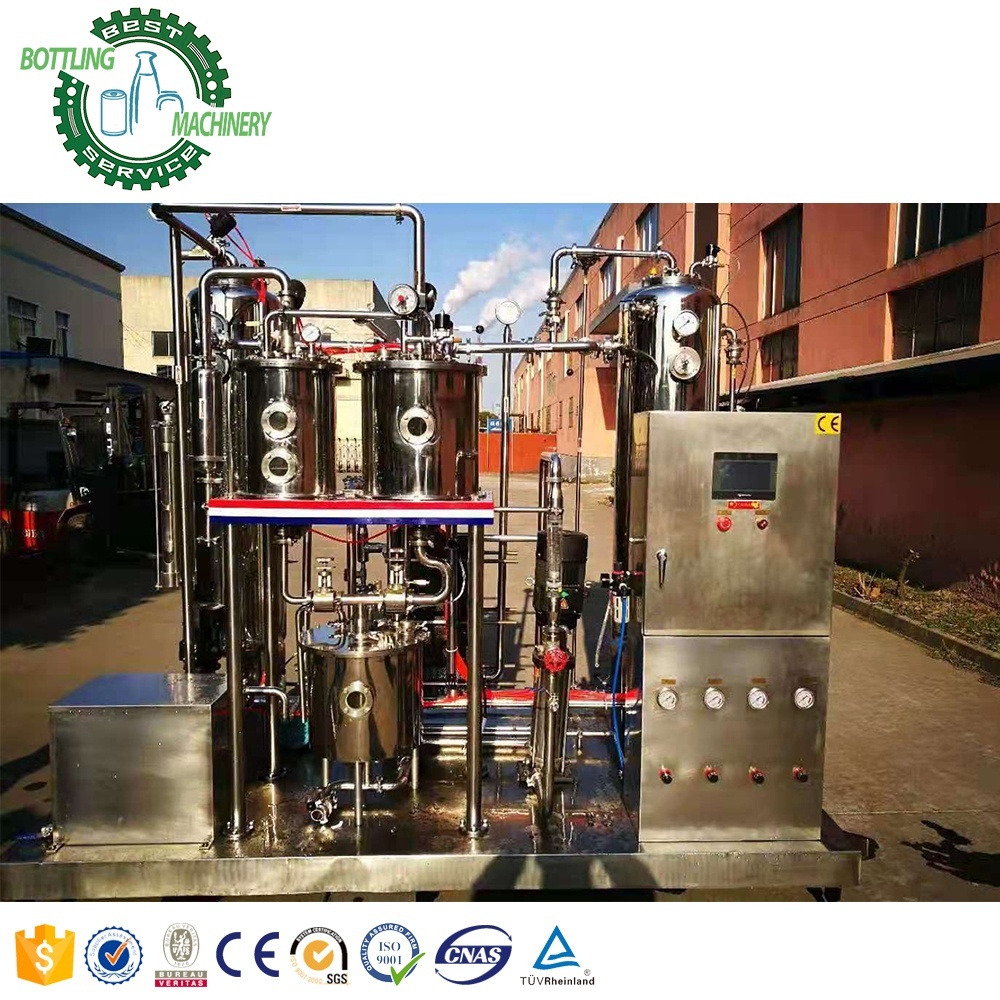

3, High ratio 5 tanks Carbonator / CO2 mixer machine

1, Providing deaeration, mass flow blending of syrup and water, bi-carbonation. All pressure vessels are designed, fabricated and tested according to applicable provisions of the ISPESL Code (standard). 2, One De-aeration system to remove air down to low levels (1ppm of residual oxygen) for stable foam-free filling. The system consists of a single stainless steel de-aeration tank by vacuum pump into which water is sprayed as fine mist in a CO2 atmosphere. 3, One Proportioner to provide fully automated control of a two stream water/syrup blending. The flow-rate control is recipe based. The system includes the following quality components: 4, Syrup tank equipped with level control system, and a flow meter for syrup quality, to ensure rigour mix, which can be repeatedly operated.Two control-valves for adjustment of flow volume of syrup from the tested result. 5, Two Centrifugal Blend Pumps and one Straight-line Carbonation Injection Control System to maintain +/-0.02 volumes/volume carbonation control. This range is maintained by measuring the CO2 flow in the CO2 Mass Flow Meter and controlling it, through a modulation valve, at a rate proportional to product flow. 6, One Buffer Tank with Capacitance Level Control to control system flow-rate according to the recipe as reflected by the finished product level in tank. Capacitance Level Probe System provides continuous level indication to PLC to enable fine-tuning and adjustment of flow-rate from the Blender. Finished product is discharged to the Filler. 7, One Control Package to provide automatic system for precision process blend control. Package includes suitable PLC, control program, video graphic operator interface with informational and control screens, and all necessary process sensors and safety protection devices. System software includes system schematics, recipe manager, production displays, trending, alarm screens with complete security password protection. 8, One Control Panel, fabricated in stainless steel with PLC; electrical switches; electrical relays; and controls for Flow-meter Systems. A colorful touch screen operator interface is mounted on the face of the panel. The panel door is equipped with a safety electrical disconnect latch and the door is gasketed. 9, One Pneumatic plant including: all air valves, air switches, and air tubing, and one Tubular Stainless Steel Base on which the majority of the components are mounted. The base is of welded construction and includes adjustable stainless steel legs, with high density polyethylene mounting pads.
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
Capacity:
4000L/H
5000L/H
6000L/H
Gas content:
＞VR 4.0
Drink inlet temperature:
0-4℃
Working pressure of Mixing tank:
0.2-0.5Mpa
Compressed air consumption:
0.2 M3/min
Compressed air pressure:
0.6MPA
Water/syrup mixing portion
3:1—6:1
Power:
5KW
5.5KW
6KW
Mixing tank(tube&gauge height included) D*H(mm)
500*2100
500*2100
500*2100
Dimension(mm):
1000*1200*2100
Weight(KG):
800
820
850
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
company profile
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
FAQ
1000L/H 1000LPH Beer Foaming Wine Beverage Stainless Steel 3 Tank Syrup CO2 Carbonator
Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.
We can solve basic questions by telephone, email, whatsapp, wechat and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.
