Specifications
Brand Name :
BOTTLING
Place of Origin :
Jiangsu
automatic grade :
Automatic
voltage :
Customized
machinery capacity :
500L-10000LPH
key machines :
Heat Exchanger, Mixer, Carbonator, Cooling system
product type :
Sparkling Water, Spirits, Wine, Carbonated drink, Soft drink
Weight (KG) :
1000
Product name :
Carbonated drink processing plant
Application :
Carbonated soft drink making
Capacity :
500LPH-10000LPH
Material :
SUS304, SUS316
Syrup melting tank :
Electric heating With insulation
Drink Connection pipes :
DN38
CIP :
Provided
Control System :
PLC
Brand :
BOTTLING
Description
VR
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
Products Description

Carbonated/soft drink processing line(500LPH-10000LPH)

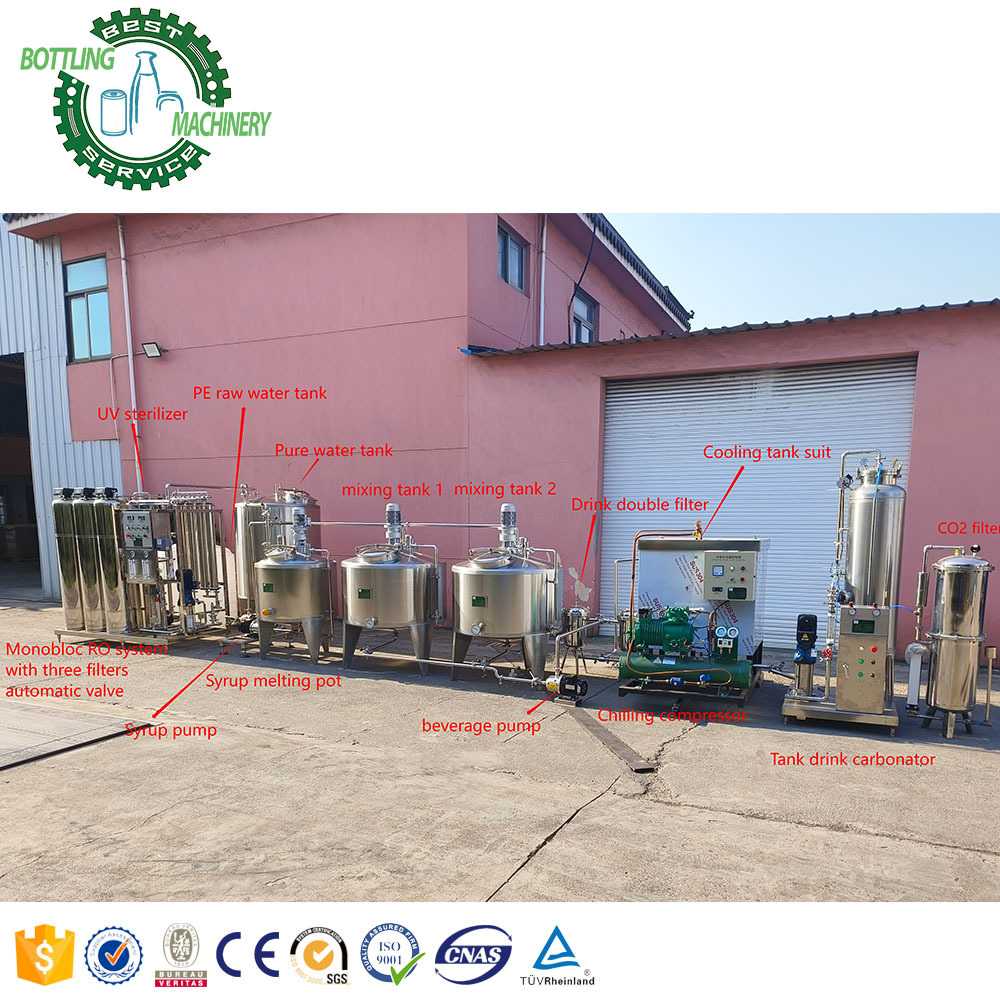

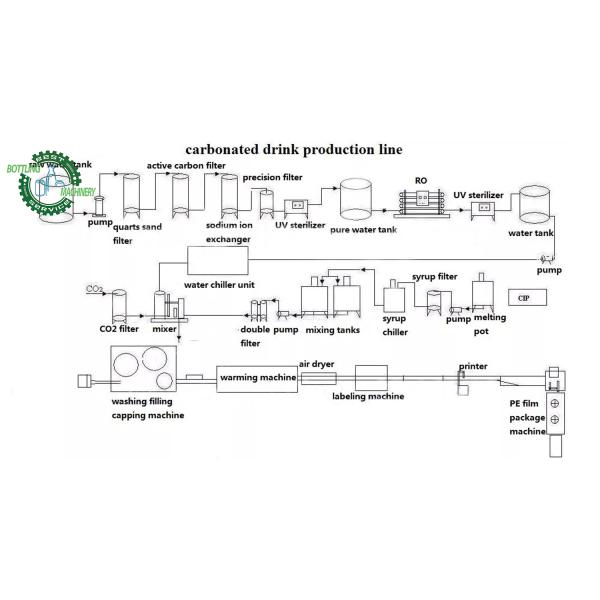

The whole carbonated/soft drink processing plant mainly include water treatment equipment, syrup belting pot, mixing system, Drink double filter, CO2 storage cylinder, CO2 filter, Cooling machine(refrigeration), carbonator(CO2 mixer), CIP
This carbonated/soft drink processing plant is mainly used for the preparation of gas-containing beverages. The main tank body is made of stainless steel 304, which meets the sanitary requirements. The structure is compact and the operation is convenient. Mainly composed of sugar pot, blending tank, double filter, beverage mixer, chiller, CIP cleaning system. Sugar-melting pot: also known as sugar-melting pot, sugar-melting tank, suitable for melting and disinfecting milk, syrup, fruit juice, food and other substances, heating, cooking and keeping warm. Mixing tank: It has the advantages of energy saving, corrosion resistance, strong production capacity, convenient cleaning, simple structure, etc. It is mainly used for mixing uniformity. Metering pump: used for precise blending of materials to ensure the uniformity of the blended flavors. Duplex filter: The filter bag leak detection rate is small, it can accurately ensure the filtration accuracy, and can quickly replace the filter bag, basically no material consumption for filtration, which reduces the operating cost. Beverage CO2 Mixer(carbonator): It is carefully designed and manufactured to increase the precise ratio of water, syrup and carbon dioxide. Cooling system(water chiller): Compression and refrigeration by Freon compressor unit, using refrigerant to make cold drinking water through the water tank evaporator. CIP cleaning system: The CIP cleaning system can effectively clean the production equipment such as tanks, containers and pipelines on site. The entire cleaning process runs in closed production equipment, tanks, containers and pipelines, thereby greatly reducing secondary pollution chance.
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
The complete 2000LPH carbonated drink mixing plant for reference:
1.1
Syrup melting pot
600KG/h
∮900*1700
1set
1.2
Syrup Filter
500Kg
∮320*800
1set
1.3
Drink mixing tank
1T/h
￠1100*2300
2sets
1.4
Drink double filter
3000Lph
∮320*800
1set
1.5

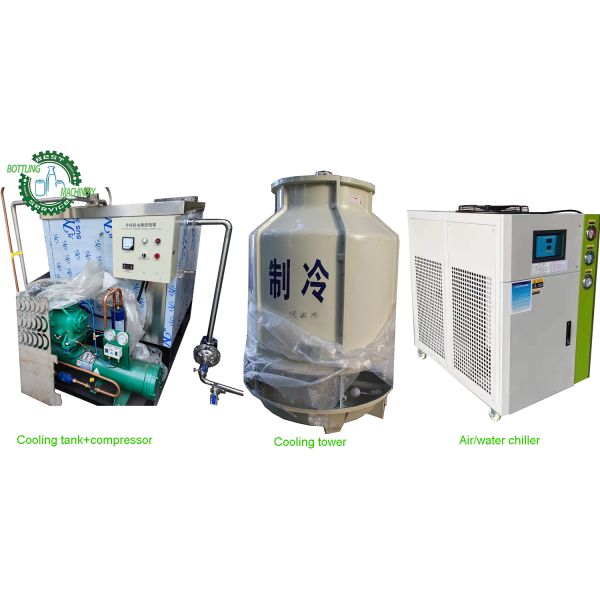

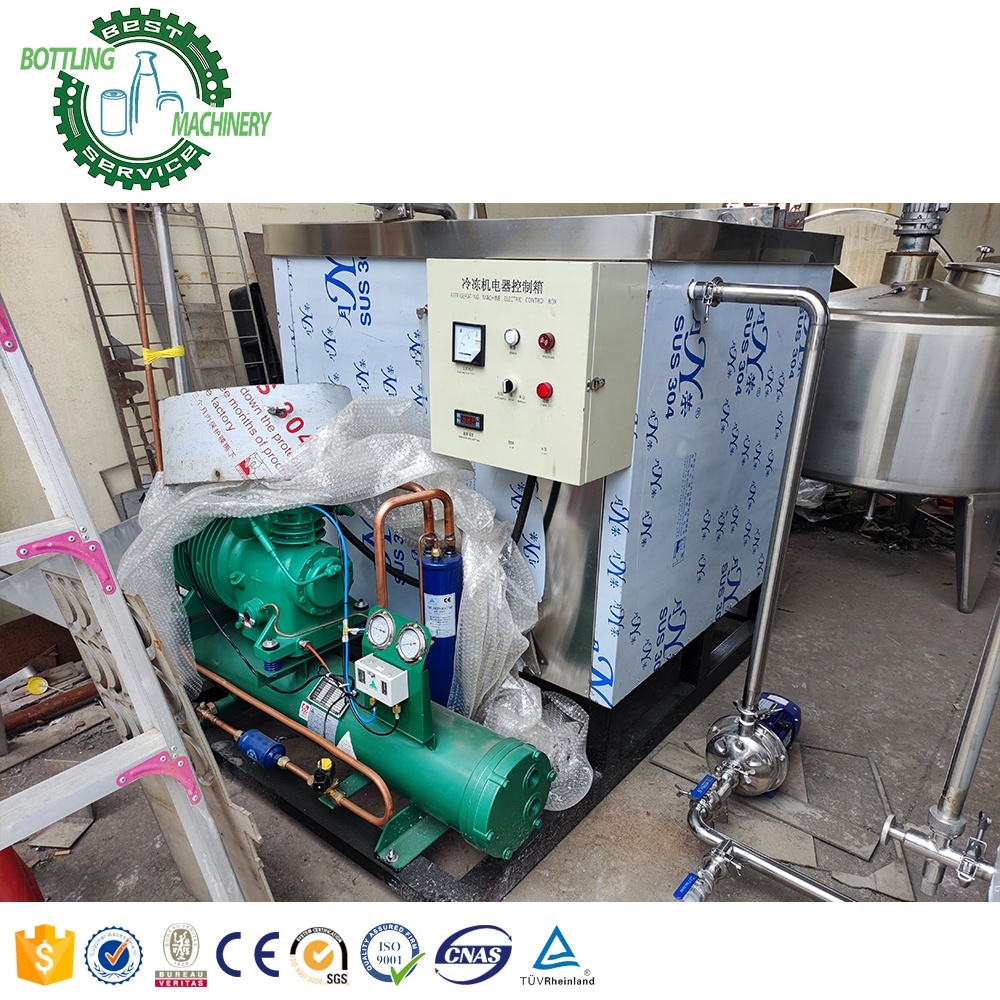

Air cooling Water chiller
20.2c
1950*1250*1600
1set
1.5.1
Buffer tank
270L
/
1set
1.6
CO2 filter
8m3/h
∮500*1400
1set
1.7
Double tank Carbonator with plate exchange
QHS-2000-2
1400*1200*1900
1set
1.8
Heat resistant pump/ beverage pump
/
/
2sets
1.9
Drink Connection pipes
DN38
/
1suit
1.10
Semi auto CIP
500-3*3
3400*1600*2300
1set
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer

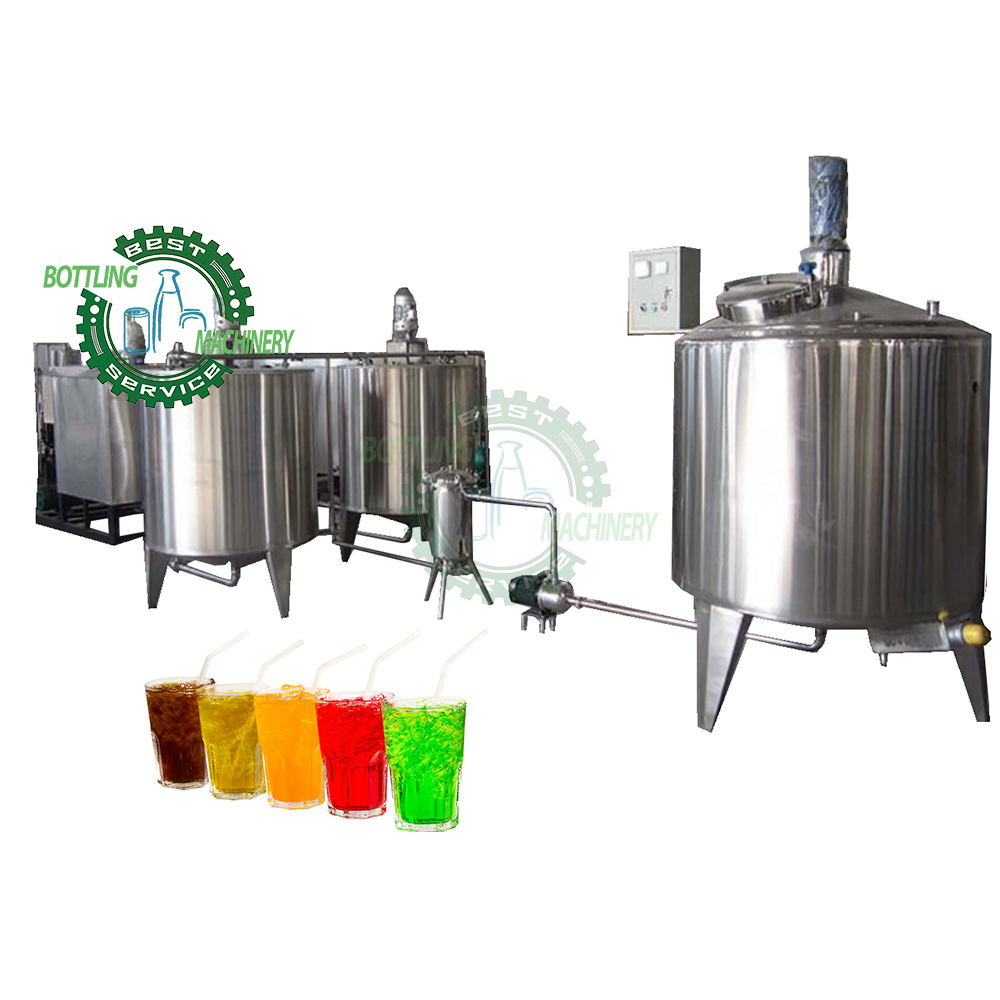

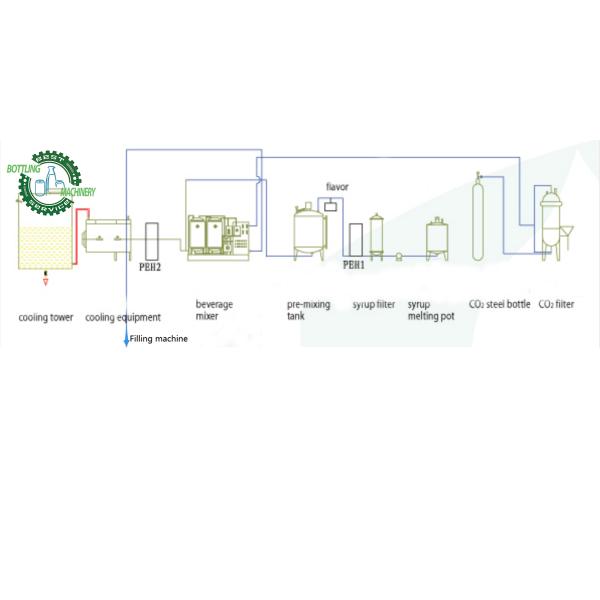

Syrup mixing, drinks cooling and CO2 mixing system: Carbonated beverages are mainly composed of water, syrup, and carbon dioxide. The syrup is made through the sugar pot and the mixing tank. After filtration, it is pumped into the syrup tank in the carbonated drink mixer. At the same time, the sterilized finished water is also pumped into the beverage mixer. The water tank is vacuum degassed to facilitate the mixing of carbon dioxide. Through the proportioning system on the beverage mixer, the water and syrup are mixed in proportion to achieve the desired taste, and our mixer incorporates carbon dioxide jet technology, The sandy taste of the beverage is equivalent to Coca-Cola, and the mixed materials are cooled by a plate heat exchanger, where the other end of the plate heat exchanger is mainly connected with a water chiller (cold water is provided, with antifreeze added, and the water outlet temperature is -3℃ -8°C adjustable) connection, we will select the chiller based on the user’s local climatic conditions. Through this heat exchange method, the material can be cooled to 0°C～3°C and fed into the beverage mixer. The carbon dioxide mixing tank can dissolve carbon dioxide into the material under the control of proper pressure to make carbonated beverages with ideal gas lock capacity.
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
CIP: Separate alkali, acid tank, hot water tank; Heating pipes used for cleaning liquid heating by steam connection or hot water boiling recycling; Centrifugal pump to discharge cleaning liquid to the machines which need to be washed; Feedback pump can be added for cleaning liquid recycling; It is for easy equipment s cleaning, divided into 5 steps of cleaning:A, Pre-Hot Water cleaning B, Alkali cleaning C, Post-Hot Water cleaning D, Acid cleaning E, Post-Hot Water cleaning
All the machines for carbonated drink processing plant:
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
syrup belting tank
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer

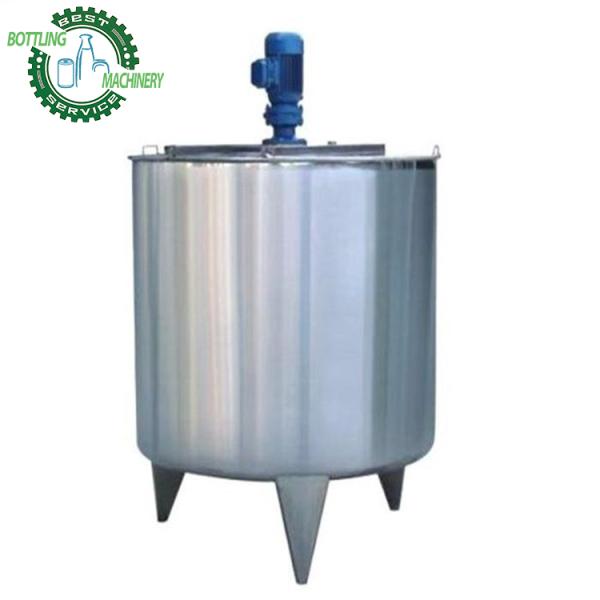

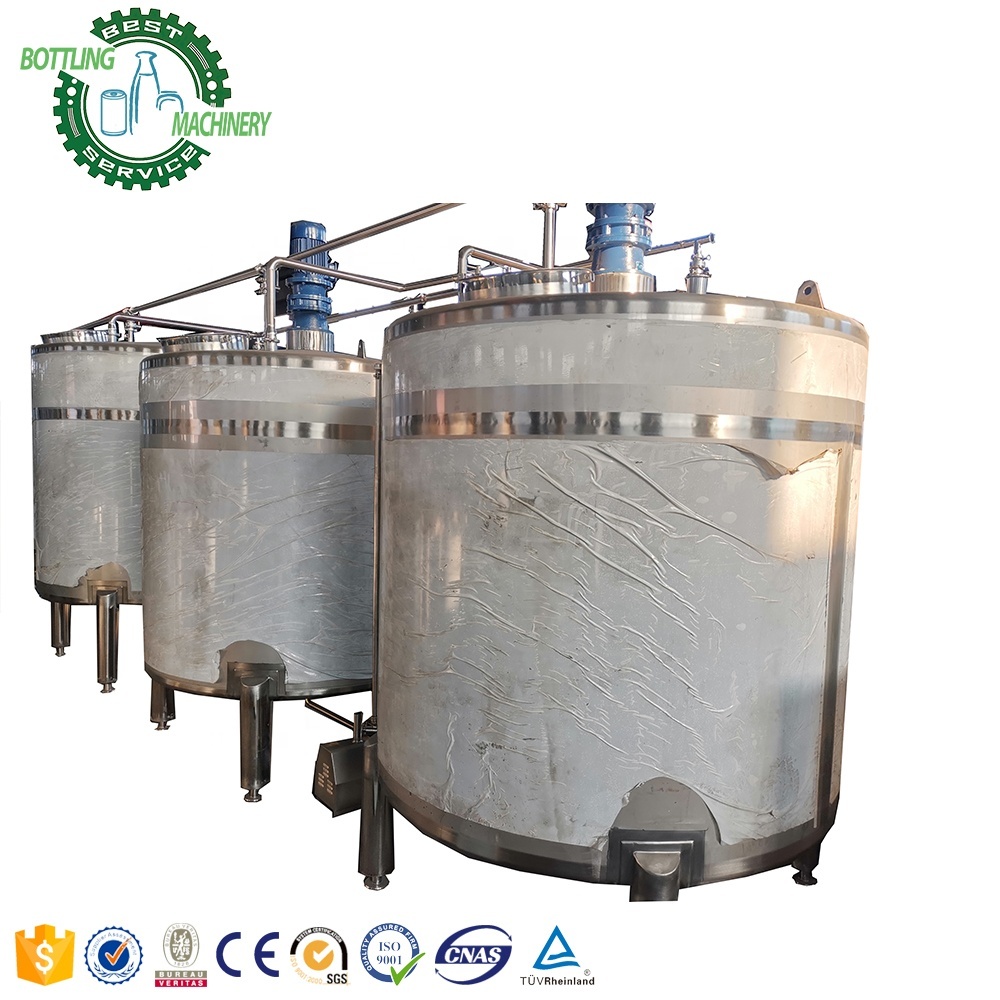

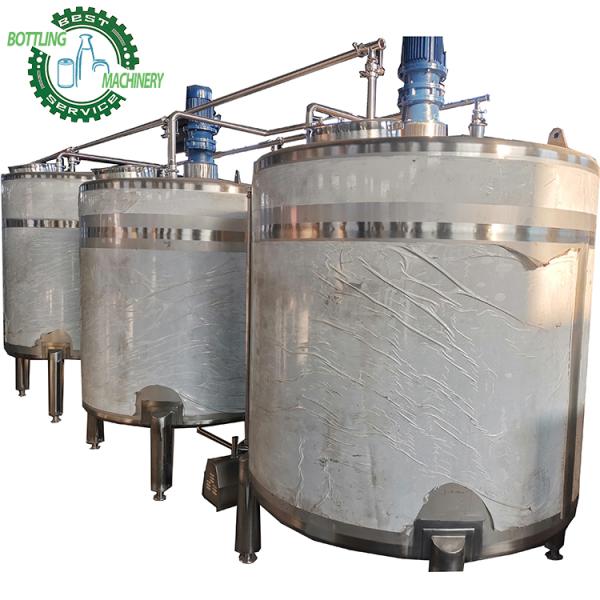

Beverage mixing tank
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer

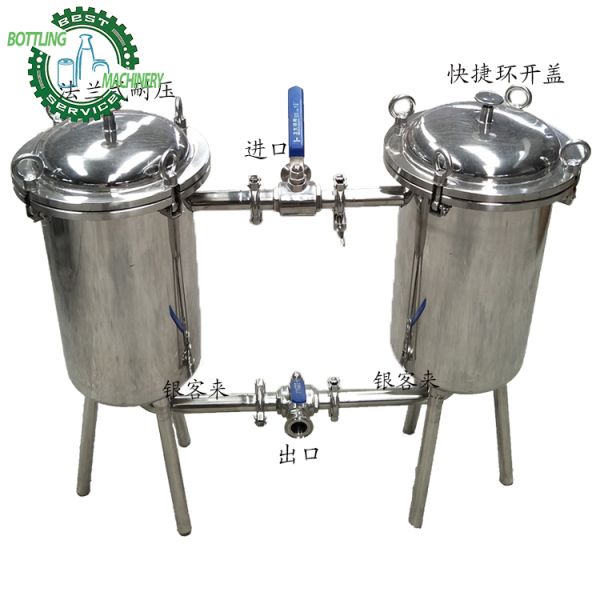

Drink double Filter
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer

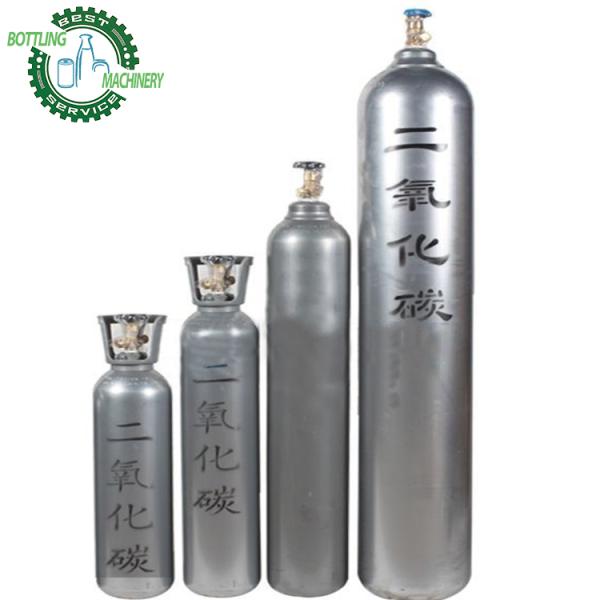

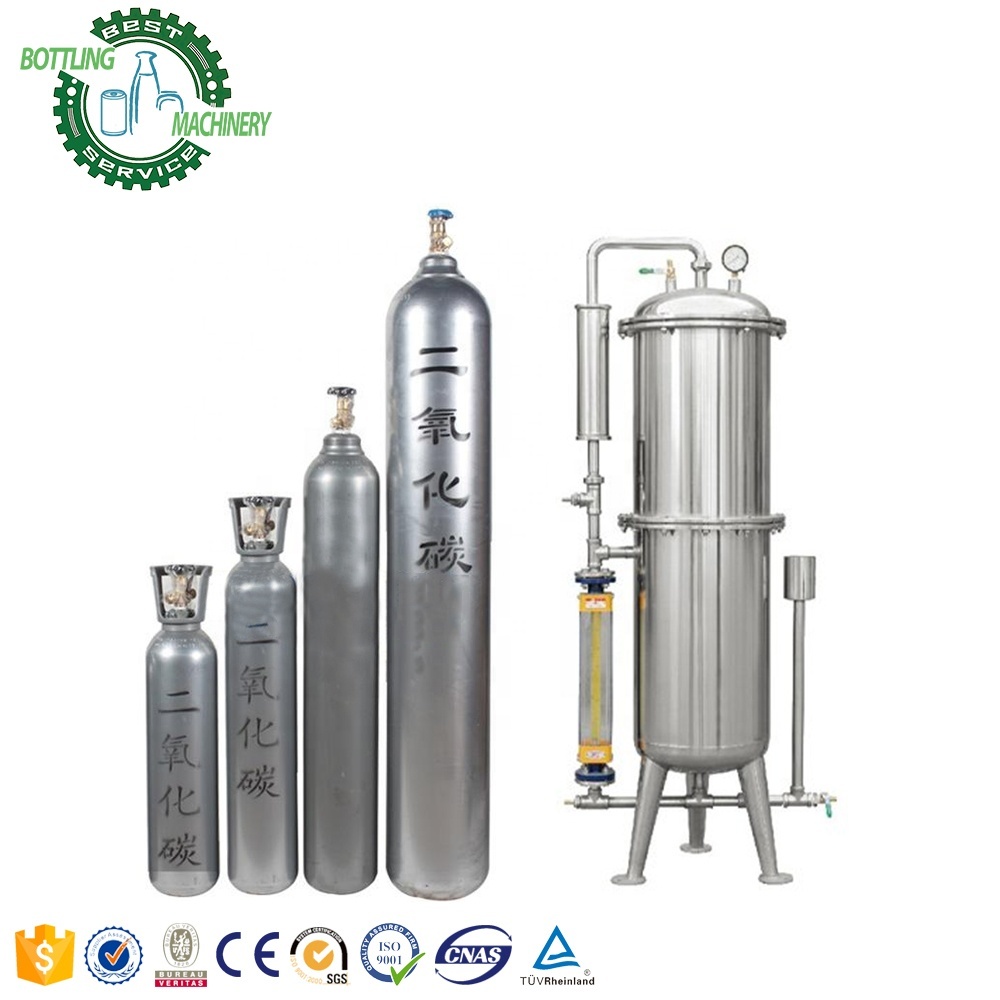

CO2 storage cylinder
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
CO2 filter
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer

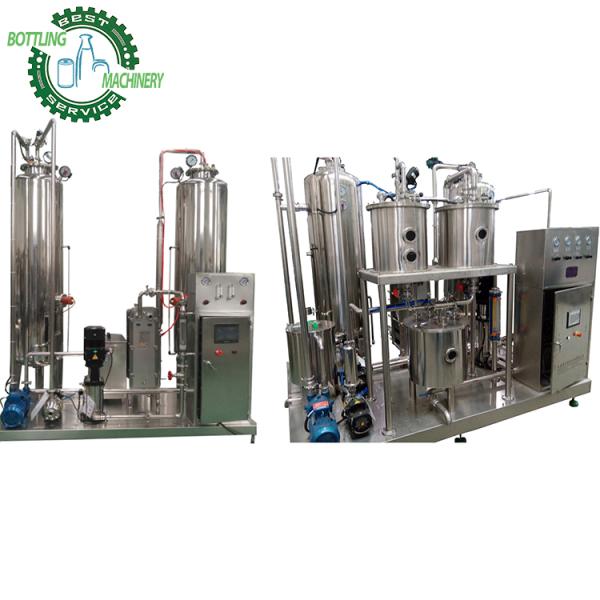

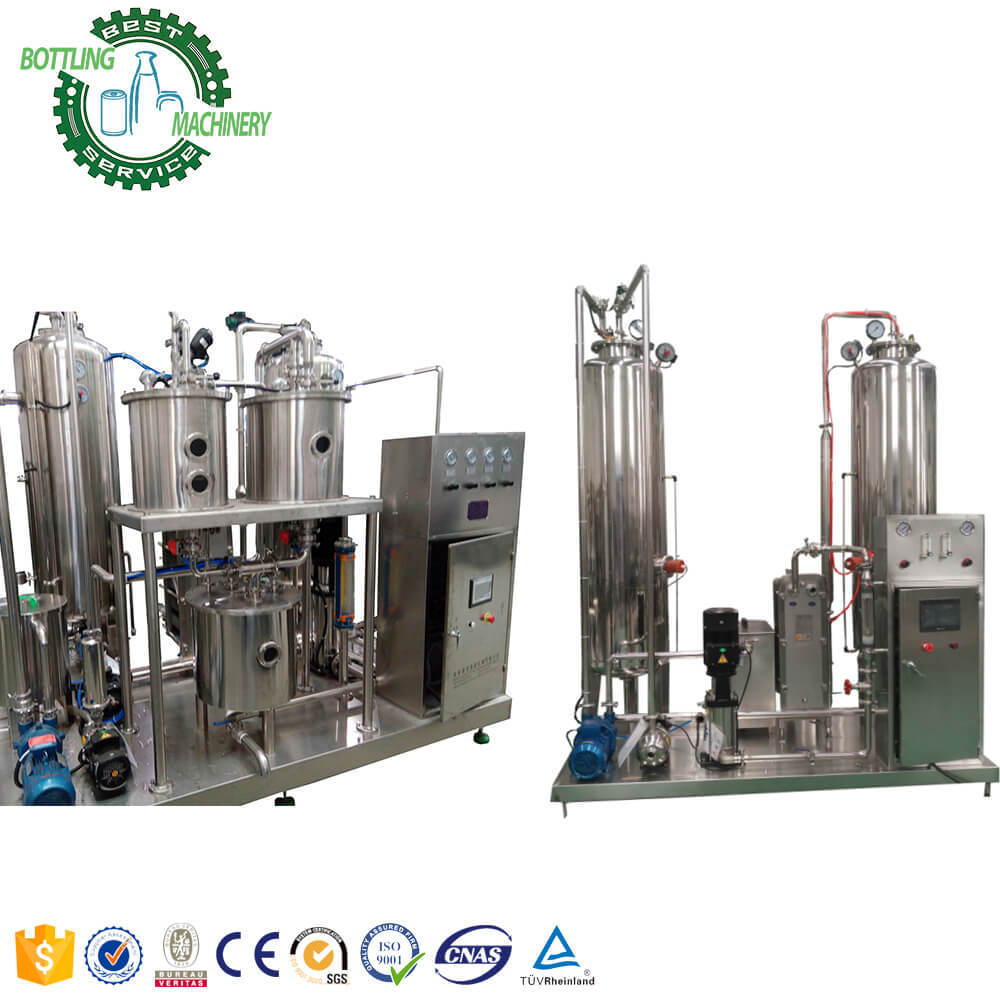

Carbonator(CO2 mixer)
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
company profile
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
FAQ
500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.
We can solve basic questions by telephone, email and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.
