1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
Bearing
Place of Origin :
Jiangsu
Brand Name :
BOTTLING
Heat Exchanger Type :
Plate Heat Exchanger
Liquid Flow Rate :
1ton/hour-6tons/hour
Maximum Pressure Rating :
1.0MPA
voltage :
Customized
dimension(l*w*h) :
Customized
warranty :
1 Year
working temperature range :
-10℃-150℃
key selling points :
Competitive Price
Material :
Stainless Steel, SUS304, SUS316
Weight (KG) :
180
Product Name :
Plate Heat Exchanger
Usage :
Heating and cooling
Capacity :
3m2-10m2
Flow :
1ton/hour-6tons/hour
Working Pressure :
1.0MPA
Plate Thickness :
0.55mm
Sealing material :
EPDM (Suitable for within 140℃)
Connector size :
Flange DN32/DN50
Weight :
50-180Kg
Description
VR
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
Products Description

Plate heat exchanger

Plate heat exchanger is a new type of high efficiency heat exchanger which is composed of a series of metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, through which heat is exchanged. Plate heat exchanger is an ideal equipment for liquid - liquid and liquid - steam heat exchange. It has the characteristics of high heat exchange efficiency, small heat loss, compact and light structure, small space needed, convenient installation and cleaning, wide application, long service life and so on. Under the same pressure loss, its heat transfer coefficient is 3-5 times higher than the tubular heat exchanger,the occupied area is one-third of the tubular heat exchanger, and the heat recovery can be up to more than 90%.
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler

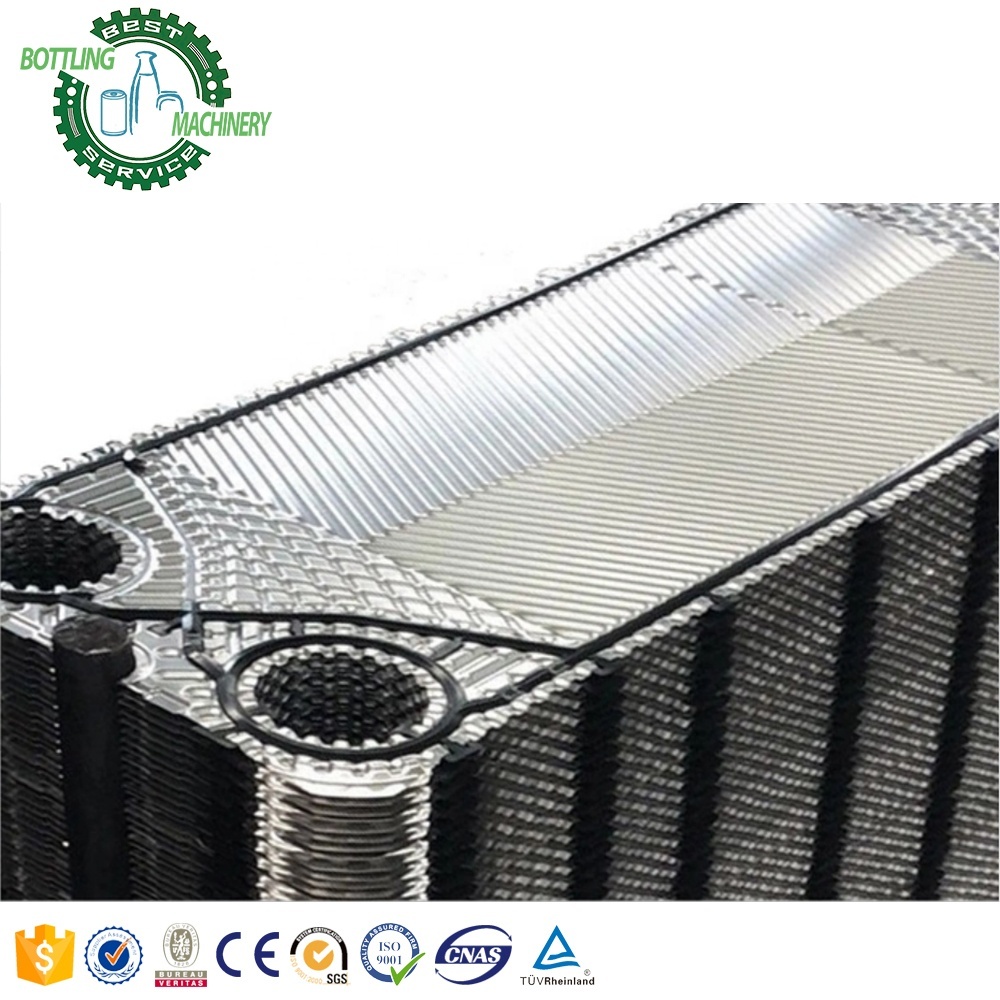

Features: 1,Unique board design Using the numerical simulation technology of ultra-fine mesh combined with the precise test measurement method, the heat exchange plate with superior flow and heat transfer performance is designed. The unique design of the plate grain can make the fluid at a lower flow rate can produce turbulence, greatly improving the heat transfer coefficient. The plate mold design is more reasonable, forming up to thousands of contact points between the plates, uniform pressure, high pressure resistance up to 25KG. 2, Advanced shunt zone The split-flow area of the plate is designed with streamline guide groove, which balances the difference of flow resistance caused by uneven fluid distribution in different flow channels, and avoids the disadvantages such as the decrease of heat transfer efficiency, pitting and dead Angle scaling caused by uneven flow distribution and flow dead Angle. 3,Super sealing gasket and groove Adopt stick - free snap type gasket, fixed firmly with plate, avoid pressure dislocation. And two seals are arranged between the hot and cold fluid, and the leakage area is in the middle. Even if a sealing pad is damaged, the leakage will not make the two fluids mix, but flow to the outside through the leakage hole. 4, The scientific designed framework The use of 5 points positioning suspension system, not only to ensure that the plate on the left and right positioning is accurate, but also to ensure that the plate can automatically lock each other when clamping, so in the plate reset can be easily accurate alignment, eliminate human operation error, so as to ensure the performance after the dismounting of heat exchanger, the service life of the gasket is more permanent. The front and back baffles are cut by numerical control and formed in one time, and the surface is micro-forged to enhance the surface strength. The locking nut and rolling parts are specially designed, and made of high strength, high wear-resisting and anti-corrosion materials.
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler

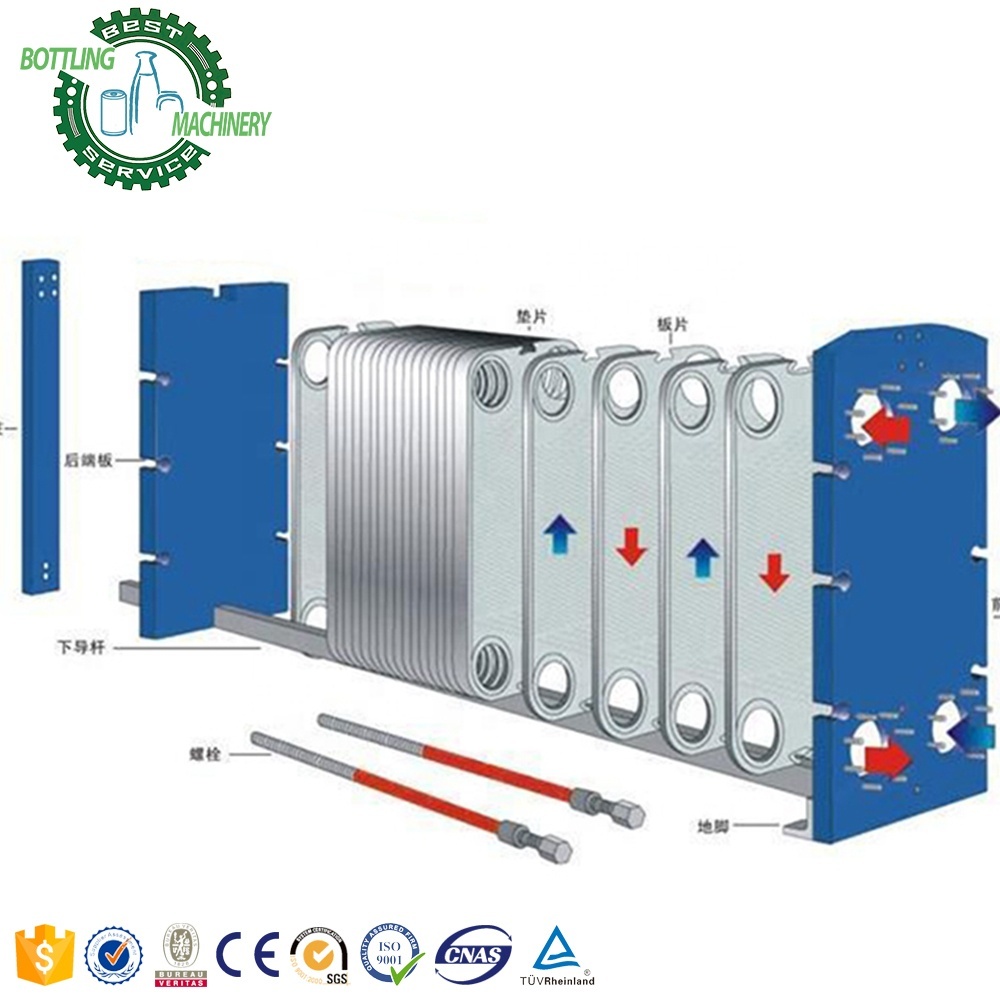

The plate heat exchanger is composed of heat transfer corrugated plates and a frame. The plates are clamped by bolts between the fixed compression plate and the movable compression plate. Many flow channels are formed inside the heat exchanger, and the plates are sealed with rubber. There is a pipe connecting the device and the outside on the compression plate. The plate is pressed by a corrosion-resistant metal sheet. The four corners are punched with corner holes for the medium to enter and exit, and there are hanging holes on the top and bottom. The herringbone corrugation can increase the disturbance to the fluid, so that the fluid can reach a turbulent state at a low speed, and obtain a high heat transfer effect. And adopts a special structure to ensure that the two fluid media will not leak.
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
Parameter of our plate exchanger:
Model
Flow
Working Pressure
Plate Thickness
Size(mm)
Weight
Contact material
Sealing material
Connector size
3m2
1T/h
1.0MPA
0.55mm
525*222*450
50
SUS304
EPDM
(Suitable for within 140℃)
Flange DN32
4m2
2T/h
688*275*450
80
Flange DN50
5m2
3T/h
920*320*450
150
6m2
4T/h
920*320*550
155
8m2
5T/h
920*320*450
170
10m2
6T/h
920*320*650
180

Application

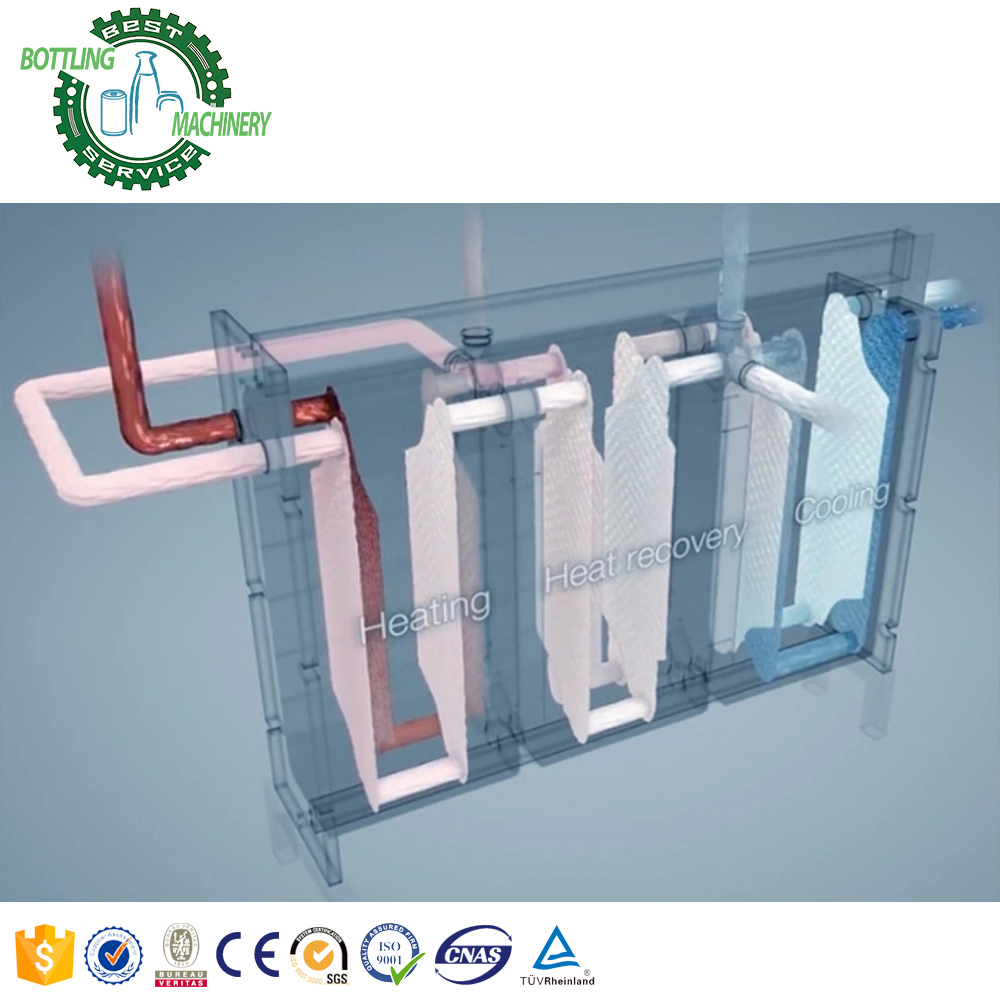

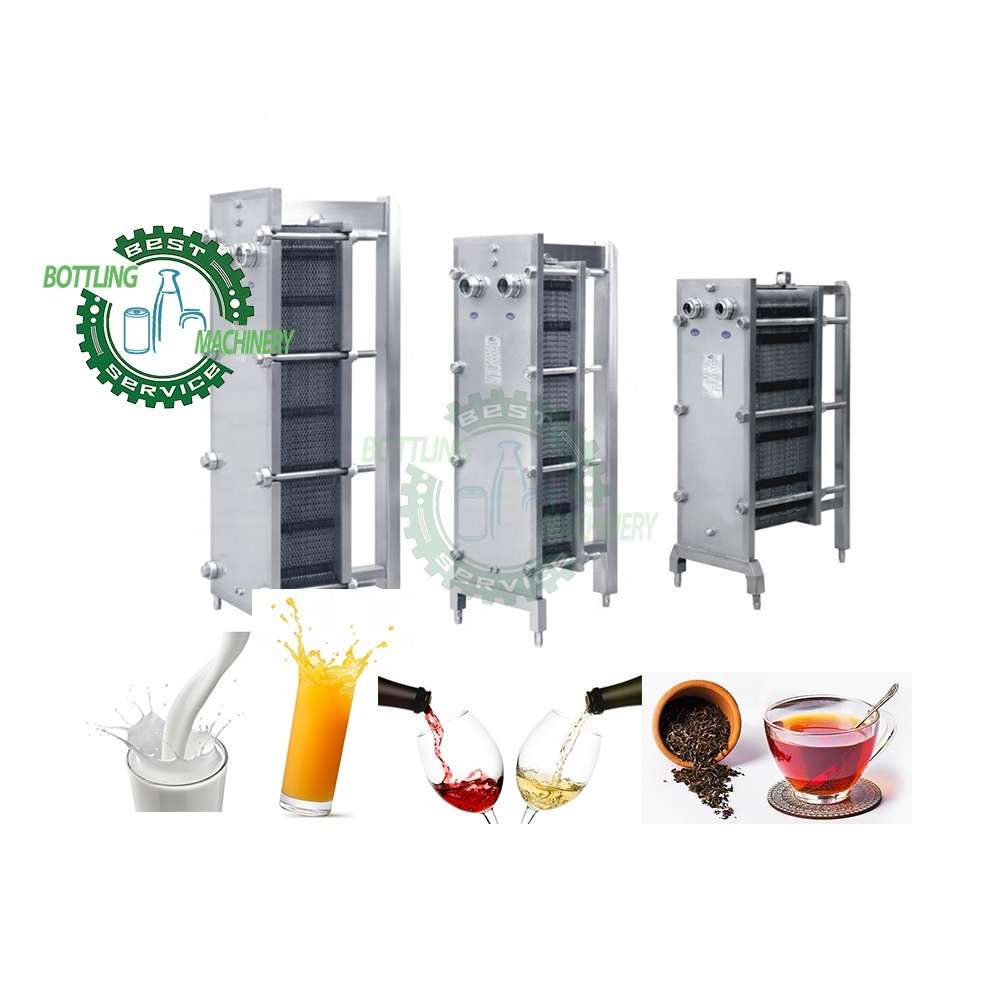

Pasteurization Normal cooling and heating in such industries as dairy, brewage, beverage, food, etc. Heating and cooling in pharmaceutical industry.
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
company profile
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
FAQ
1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.
We can solve basic questions by telephone, email and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.
After packing system(label machine, PE film shrink packing machine, carton machine)
Sachet water packing line
