4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force
4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force
4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force
4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force
Specifications
Brand Name :
D.K.Histron
Model Number :
HC-110T/3200
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 Set
Price :
by model
Payment Terms :
T/T
Supply Ability :
20sets/month
Delivery Time :
50 days
Packaging Details :
depends on model
Product name :
Hydraulic Bending Machine
Material / metal processed :
Stainless Steel,Carbon Steel,ALLOY,Aluminum,Brass / Copper
Automation :
Automatic,manual,Foot-operated,Semi-automatic
Extra services :
End Forming,Machining,Cut To Length,Swaging,Support customized
Warranty :
1 Year
Color :
Blue,Customized,optional,Grey,Red
Voltage :
220V/380V/415V/440V/customized,220V/380V/400V,380V or as required,User define
Type :
Metal bending machine
Description
Bending Machine Press Brake Hydraulic CNC Folding Machine Digital Bending Machine
Product Overview

High Efficiency Electromagnetic Sheet Metal Bending Folding Machine Sheet Metal Press Brake

Key Features
  • Overall welded and processed structure
  • Electric hydraulic proportional servo synchronization, ensuring repeated accuracy
  • Within one stroke, bending pressure can be controlled at random point, repeatability precision ±0.01, parallelism 0.02

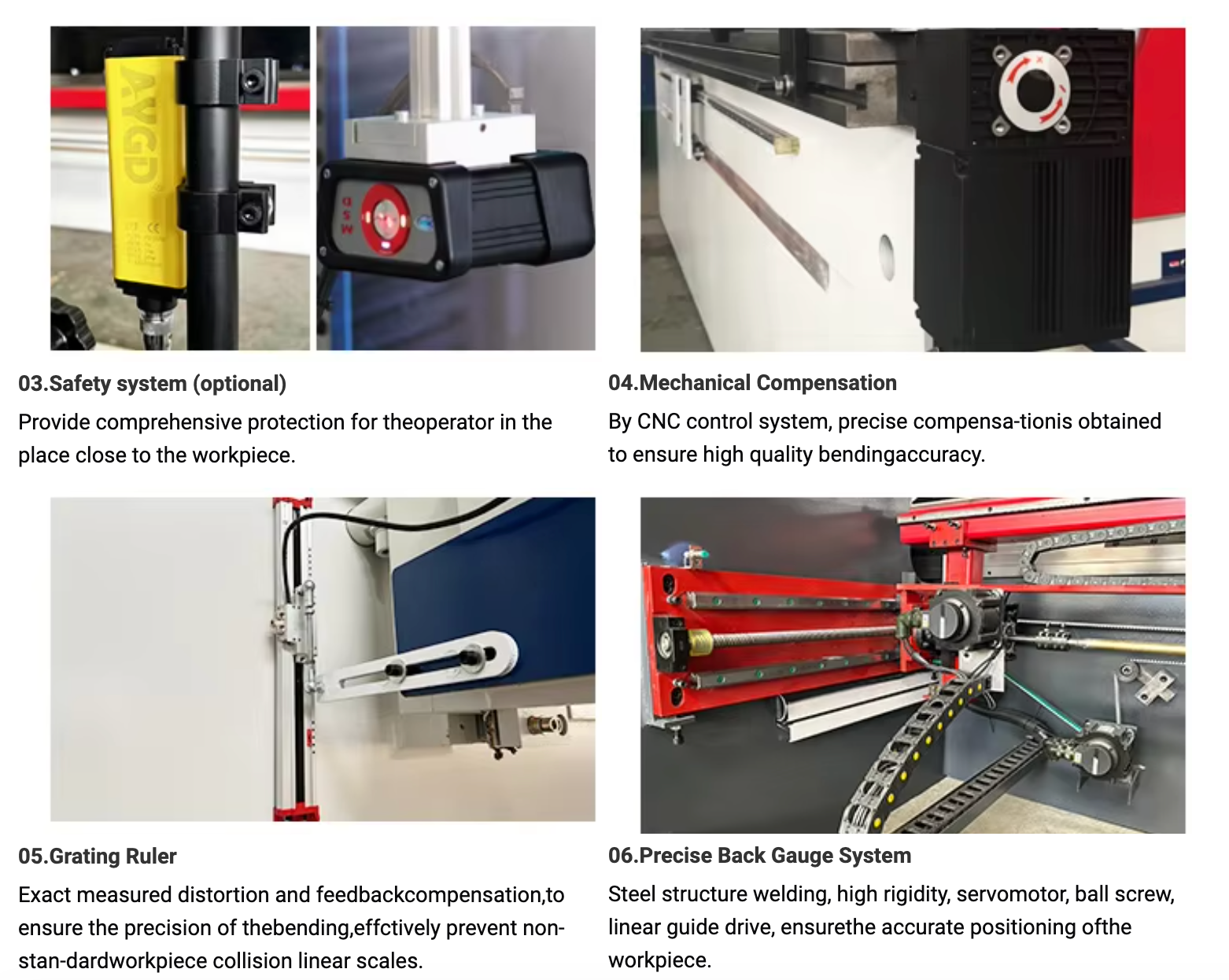

  • Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device
  • Switzerland Cybelec CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance
  • Ram stroke (Y1, Y2), backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision
  • Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher
Technical Specifications
Parameter Specification
Model HC-110T/3200
Normal force 1100KN
Worktable length 3200mm
Worktable width 90mm
Distance between columns 2700mm
Hose depth 350mm
Slider stroke 200mm
Maximum opening height 450mm
Wall panel column thickness 50mm
Slider thickness 60mm
Worktable upright plate thickness 80mm

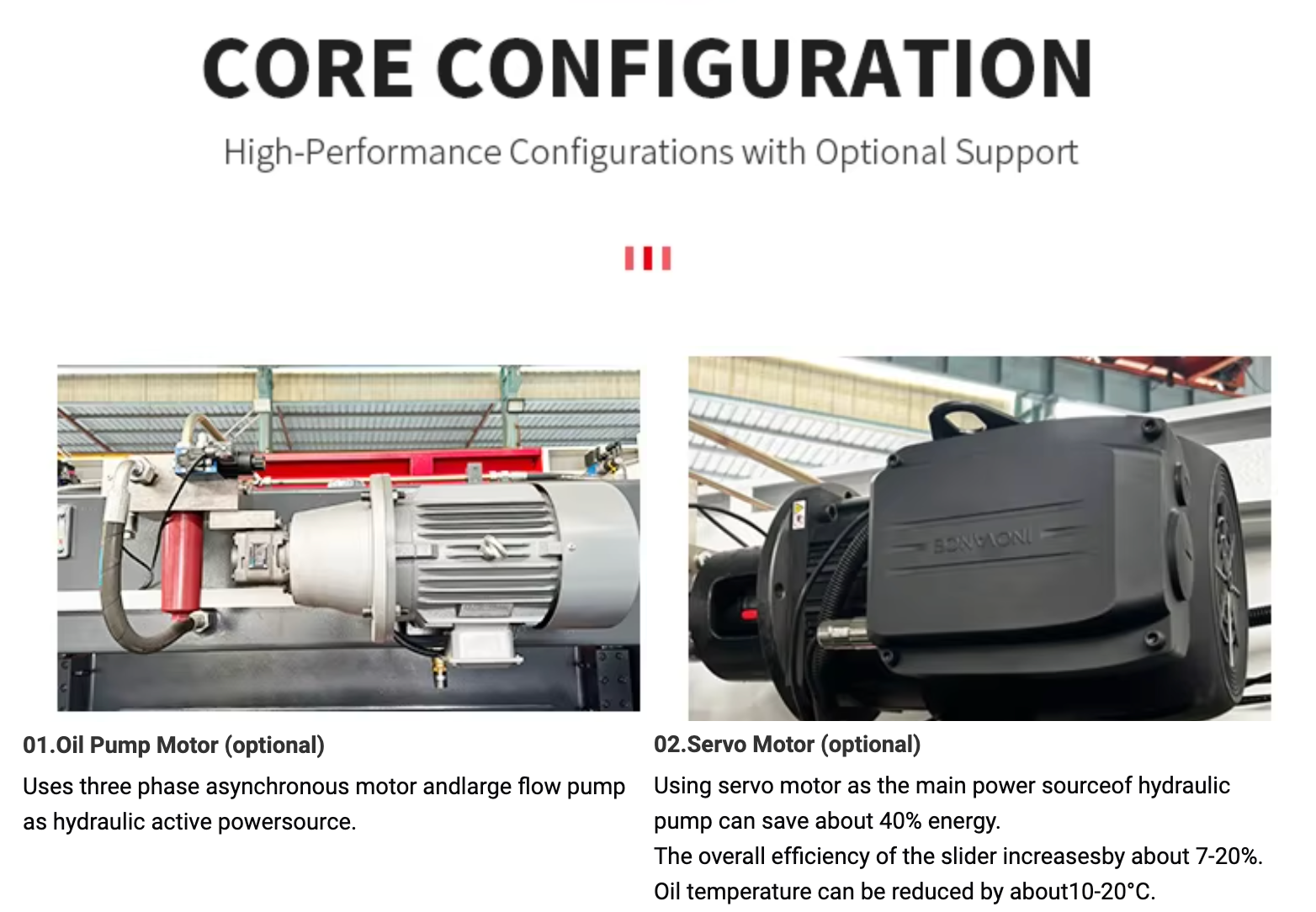

Main motor power - oil pump Motor 11KW-Oil pump 25ml/r
Slider rapid descent speed 180mm/s
Slider return speed 150mm/s
Slider working speed 10mm/s
CNC system DA53T
Number of controlled axes 4 +1 axes
Back gauge X-axis stroke 600mm
Back gauge X-axis speed 200mm/s
External dimensions 3600*1700*2800mm
4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force
4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force

4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force

4 +1 Axes CNC Control Hydraulic Bending Press Brake 1100KN Normal Force

Foundation Installation

The foundation is an integral part of the machine tool. A foundation process drawing is provided for this machine. Users should redesign the foundation construction drawings according to local geological conditions.

Frequently Asked Questions
What kind of documents can you supply?

We provide documents according to customer requests, including Certificate of Origin, Insurance, and other export documentation.

What is the average lead time?

Lead time is approximately 50 days after receiving deposit payment.

Guarantee period?

Our product quality guarantee period is 12 months from B/L date. During this period, we provide spare parts free of charge for quality discrepancies caused by us. For malfunctions due to incorrect customer operations, we offer spare parts at cost price. Flexible extended warranties are available based on actual requirements.

Why Choose Us?

Our teams provide professional, customized, and comprehensive services around the clock. Contact us via WhatsApp, Skype, Email, or Telephone for assistance.
