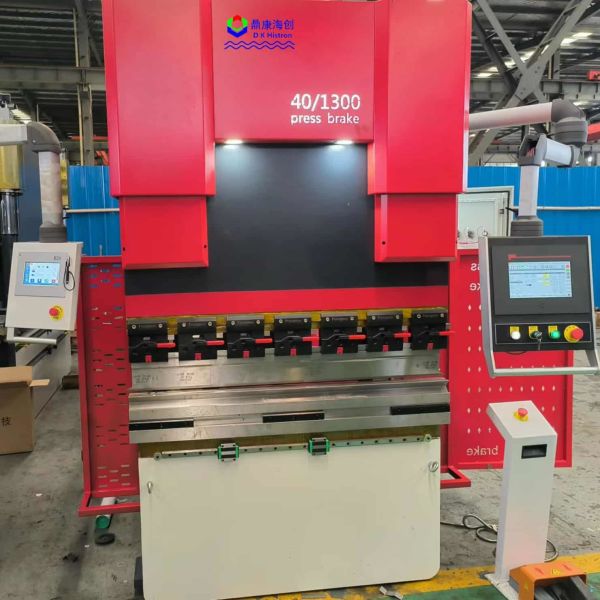

Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Specifications
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20sets/month
Delivery Time :
50 days
Brand Name :
D.K.Histron
Place of Origin :
China
Model Number :
HC-100T/3200
Certification :
CE,ISO9001
Price :
Depends on model
Packaging Details :
by the machine
Product name :
Hydraulic Bending Machine
Material / metal processed :
Stainless Steel,Carbon Steel,ALLOY,Aluminum,Brass / Copper
Automation :
Automatic,manual,Foot-operated,Semi-automatic
Extra services :
End Forming,Machining,Cut To Length,Swaging,Support customized
Warranty :
1 Year
Color :
Blue,Customized,optional,Grey,Red
Voltage :
220V/380V/415V/440V/customized,220V/380V/400V,380V or as required,User define
Type :
Metal bending machine
Description
High Efficiency Electromagnetic Sheet Metal Bending Folding Machine Sheet Metal Press Brake
Key Features
  • Utilizes international brand electro-hydraulic servo valves and scales for closed-loop control, ensuring high-precision slider position feedback
  • Precise and smooth operation with excellent synchronization performance and high bending accuracy
  • High repetitive positioning accuracy of the slider
  • Customizable rear blocking mechanism with enhanced functionality materials
  • Integrated hydraulic control system reduces pipeline installation, prevents oil leakage, and ensures operational stability
  • Hydraulic deflection automatic compensation mechanism eliminates slider deformation effects on workpiece quality
  • CNC system automatically adjusts compensation amount for easy and accurate operation
Product Description

The machine features an overall welded and processed structure, with main components analyzed using ANSYS finite element analysis software to ensure reliability and precision. The CNC control system utilizes renowned brand products capable of graphic programming for bending angles, angle amendment compensation, automatic calculation and adjustment of bending pressure, automatic calculation of workbench distortion compensation, workpiece length extension, bottom bending open distance pressure, and automatic rear stopper withdrawal.

Parameters

Model

HC-110T/3200

Normal force

1100KN

Worktable length

3200mm

Worktable width

90mm

Distance between columns

2700mm

Hose depth

350mm

Slider stroke

200mm

Maximum opening height

450mm

Wall panel column thickness

50mm

Slider thickness

60mm

Worktable upright plate thickness

80mm

Main motor power - oil pump

Motor 11KW-Oil pump 25ml/r

Slider rapid descent speed

180mm/s

Slider return speed

150mm/s

Slider working speed

10mm/s

CNC system

DA53T

Number of controlled axes

4 +1 axes

Back gauge X-axis stroke

600mm

Back gauge X-axis speed

200mm/s

External dimensions

3600×1700×2800mm
Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Sheet Metal Hydraulic Bending Machine Automatic Compensation Closed Loop Controlled
Frequently Asked Questions
What kind of documents can you supply?
We provide documents according to customer requests, including Certificate of Origin, Insurance, and other export documentation.
What is the average lead time?
Lead time is approximately 50 days after receiving deposit payment.
Guarantee period?
Our product quality guarantee period is 12 months from B/L date. During this period, we provide spare parts free of charge for quality discrepancies caused by us. For malfunctions due to incorrect customer operations, we offer spare parts at cost price. Flexible extended warranties are available based on actual requirements.
