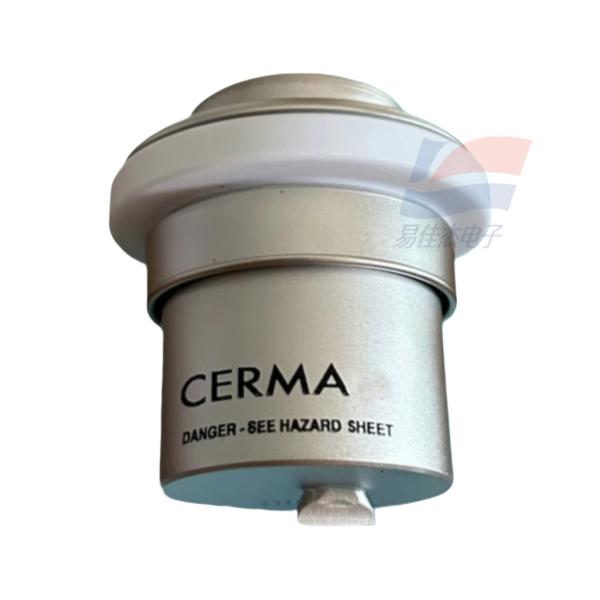

PE300C-10F Xenon Ceramic Body Elliptical Lamp For Medical Fiber Optic Illuminators
PE300C-10F Xenon Ceramic Body Elliptical Lamp For Medical Fiber Optic Illuminators
Specifications
Model Number :
PE300C-10F
Place of Origin :
USA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS
Delivery Time :
5-8 work days
Packaging Details :
Standard packaging
Total Visible Output :
7475 lumens
Nominal Power :
300 watts
Power Range :
200 - 300 watts
Nominal Current :
21 amps (DC)
Current Range :
13 - 26.5 amps (DC)
Ignition Voltage :
23 kilovolts
Description

PE300C-10F Xenon Ceramic Body Elliptical Lamp For Medical Fiber Optic Illuminators

Product Overview:

The PE300C - 10F is a 300 - watt Cermax® xenon ceramic body elliptical lamp. The integrated elliptical reflector creates a converging beam, eliminating the need for secondary focusing optics. The unique oversized reflector improves light collection and maximizes the efficiency of the lamp. It is well - suited for use where small aperture sizes are required.

Applications:

  • Medical fiber optic illuminators
  • Industrial fiber optic illuminators
  • Machine vision
  • Infrared and visible spotlights/beacons
  • Spectroscopy
  • Microscopy
  • UV curing
  • Video projection

Compatible Equipment:

It is compatible with Applied Fibre Optic Xenon Light Sources and the old Stryker X7000. It is also suitable for endoscopes and headlights from Gyrus/ACMI, leading medical manufacturers.

Total Visible Output 7475 lumens
Nominal Power 300 watts
Power Range 200 - 300 watts
Nominal Current 21 amps (DC)
Current Range 13 - 26.5 amps (DC)
Ignition Voltage 23 kilovolts (recommended minimum, system - dependent)
Nominal Operating Voltage 12 volts (DC)
Operating Voltage Range 11.5 - 15 volts (DC)
Lifetime Typically 1000 hours
Maximum Temperature 150 °C
Radiant Output 75 watts
UV Output (<390 nm) 3.8 watts
IR Output (>770 nm) 37 watts
Arc Gap 0.045 inches (1.14 mm)
Beam Geometry (1 hour) 0.06
Beam Geometry (100 hours) 1.5
Beam Geometry (1000 hours) 0.21
Cathode Defocus 'd' 0.005 inches (0.13 mm)
