Specifications
Brand Name :
KRG
Model Number :
NW5
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD 5000-USD30000
Supply Ability :
5000sets/per month
Delivery Time :
20-30 workdays
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
product name :
electromagnetic lifter
keywords :
electromagnetic lifting device
color :
customized
condition :
new
warranty :
12 months
type :
automatic operation
capacity :
3000kg
feature :
powerful
Description

Steel Scrap Electromagnetic Lifter moisture resistance Easy Operation

Electromagnetic Lifter Description

Suitable for cast ingot ,steel ball ,machine chip ,for various kinds of steel scraps ,return scrape ,cropping, baling scraps and etc in foundry factories and for iron powder in coal washery ,during slag disposal process ,it can remove large size of iron at initial step .Outlet box has two chambers, an extra-thick fender and an anti-twist setting .There are the excitation options; rated voltage DC220V; strong excitation; over excitation.

Electromagnetic Lifter Technical Parameters

Mpdel

Diameter(mm)

Dead weight(kg)

Lifting Capacity(ton)

MW5-50L/1

500

220

1.2

MW5-60L/1

600

340

2

MW5-70L/1

700

490

2.5

MW5-80L/1

800

620

3

MW5-90L/1

900

800

4.5

MW5-110L/1

1100

1350

6.5

MW5-120L/1

1200

1700

7.5

MW5-130L/1

1300

2010

8.5

MW5-150L/1

1500

2830

11

MW5-165L/1

1650

3200

12.5

MW5-180L/1

1800

4230

14.5

MW5-210L/1

2100

7000

21

MW5-240L/1

2400

9000

26

MW5-260L/1

2600

10100

30

MW5-280L/1

2800

12450

34

MW5-300L/1

3000

14980

39

Advantages of Electromagnetic Lifter

1. Adopt full sealing structure, good moisture resistance.

2. Reasonable product structure, light weight, large suction, low energy consumption.

3. The electrical and mechanical properties of the coil are improved, and the heat resistance of the insulation material reaches GRADE C, extending the service life.

4. Easy installation, operation and maintenance.

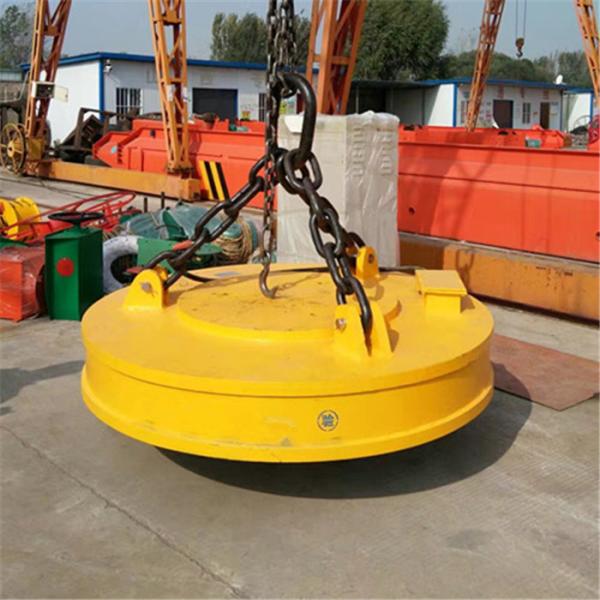

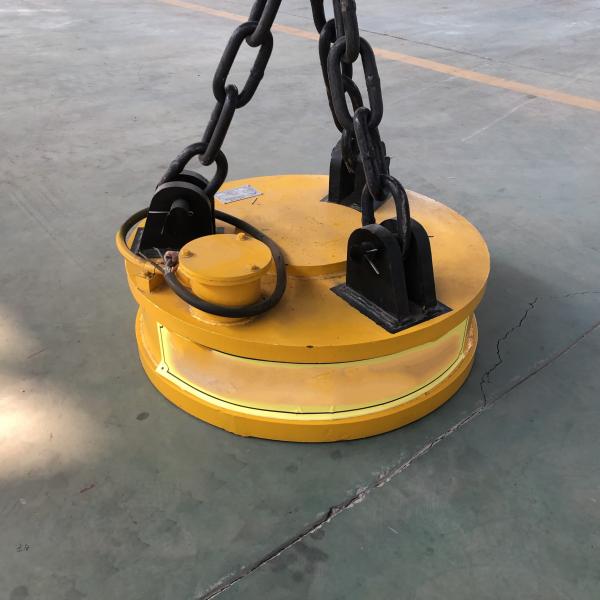

Electromagnetic Lifter Photo
