Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton
Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton
Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton
Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton
Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton
Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton
Specifications
Brand Name :
KORIGCRANES
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 2,000~10,000 /SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 set per month
Delivery Time :
22-30 days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
name :
Electromagnetic Lifter Hanging Beam
Capacity :
0.5-30ton
Operation Control :
Wireless remote control
Application :
Industrial
Shape :
circular, Circular
Tolerance :
±1%
Advantage :
High Efficiency
Color :
As your requirement
Size :
As your requirement
Description

Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton

Electromagnetic Lifter Hanging Beam Working principle

Using low voltage and low current to control high voltage and high current circuits, the risk of electric shock is small. Machines that use electromagnetic principles to transport steel objects. The main part of the electromagnetic bridge crane is the magnet. When the current is turned on, the electromagnet will firmly attract the steel objects and lift them to the destination. Cut off the current, the magnetism disappeared, and the steel object was put down. Electromagnetic crane is very convenient to use

Electromagnetic Lifter Hanging Beam Main specifications

Lifting weight t 5+5 10+10 16+16 25+25
Working class A6 A7 A6 A6
Sapn m 28.5 25 34 25 33 25
Max.lifting height m 12 16 16 10 16 10
Speed Lifting m/min 12.4 12.6 12.6 14.8 16 15.4
Traveling of crab 44.2 42.2 42.2 39 48 40
Traveling of trolley 102 85.2 85.2 106 101 107
Hang beam turn round 1.5 1.36 1.36 1.36 1.85 1.4

Electromagnetic Lifter Hanging Beam Advantages

1.Box-typed girder structure is welded in high strength by robots;

2. Wheels, wire rope winding drums, gears and couplings are manufactured by CNC with best quality;

3. Heavy-duty slip ring motor from Wuxi NGP, the best quality in China

4. Electric equipment from German Siemens

5. Independent control system: wireless control or cab control;

6. Lifting overload protection device;

7. Polyurethane buffer;

8. Crane travel limit switch;

9. Decompression protection;

10. Emergency shutdown device;

11. Current overload protector;

There are 2 kinds of electromagnet spreader: electromagnetic chuck/disc and electromagnetic hanging beam. While the electromagnetic hanging beam also can be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (includes upper rotating mechanism and hanging beam).

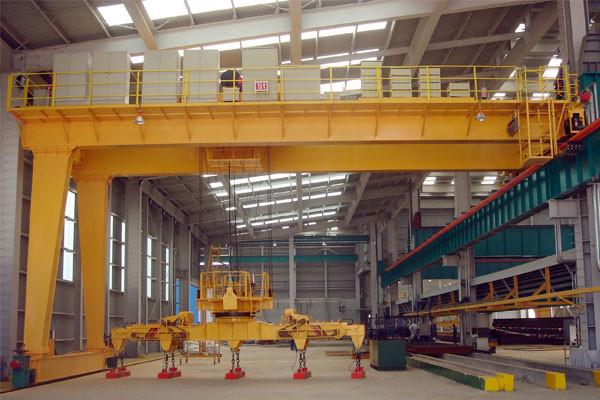

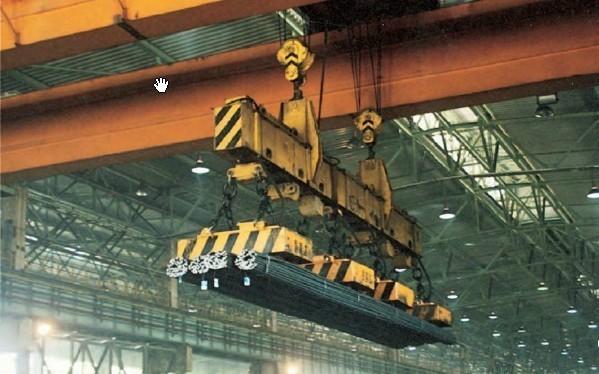

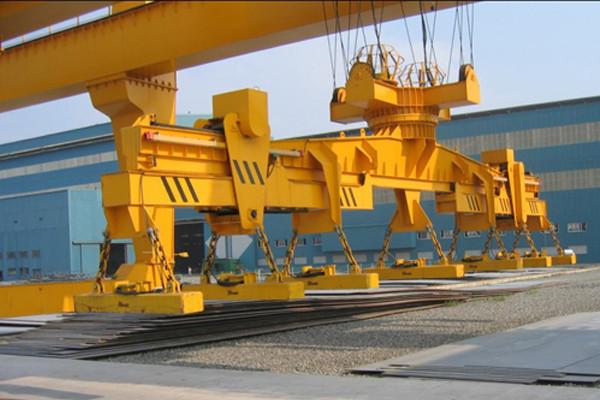

Electromagnetic Lifter Hanging Beam Images


Bridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 TonBridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 TonBridge Crane Electromagnetic Lifter Hanging Beam 0.5 Ton - 30 Ton
