0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane
0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane
0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane
0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane
0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane
0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane
Specifications
Brand Name :
KORIGCRANES
Certification :
ISO/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 2,000~10,000 /SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 set per month
Delivery Time :
22-30 days
Packaging Details :
Main beams are packaged by plastic cloth; Electric parts are packaged by fumigation wooden box.
name :
Hanging Electromagnetic
Capacity :
0.5-30ton
Operation Control :
Wireless remote control
Application :
Industrial
Shape :
circular, Circular
Tolerance :
±1%
Advantage :
High Efficiency
Color :
As your requirement
Size :
As your requirement
Description

0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane

Hanging Electromagnetic Introduction

Electromagnetic bridge cranes with removable electric disks are especially suitable for heavy loading and unloading and handling of magnetic ferrous metal products and materials (such as steel ingots, section steels, pig iron blocks) in fixed spans indoors or in the open air in metallurgical plants. It is also commonly used in factories and warehouses to transport materials such as steel, iron blocks, scrap iron, scrap steel, iron filings and so on.

The lifting equipment electromagnetic bridge crane belongs to the heavy-duty (A6) work system, and the crane includes the self-weight of the electric disk.

The suction power of the electromagnetic beam can last 10 minutes after power off. And the electromagnetic spreader size and shape can be customized according to the steel materials lifted.

Hanging Electromagnetic Parameter

Lifting weight t 5+5 10+10 16+16 25+25
Working class A6 A7 A6 A6
Sapn m 28.5 25 34 25 33 25
Max.lifting height m 12 16 16 10 16 10
Speed Lifting m/min 12.4 12.6 12.6 14.8 16 15.4
Traveling of crab 44.2 42.2 42.2 39 48 40
Traveling of trolley 102 85.2 85.2 106 101 107
Hang beam turn round 1.5 1.36 1.36 1.36 1.85 1.4

Overhead-crane-electromagnetic-beam Lifter

1.Box-typed girder structure is welded in high strength by robots;

2. Wheels, wire rope winding drums, gears and couplings are manufactured by CNC with best quality;

3. Heavy-duty slip ring motor from Wuxi NGP, the best quality in China

4. Electric equipment from German Siemens

5. Independent control system: wireless control or cab control;

6. Lifting overload protection device;

7. Polyurethane buffer;

8. Crane travel limit switch;

9. Decompression protection;

10. Emergency shutdown device;

11. Current overload protector;

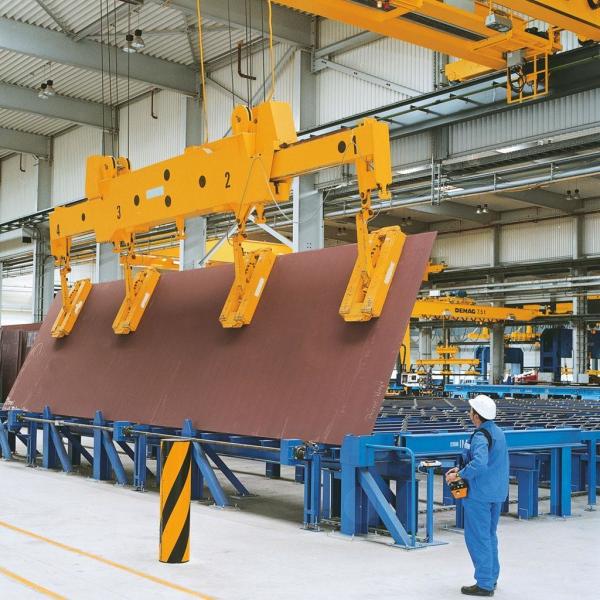

Hanging Electromagnetic Images

0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane0.5 - 30 Ton Double Girders Hanging Electromagnetic Beam For Crane
