MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap
Specifications
Brand Name :
KORIG
Certification :
CE ISO
Place of Origin :
HENAN
MOQ :
1 set
Price :
＄1000-100000
Payment Terms :
L/C, T/T
Supply Ability :
100000set/year
Delivery Time :
30 days
Packaging Details :
1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion; 2.Other parts are packed as standard or as your requirements
Video outgoing-inspection :
Provided
Core Components :
PLC, Motor, Pump
Dimension(L*W*H) :
customized
Shape :
Circular
Usage :
Moving Objectives
Machinery Test Report :
Provided
Warranty of core components :
1 year
Material :
Stainless Steel
Magnetic keeper battery :
include
Feature :
Safety Lift
Description

MW5 100vDC 220v Electromagnetic Lifting Devices For Lifting Metal Scrap

Electromagnetic Lifting Devices Introduction

1.Suitable for casting, steel ball, iron, machine chip, for various kinds of steel scraps, return scraps, cropping, baling scraps and etc in factories and for iron powder in coal preparation plant, During slag disposal process, it can remove large size of iron at initial step, outlet box has two chambers, an extra-thick fender and anti-twist setting, there are the excitation options; rated voltage DC220V; strong excitation over excitation.


2.Normal Temperature Billet Lifting Electromagnet whose shape is rectangle is especially suitable for lifting and transporting billet, steel ingot, bloom, etc.. Different magnetic circuits are designed for different steels.

Electromagnetic Lifting Devices Specification

Mpdel

Diameter(mm)

Dead weight(kg)

Lifting Capacity(ton)

MW5-50L/1

500

220

1.2

MW5-60L/1

600

340

2

MW5-70L/1

700

490

2.5

MW5-80L/1

800

620

3

MW5-90L/1

900

800

4.5

MW5-110L/1

1100

1350

6.5

MW5-120L/1

1200

1700

7.5

MW5-130L/1

1300

2010

8.5

MW5-150L/1

1500

2830

11

MW5-165L/1

1650

3200

12.5

MW5-180L/1

1800

4230

14.5

MW5-210L/1

2100

7000

21

MW5-240L/1

2400

9000

26

MW5-260L/1

2600

10100

30

MW5-280L/1

2800

12450

34

MW5-300L/1

3000

14980

39

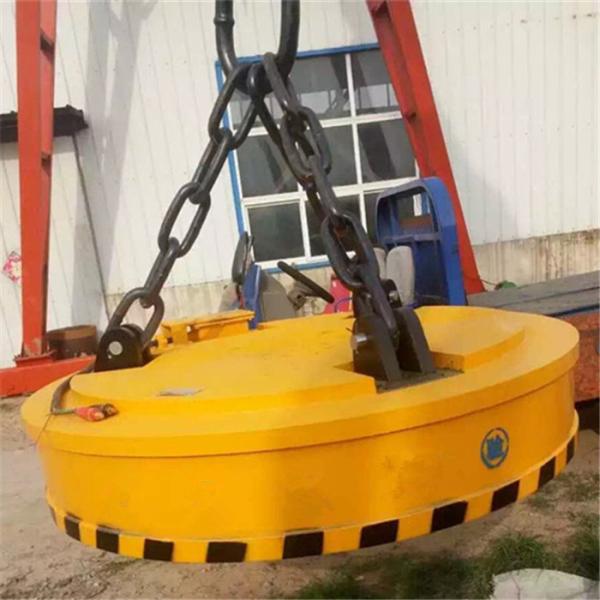

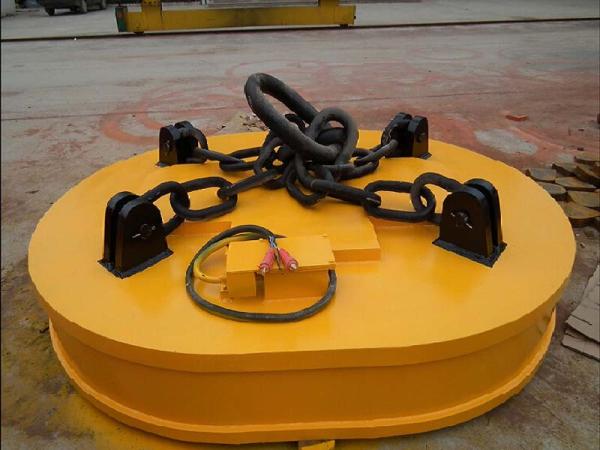

Electromagnetic Lifting Devices Images
