Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC
Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC
Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC
Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC
Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC
Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC
Specifications
Brand Name :
Siemens
Model Number :
CJ1W-MAD42
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
PFX5-CCL-MS :
PLC Industrial Control
Part Number :
CJ1W-MAD42
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
CJ1W-MAD42
Description
Sinamics CJ1W-MAD42 Overview

The CJ1W-MAD42 is a high-performance analog I/O module designed for Omron SYSMAC CJ series PLCs. It provides 4 analog inputs and 2 analog outputs, supporting both voltage and current signals for versatile industrial monitoring and control. With fast 1 ms conversion speed, 1/4000 high resolution, and stable accuracy, it integrates smoothly into automation systems for precise process control. The module features removable screw terminals for easy wiring and DIN‑rail mounting for compact cabinet layout.

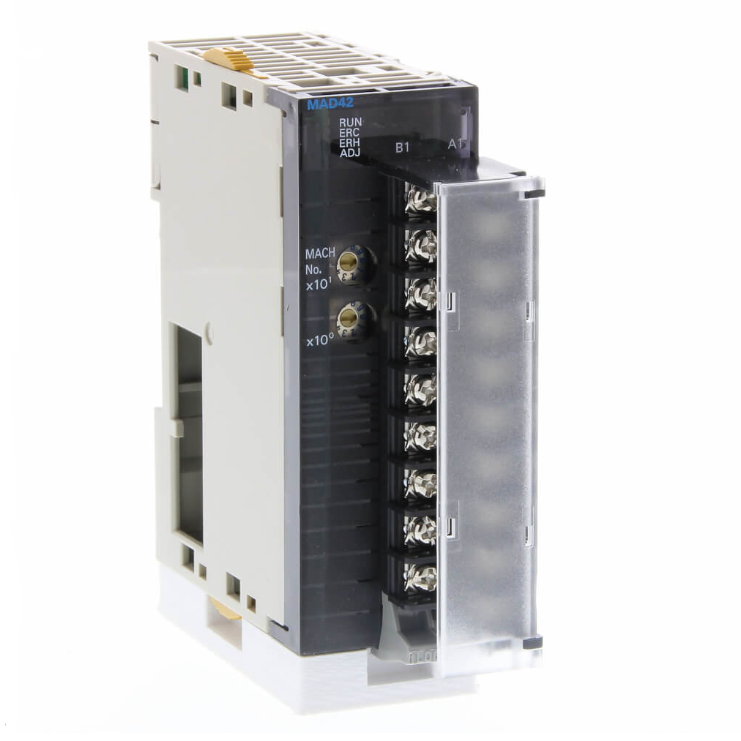

Figure 1 shows the front panel of CJ1W-MAD42.

Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC












Omron CJ1W-MAD42 Analog I/O Module for CJ Series PLC
















Quick Specs.

Table 1 shows the Quick Specs

Item Details
Model CJ1W-MAD42
Type Analog I/O Unit
Inputs 4 Analog (Voltage/Current)
Outputs 2 Analog (Voltage/Current)
Resolution 1/4000
Conversion 1 ms/point
Mounting DIN Rail
Terminals Removable Screw




Full Specification Table

Parameter Specification
Model CJ1W-MAD42
Series SYSMAC CJ Series
I/O Type Analog Input & Output
Analog Inputs 4 points
Input Ranges -10~10V, 0~5V, 0~10V, 1~5V, 4~20mA
Analog Outputs 2 points
Output Ranges -10~10V, 0~5V, 0~10V, 1~5V, 4~20mA
Resolution 1/4000 (scalable to ±32000 / 1/8000)
Conversion Time 1 ms per point
Accuracy ±0.3% F.S. (25°C)
Isolation I/O to PLC bus: Optocoupler
Connector Removable screw terminal block
Dimensions 90 × 31 × 65 mm
Weight Approx. 0.15 kg
