Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive
Specifications
Brand Name :
Siemens
Model Number :
a06b-6102-h115#h520
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
PFX5-CCL-MS :
PLC Industrial Control
Part Number :
a06b-6102-h115#h520
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
Warranty :
1 year
Keywords :
a06b-6102-h115#h520
Description
Sinamics a06b-6102-h115#h520 Overview
A06B-6102-H115#H520 is a CE-certified Alpha Series Spindle Amplifier Module (SPM-15) designed for high‑performance CNC machine tools. It provides stable, precise spindle control with 17.5 kW rated power and 63 A output current, compatible with Alpha 12/P15/P18 spindle motors. Featuring Type 4 alpha sensor and Cs contour control, it ensures high machining accuracy and reliability. Built-in dual cooling and industrial-grade design extend service life in harsh production environments. Widely used in CNC lathes, milling machines, and machining centers, it is a reliable drive solution for automated manufacturing.

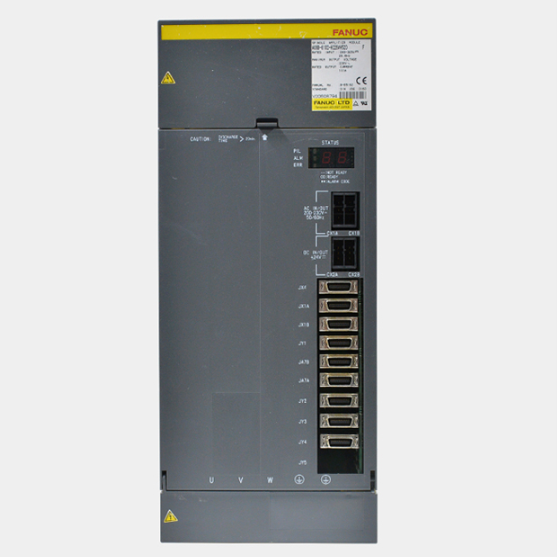

Figure 1 shows the front panel of a06b-6102-h115#h520.

Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive











Fanuc A06B-6102-H115#H520 Alpha Spindle Amplifier Module SPM-15 CNC Drive


















Quick Specs.

Table 1 shows the Quick Specs

Item Value
Part Number A06B-6102-H115#H520
Type Alpha Spindle Amplifier (SPM-15)
Input 283–325 VDC, 17.5 kW
Output 230 VAC, 63 A
Certification CE Approved




Full Specification Table

Parameter Details
Manufacturer FANUC
Model A06B-6102-H115#H520
Series Alpha Type 4 Spindle Module
Model Code SPM-15
Input Voltage 283–325 VDC
Rated Power 17.5 kW
Output Voltage 230 VAC
Rated Output Current 63 A
Compatible Motors Alpha 12, Alpha P15, Alpha P18
Control Interface Type 4 Alpha Sensor, Cs Contour Control
Dimensions (W×H×D) 150 mm × 380 mm × 307 mm
Cooling Internal + External Fan
Approval CE
Application CNC Milling, Lathe, Machining Center
