Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Specifications
Brand Name :
Siemens
Model Number :
FX1N-40MR-DS
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Product Name :
PLC Industrial Control
Part Number :
FX1N-40MR-DS
Shipment :
DHL
Condition :
New
Lead Time :
2-3 days
warranty :
1 year
Keywords :
AIG02GQ02D
Description
Sinamics FX1N-40MR-DS Overview

The FX1N-40MR-DS is a compact, high‑performance programmable logic controller from Mitsubishi’s MELSEC‑FX1N series. It integrates CPU, power supply, 24 DC inputs, and 16 relay outputs in a space‑saving design, ideal for small‑to‑medium automation systems. With 12–24VDC power input, battery‑free data retention, and expandable I/O up to 128 points, it delivers stable control for machinery, assembly lines, and environmental systems. Reliable, easy to program, and maintenance‑free, the FX1N-40MR-DS is a cost‑effective solution for industrial automation.

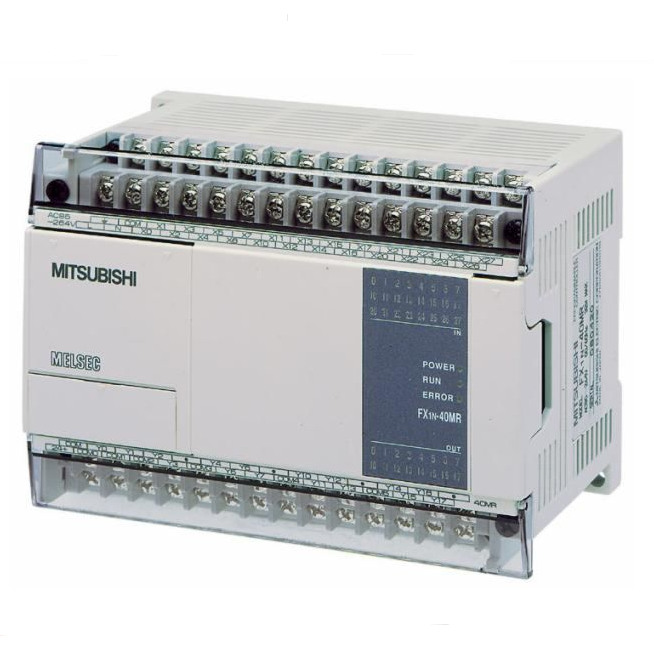

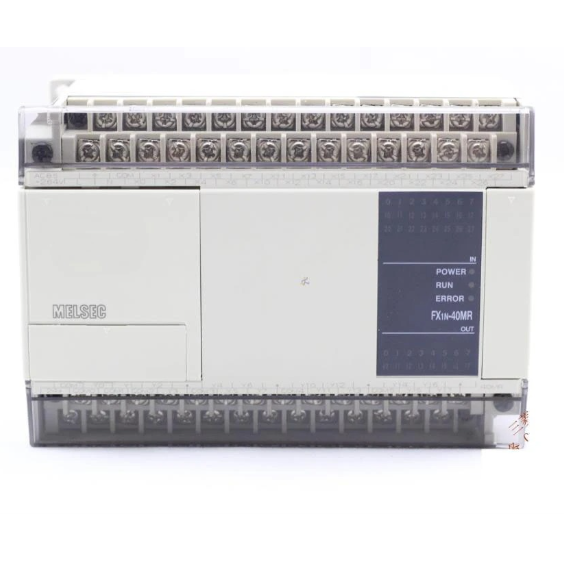

Figure 1 shows the front panel of FX1N-40MR-DS.

Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply










Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply











Quick Specs.

Table 1 shows the Quick Specs

Item Details
Model FX1N-40MR-DS
Brand Mitsubishi
Total I/O 40 points
Input 24 points DC 24V
Output 16 points relay
Power Supply 12–24VDC
Dimensions 130×90×75 mm
Weight 0.65 kg









Detailed Specification
Parameter Specification
Model FX1N-40MR-DS
Series MELSEC‑FX1N
Supply Voltage 12–24 VDC
Power Consumption 18 W
Input Type 24×DC 24V sink input
Output Type 16×relay output, 2A per point
Program Memory 8000 steps EEPROM (battery‑free)
Processing Speed 0.55 μs per basic instruction
Operating Temperature 0–55 °C
Storage Temperature -20–70 °C
Humidity 5–95% RH (no condensation)
Dimensions (W×H×D) 130 × 90 × 75 mm
Weight 0.65 kg
Mounting DIN rail or panel mounting
Protection IP10 (enclosure)
Expansion Max 128 I/O with extension modules
Features Built‑in clock, PID, high‑speed counter




Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
Mitsubishi FX1N-40MR-DS Compact PLC 40 I/O Relay Output DC Power Supply
