Binocular 6V 12W Inverted Optical Microscope Compound Metallurgical 100X 1250X
Binocular 6V 12W Inverted Optical Microscope Compound Metallurgical 100X 1250X
Specifications
Brand Name :
Phidix
Model Number :
M13110
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Binocular
Theory :
Metallurgical Microscope
Lead-time :
15-20 Work Days
Magnification :
100X-1250X
Stage :
75x50 mm
Light Source :
6V 12W Halogen Lamp
Description

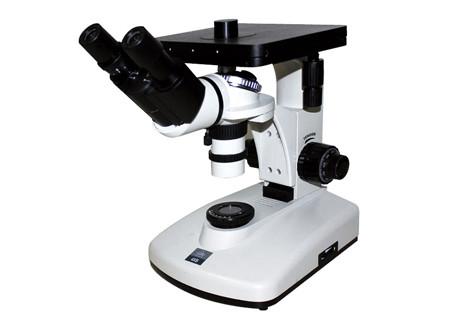

M13110 High Quality Binocular Inverted Metallurgical Microscope. This binocular-type inverted metallurgical microscope is used for the identification and analysis of various metals and alloys of the organizational structure, the general microstructure of the research work for the material after heat treatment. Microscope imaging is clear, of broad vision; the overall design is in line with the man-machine functions, fit to being operated for a long time. It can be widely used in factories or laboratories for the identification of casting quality. For example, raw material inspection or the treated material microstructure research and analysis work.

Features:

  • This is an inverted optical microscope, because the surface of the specimen was observed coincide with the table surface, so it has nothing to do with the sample height;
  • The use of convenience, the apparatus of compact structure, elegant appearance, apparatus base supporting the larger, curved arm robust, low center of gravity so that the equipment placed smooth and reliable;
  • The eyepiece with the support surface is tilted 45 degrees, so that the observation is comfortable.

Item Description / Value
View tube: Binocular
Eyepiece: Flat-field Eyepiece, 10X/18mm, 12.5X/15mm
Objective:

10X/0.25 WD7.31mm

40X/0.65 WD1.25mm

100X(oil)/1.25 WD0.37mm
Magnification: 100X-1250X
Mechanical Tube Length: 160mm
Focusing: Rough Focusing, Fretting Institutions:Focus Range 7 mm；Lattice-valued Scale 0.002 mm
Mechanical Stage: 75 x 50mm
Light Source: 6V 12W Halogen Lamp (bromine tungsten lamp)
Gross Weight: 5.00kg

Binocular 6V 12W Inverted Optical Microscope Compound Metallurgical 100X 1250X
