50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters
50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters
50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters
50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters
Specifications
Brand Name :
Phidix
Model Number :
M13113
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Metallurgical Microscope
Lead-time :
15-20 Work Days
Magnification :
50X-1000X
Eyepiece :
WF10X/20mm
Nosepiece :
4-Position
Objective :
10X, 20X, 50X, 80X
Stage :
Double Layers Mechanical Stage
Focusing :
Coaxial Coarse & Fine
Illumination :
12V 50W Halogen Lamp
Description

50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters

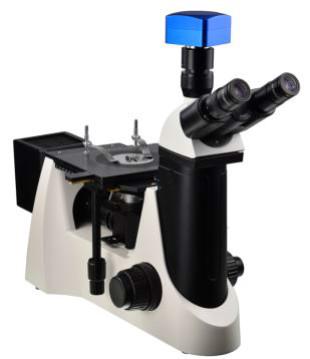

M13113 50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters. The M13113 series has a slim wedge shaped design that saves bench space and offers excellent stability. The drop down stage controls are ergonomically positioned to provide comfort and ease of use for the operator. An integrated 12V 50W vertical Koehler halogen illuminator with a variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. The M13113 is designed to meet your most diverse needs for materials research. It is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as micro-structure analysis, various materials testing, QA and QC examination and photomicrography. It is also equipped with yellow, blue, green, and polarizing filters.

Features:

  • A slim wedge shaped design that saves bench space and offers excellent stability.
  • An integrated 12V 50W vertical Koehler halogen illuminator.
  • Well suited for examination of mounted metallurgical specimens or for routine quality inspections.
  • Equipped with yellow, blue, green, and polarizing filters

Item Specification M13113
Observation Tube: Trinocular head inclined at 30° ●
Interpupillary distance: From 48-75mm ●
Eyepiece: WF10X/20mm , WF10X/18mm reticule eyepiece ●
Objectives:

Infinity plan achromatic 10X, 20X(spring), 50X(spring),

80X(spring) objectives

 ●
Stage:

Mechanical stage with size 180x155mm,X-Y travel is 80x50mm

with graduation of 0.1mm

 ●
Nosepiece: Quintuple nosepiece with Infinity Corrected F=200MM ●
Focusing:

Coaxial focusing knob, fine focusing is graduated in increment of

1um

 ●
Illumination: 12V 50W halogen lamp ●
Power supply: 100-240V ●
Standard accessories:

Dust cover, blue/ yellow/ green filter, fuse, simple polarization,

power cord

 ●
Optional accessories WF10X/22mm eyepiece ○
WF10X/22mm pointer eyepiece ○
WF10X/20mm reticule eyepiece ○
5X plan achromatic objective ○
100X plan achromatic objective(dry) ○
5W LED illumination ○
C-mount adapter ○
digital camera adapter ○
3M/5M/10M/16M/HD camera ○

Note: ● means standard, ○ means optional
