50X-1000X Inverted Optical Microscope Metallurgical WF PL10X Trinocular
50X-1000X Inverted Optical Microscope Metallurgical WF PL10X Trinocular
Specifications
Brand Name :
Phidix
Model Number :
M13104
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Metallurgical Microscope
Lead-time :
15-20 Work Days
Optical System :
Achromatic System
Observation :
Bright Field, Polarization
Eyepiece :
WF PL10X/18mm
Objective :
5X, 10X, 20X, 50X,100X
Nosepiece :
Quadruple Nosepiece
Light Source :
Halogen Lamp 6V/30W
Description

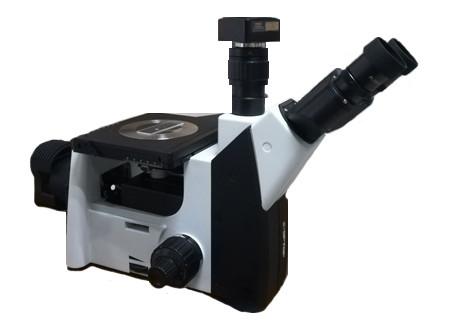

50X-1000X Trinocular Inverted Laboratory Industrial Metallurgical Microscope

M13104 50X-1000X Trinocular Inverted Laboratory Industrial Metallurgical Microscope It is an inverted metallurgical microscope. The ideal design that meets the requirements of ergonomics makes the operation more convenient and comfortable, and the space is wider.

Features:

- The amplification rate in standard configuration is 500X, which is fit for most of the industrial applications.

- The observation way is easy to change among transmission, reflection, polarization and dark-field.

- The optional camera can realize the functions including taking pictures, recording and measuring.

- This equipment is widely used to PCB copper thick slices and green oil thickness measurement, coating thickness measurement and diamond cutter blade observation.

Item Description / Value
Observation: Bright field, polarizing
Optical system: Plan Achromatic system
View tube:

Trinocular, 45°inclined, 360° rotating.

Splitting ratio: 80%~20%.

IPD adjustment: 54mm ~ 75mm. Diopter adjustment: ± 5 diopters.
Eyepiece: High eye WF PL10X(Φ18mm)
Objective: Long working distance plan metallurgical objective: Standard: 5X, 10X, 20X, 50X,Optional: 100X
Nosepiece: Quadruple (4-position)
Stage:

Double layer Mechanical stage: 180mm * 145mm. Right hand control for X and Y direction.

Moving range: 75mm * 40mm

Precision: 0.1mm
Focusing system:

Coaxial coarse and fine focusing system.

Coarse regulation range: 38mm, Fine adjustment accuracy: 0.002mm

Tightness and height limitation of coarse regulation are adjustable

Focusing stopper for protecting objective and samples.
Illumination:

Reflected and transmitted illimulation, with center adjustable field stop and Iris aperture stop.

6V/30W halogen lamp or LED lamp,brightness adjustable.
Camera adapter: 0.5X or 1X C-Mount
Camera: Optional
Power supply: AC100V-240V, 50/60Hz

50X-1000X Inverted Optical Microscope Metallurgical WF PL10X Trinocular
