2000X 50X 100X Medical Laboratory Microscope 75x40mm Polarized Optical Microscopy
2000X 50X 100X Medical Laboratory Microscope 75x40mm Polarized Optical Microscopy
Specifications
Brand Name :
Phidix
Model Number :
M13103
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Metallurgical Microscope
Lead-time :
15-20 Work Days
Eyepiece :
PL10X/18mm WF15X/13mm WF20X/10mm Optional
Objective :
5X, 10X, 20X, 50X, 100X
Head :
Gemel Trinocular Head, 45° Inclined With Adjustment Diopter
Nosepiece :
Quadruple Nosepiece Or Quintuple Nosepiece
Mechanical Stage :
180*155mm
Moving Range :
75*40mm
Description

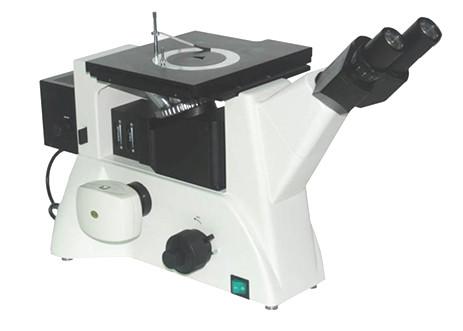

2000X Trinocular Inverted Metallurgical Microscope

M13103 2000X Trinocular Inverted Metallurgical Microscope The lighting system fully considers heat dissipation and safety, and the bulb can be replaced quickly. The ideal design that meets the requirements of ergonomics makes the operation more convenient and comfortable, and the space is wider. It can be used for microscopic observation of semiconductor silicon wafers, LCD substrates, solid powders and other industrial samples.

Features:

- It’s widely used in metallographic analysis, semiconductor silicon wafers detection, geological and mineral analysis, precise engineering, measurement and other fields.

- The ideal design that meets the requirements of ergonomics makes the operation more convenient and comfortable, and the space is wider. It can be used for microscopic observation of semiconductor silicon wafers, LCD substrates, solid powders and other industrial samples.

- It is an ideal instrument for research in the fields of materials science and precision electronic engineering, with high-precision course and fine focusing mechanism and large size mechanical mobile platform.

Item Description / Value
Head: (Color corrected finity optical system) Low position coaxial focus system, coarse: 38mm per rotation, fine precision 0.002mm, Gemel trinocular head, 45° inclined, with adjustment diopter, inter-pupillary range 54-75mm. Light split rate: 80%/20%
Eyepiece:

PL10X/18mm

PL10X/18mm with micrometer

WF15X/13mm

WF15X/13mm with micrometer

WF20X/10mm
Objective:

Long working distance plan achromatic metallurgical objective

5X LMPL5X/0.13 WD=15.50mm

10X LMPL10X/0.25 WD=8.70mm

20X LMPL20X/0.40 WD=8.80mm

50X LMPL50X/0.60 WD=5.10mm

100X LMPL100X/0.80 WD=2.00mm
Nosepiece: BS-NPI4 / BS-NP15 Quadruple nosepiece
Machine appearance: Mechanical stage, size:180*155mm, low position by right hand, moving range: 75*40mm, precision 0.1mm
Stage board: Metal stage board(φ12 / φ 25 inner aperture)
IE200M LED: Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240V, 5W LED bulb (2850-3250K), with continuous intensity.
Gross Weight: 64.5*34.3*44cm
Packaging Size: 7.80 kg

2000X 50X 100X Medical Laboratory Microscope 75x40mm Polarized Optical Microscopy
