40X/0.6 Cell Culture Inverted Microscope Trinocular 10X/0.2 6V 20W Halogen Lamp
40X/0.6 Cell Culture Inverted Microscope Trinocular 10X/0.2 6V 20W Halogen Lamp
Specifications
Brand Name :
Phidix
Model Number :
M13107
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Packing :
1 PC/Carton
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Eyepiece :
WF10X
Light Source :
6V 20W Halogen Lamp
Description

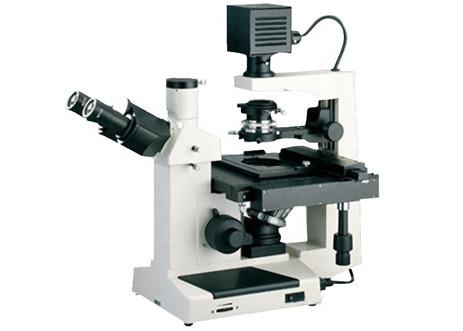

Trinocular Inverted Microscope With Camera For Cell Culture

M13107 is an inverted biological microscope specially designed for cell culture observing, for example the biological lab in the university.

Features:

- It can take pictures or record a video and save it in a computer for analysis.

- An inverted microscope is a very helpful instrument for the observers to check and observe the cell culturing and splitting status.

Item Description / Value M13107
Optical system: Universal infinity plan achromatic optical system. ●
View tube:

Trinocular phototube tube, 45° inclining

IPD adjustment: 54mm ~ 75mm, diopter adjustment: ±5

 ●
Eyepiece: High eye level wide field WF PL10 /22mm. Central telescope ●
Objective:

Infinity Long working distance Plan achromat objective:

10X/0.25 , 25X/0.4 , 40X/0.6

Infinity Long working distance Plan achroma phase contrast objective: 10X/0.25.

 ●
Nosepiece: Revolving 5 position nosepiece ●
Illumination: Halogen lamp Transmitted Illuminator ●
Focusing:

Coaxial coarse and fine focusing system. Movement by roller guider (Roller and pinion). Rubber grip around fine and coarse adjust knob.

Tension adjustment of coarse regulation knob. Upper limit stoper for protecting the lens and sample. Fine adjustment accuracy: 0.002mm.

 ●
Stage:

Flex M Frame Stage with Exchangeable transparent insert plate for Specimens, Slides and Petri Dishe etc.

XY coaxial knob place on right side of the plain stage.

Microplate holder equipped with the escape function.

Stage. Stage size: 224×208mm, stage stroke: 112mm ×79mm

 ●
Condenser: Long Working Distance Condenser. ●
Camera adapter: 0.5X or 1X C-Mount. ●
Accessories: Dust cover, manual, cleaning kits, all necessnary cables. ●
Camera: Optional ○
Power supply: AC100-240V, 50/60Hz ●

Note: ● means standard, ○ means optional
