Specifications
Brand Name :
Phidix
Model Number :
M13117
Certification :
IATF16949，CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 PCS/Month
Delivery Time :
15-20 Work Days
Packaging Details :
1 PC/Carton
Color :
White
Customization :
OEM, ODM
Warranty :
1 year
Drawtube :
Trinocular
Theory :
Biological Microscope
Lead-time :
15-20 Work Days
Magnification :
40X-400X
Eyepiece :
WF10X/22mm
Nosepiece :
5-Position
Viewing Head :
360 Rotatable
Stage :
Mechanical stage
Filter :
Blue & Green
Illumination :
6V/30W Halogen
Description

40X-400X Inverted Biological Microscope Designed for Observation and Cultivation for Cell Tissue

M13117 40X-400X Inverted Biological Microscope Designed for Observation and Cultivation for Cell Tissue. By using LWD infinity plan phase contrast objectives, it can easily realize phase contrast observation. Furthermore, it has Epi fluorescence illumination to choose.

Features:

- Oversize view field eyepiece, view field up to 22mm for comfortable observation.

- New research and new development.

- Koehler illumination with two options, 6V/30W and 5WLED

- Light distribution (both): 100 : 0 (100% for eyepiece), 80 : 20 (80% for trinocular head and 20% for eyepiece).

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

Long working distance condenser N.A. 0.30, Working distance:72mm

Working distance: 195mm (without condenser), available for extra high culture dish

Large size stage convenient for research, Size:240mm(X)× 210(Y)mm Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

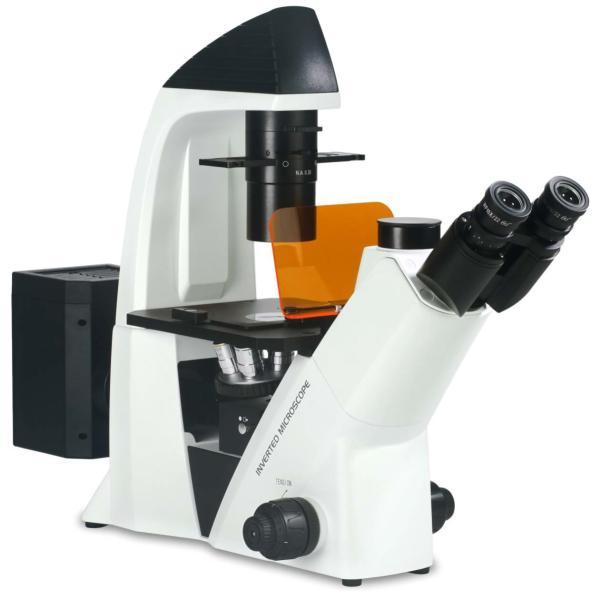

M13117B Inverted Fluorescence Microscope

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

Large diameter quintuple nosepiece can be installed more objectives, more convenient for using. Light distribution (both): 100:0 (100% for eyepiece); 80:20 (80% for trinocular head and 20% for eyepiece)

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

M13117A Inverted Biological Microscope Size(mm)

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

M13117B Inverted Fluorescence Microscope Size(mm)

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

M13117 Inverted Biological Microscope General Layout Diagram

40X-400X Inverted Optical Microscope WF10X 22mm For Cell Observation And Cultivation

M13117 Series Biological Microscope Configuration

Items Specification M13117A M13117B
Eyepiece WF10×／22mm (adjustable) ●● ●●
LWD Infinity Plan Objectives LPlanFL 4×／0.11, W.D.=12.1mm ○ ○
LPlanFL 10×／0.25, W.D.=10.3mm ● ●
LPlanFL 20×／0.45, W.D.=5.8mm ● ●
LPlanFL 40×／0.65, W.D.=5.1mm ● ●
LWD Infinity Plan Phase Contrast Objectives LPlanFL PHP 4×／0.10, W.D.=9.2mm ○ ○
LPlanFL PHP 10×／0.25, W.D.=10.3mm ○ ○
LPlanFL PHP 20×／0.45, W.D.=5.8mm ● ●
LPlanFL PHP 40×／0.65, W.D.=5.1mm ○ ○
Annular Spot 10×/20×/ 40× ● ●
4× ○ ○
Seidentopf Trinocular Head

Inclined 45°, interpupilary distance: 48-76mm

Light distribution (both): 100: 0(100% for eyepiece)

80:20 (80% for trinocular head, and 20% for eyepiece)

 ● ●
Seidentopf Trinocular Head

Inclined 45°, interpupilary distance: 48-76mm

Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head)

 ○ ○
Nosepiece Quintuple ● ●
Mechanical Stage Stage size: X×Y: 210×241mm, Round slide size:Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y:128×80mm.) ● ●
Culture Dish Holder 65mm ○ ○
54mm ● ●
35mm ○ ○
blood cell counter ○ ○
Condenser

Long working distance, Quickly detachable , N.A.0.3,

Working distance: 72mm (with condenser), 195mm (without condenser).

 ● ●
Koehler Illumination 6V/30W (input voltage:100V～240V) ● ●
5WLED,input voltage:100V～240V ○ ○
Filter Blue ● ●
Green ● ●
Amber /Grey ○ ○
C-mount 1 X /0.5X /0.75X C-Mount (focus adjustable) ○ ○

Epi Fluorescence

Illumination

 Epi fluorescence media unit , field diaphragm,center adjustable. ●
100W mercury lamp ,5WLED(input voltage:100V～240V) ●
B, G, V, UV fluorescence filters can be chosen ●

Note: ● means current configuration ○ means optional

Packing Size: 660mm×590mm×325mm

Gross Weight: 18 kgs

Net Weight: 13.5 kgs
