50X 1000X Inverted Metallurgical Microscope Dark Field Polarizing Observation

Specifications

Brand Name :

Phidix

Model Number :

M13116

Certification :

IATF16949，CE

Place of Origin :

China

MOQ :

Negotiable

Price :

Negotiable

Payment Terms :

L/C, D/A, D/P, T/T, Western Union

Supply Ability :

1000 PCS/Month

Delivery Time :

15-20 Work Days

Packaging Details :

Carton

Color :

White

Drawtube :

Binocular

Theory :

Metallurgical Microscope

Application :

Machinery, Electronics, Plastics etc.

Eyepiece :

WF10X/20mm

Magnification :

50X-1000X

Objective :

5X, 10X, 20X, 50X

Nosepiece :

4 Holes Nosepiece

Focusing :

Coaxial Coarse And Fine Adjustment

Illumination :

12V/50W Halogen

Description

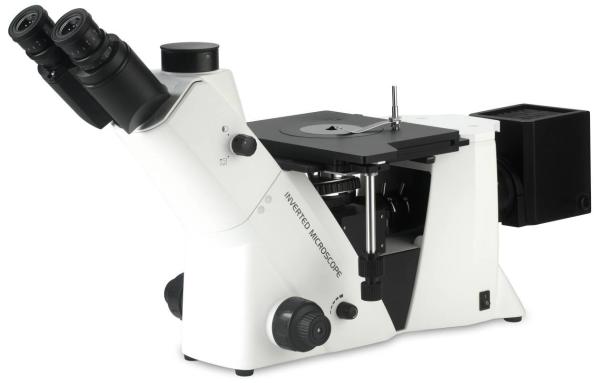

New R&D 50X-1000X Inverted Metallurgical Microscope Combinated With Bright field, Dark Field And Polarizing Observation

M13116 New R&D 50X-1000X Inverted Metallurgical Microscope Combinated With Bright field, Dark Field And Polarizing Observation. Combinated with bright field, dark field and polarizing observation, this series inverted microscope are widely used in metal, mineral, electronic industry.

Features:

New research and new development.

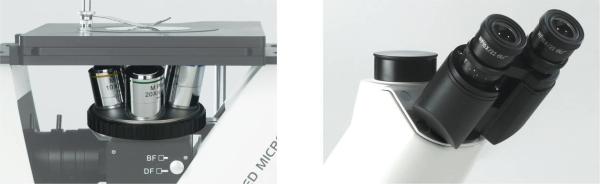

Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.
Oversize view field eyepiece, view field up to 22mm for comfortable observation.

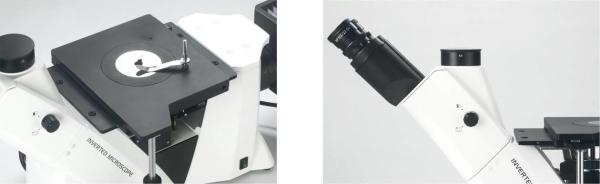

Oversized three-layer working stage, more choice for samples.
Light distribution (both): 100 : 0 (100% for eyepiece), 80 : 20 (80% for trinocular head and 20% for eyepiece).

Item	Specification		M13116A	M13116B
Eyepiece	WF10×／22mm(adjustable)		●	●
Eyepiece	WF10×／22mm(adjustable,reticule 0.1mm)		●	●
Metallurgical LWD Infinity Plan Objectives	LMPlan FL 5×/0.15 (Semi Apochromatic Objective)	W.D.=21.00mm	●	○
	LMPlan FL 10× /0.30 (Semi Apochromatic Objective)	W.D.= 20.00mm	●	○
	LMPlan FL 20× /0.40 (Semi Apochromatic Objective)	W.D.= 15.00mm	●	○
	LMPlan FL 50× /0.55 (Semi Apochromatic Objective)	W.D.= 10.00mm	●	○
	LPL 80×／0.80	W.D.= 0.85mm	○	○
	LMPlan FL 100×0.85 (Dry) (Semi Apochromatic Objective)	W.D.= 3.00mm	○	○
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field	M PLAN 5×／0.13 BD	W.D=7.30mm		●
	M PLAN 10×／0.25 BD	W.D.= 11.5mm		●
	M PLAN 20×／0.40 BD	W.D.= 5.60mm		●
	M PLAN 50×／0.70 BD	W.D.= 1.60mm		●
Seidentopf Trinocular Head	Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0(100% for eyepiece) 80:20(80% for trinocular head, and 20% for eyepiece)		●	●
Nosepiece	Quintuple		●
Nosepiece	Quadplex(specially for bright /dark field objectives)			●
Mechanical Stage	Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm		●	●
Coaxial Coarse and Fine Focusing unit	Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm.		●	●
Polarizing Unit	Polarizer /Analyzer		●	●
Illumination	12V/50W Halogen(Input voltage:100V～240V)		●	●
Illumination	5WLED lamp (Input voltage:100V～240V)		○	○
Filter	Blue		●	●
Filter	Green/ Amber/ Grey		○	○
C-mount	1×/0.75×/0.5×C-Mount (focus adjustable)		○	○
Adaptor for Digital Photograph	Use for CANON／NIKON／OLYMPUS etc.		○	○

Note: ● means standard, ○ means optional

New research and new development.

Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.
